Can the Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2 be used with pneumatic tools without damaging the screw housing?

No . Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2 should not be installed with pneumatic tools. The product description explicitly warns that exceeding the specified tightening torque will bend the screw housing, and therefore the use of pneumatic tools for installation is not recommended. Use hand tools with a hexagonal head (flat wrench, socket wrench or adjustable wrench) and adhere to the recommended torque to avoid damage.

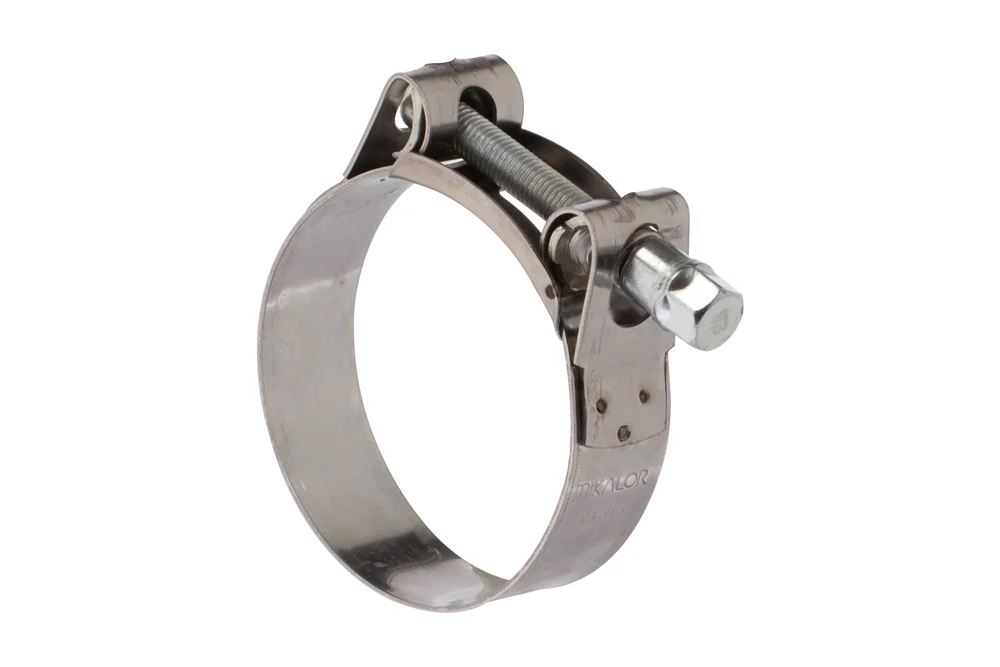

Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2

Q: What is the maximum working pressure for the Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2?

The maximum working pressure for the Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2 is up to 45 bar, depending on the type of hose and the clamp diameter.

Q: Is the W4 version of the Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2 suitable for marine and food industry use?

Yes. The Heavy-duty screw clamp with movable bridge for heavy loads SUPRA HEAVY DUTY W2. W4 version is suitable for marine and food industry use. It is made entirely of stainless steel for high corrosion resistance, designed for demanding applications, and manufactured in accordance with the RoHS Directive 2002/95/EC. The clamp provides uniform sealing around the circumference, secure three-point welded band, high-strength screw with spacer and half-rollers for reliable pressure, and is intended for environments where corrosion resistance is essential (marine and food). Note: do not exceed specified tightening torque or use pneumatic tools; exceeding torque can bend the screw housing.

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

High-quality, strong clamp with a hinged closure for heavy loads with turned-up edges of the band, recommended for securing thick-walled, reinforced industrial hoses and pipes. The unique design ensures uniform pressure around the entire circumference, providing optimal sealing. The movable bridge allows for multiple installations without the need to remove the hose. Manufactured in accordance with the RoHS Directive 2002/95/EC. Three-point welds on the band, a high-strength screw with a spacer along with securing half-rollers guarantee maximum and reliable pressure. The clamp features markings on the band for minimum and maximum diameter as well as the material from which it is made. The W4 version of the clamp is made entirely of stainless steel and is intended for demanding applications where high corrosion resistance is essential – for marine applications and in the food industry. Thanks to the hexagonal head of the screw, commonly used tools such as flat wrenches, socket wrenches, and adjustable wrenches can be used. Important! Exceeding the tightening torque value will cause the screw housing to bend; the use of pneumatic tools for installation is not recommended. The band and bridge are made of AISI 430 steel, while the screw and rollers are made of galvanized steel. The maximum working pressure of up to 45 bar depends on the type of hose and the diameter of the clamp.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03019012	SUPRA HEAVY-DUTY clamp 17÷19 mm, width 18 mm, W2	-	-	In stock	Enquiry
AB-03019020	SUPRA HEAVY-DUTY clamp 19÷21 mm, width 18 mm, W2	-	-	In stock	Enquiry
AB-03019039	SUPRA HEAVY-DUTY clamp 21÷23 mm, width 18 mm, W2	-	-	In stock	Enquiry
AB-03019047	SUPRA HEAVY-DUTY clamp 23÷25 mm, width 18 mm, W2	-	-	In stock	Enquiry
AB-03019055	SUPRA HEAVY-DUTY clamp 25÷27 mm, width 18 mm, W2	-	-	In stock	Enquiry
AB-03019063	SUPRA HEAVY-DUTY clamp 27÷29 mm, width 18 mm, W2	-	-	In stock	Enquiry
AB-03019071	SUPRA HEAVY-DUTY clamp 29÷31 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019080	SUPRA HEAVY-DUTY clamp 31÷34 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019098	SUPRA HEAVY-DUTY clamp 34÷37 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019100	SUPRA HEAVY-DUTY clamp 37÷40 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019119	SUPRA HEAVY-DUTY clamp 40÷43 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019127	SUPRA HEAVY-DUTY clamp 43÷47 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019135	SUPRA HEAVY-DUTY clamp 47÷51 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019143	SUPRA HEAVY-DUTY clamp 51÷55 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019151	SUPRA HEAVY-DUTY clamp 55÷59 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019160	SUPRA HEAVY-DUTY clamp 59÷63 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019178	SUPRA HEAVY-DUTY clamp 63÷68 mm, width 20 mm, W2	-	-	In stock	Enquiry
AB-03019186	SUPRA HEAVY-DUTY clamp 68÷73 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019194	SUPRA HEAVY-DUTY clamp 73÷79 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019207	SUPRA HEAVY-DUTY clamp 79÷85 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019215	SUPRA HEAVY-DUTY clamp 85÷91 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019223	SUPRA HEAVY-DUTY clamp 91÷97 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019231	SUPRA HEAVY-DUTY clamp 97÷104 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019240	SUPRA HEAVY-DUTY clamp 104÷112 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019258	SUPRA HEAVY-DUTY clamp 112÷121 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019266	SUPRA HEAVY-DUTY clamp 121÷130 mm, width 25 mm, W2	-	-	In stock	Enquiry
AB-03019274	SUPRA HEAVY-DUTY clamp 130÷140 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019282	SUPRA HEAVY-DUTY clamp 140÷150 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019290	SUPRA HEAVY-DUTY clamp 150÷162 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019303	SUPRA HEAVY-DUTY clamp 162÷174 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019311	SUPRA HEAVY-DUTY clamp 174÷187 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019320	SUPRA HEAVY-DUTY clamp 187÷200 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019338	SUPRA HEAVY-DUTY clamp 200÷213 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019346	SUPRA HEAVY-DUTY clamp 213÷226 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019354	SUPRA HEAVY-DUTY clamp 226÷239 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019362	SUPRA HEAVY-DUTY clamp 239÷252 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019370	SUPRA HEAVY-DUTY clamp 252÷265 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019392	SUPRA HEAVY-DUTY clamp 278÷291 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019403	SUPRA HEAVY-DUTY clamp 291÷304 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019411	SUPRA HEAVY-DUTY clamp 304÷317 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019422	SUPRA HEAVY-DUTY clamp 330÷343 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019433	SUPRA HEAVY-DUTY clamp 343÷356 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019444	SUPRA HEAVY-DUTY clamp 356÷369 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019455	SUPRA HEAVY-DUTY clamp 369÷382 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019477	SUPRA HEAVY-DUTY clamp 265÷278 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019485	SUPRA HEAVY-DUTY clamp 317÷330 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019499	SUPRA HEAVY-DUTY clamp 382÷395 mm, width 28 mm, W2	-	-	In stock	Enquiry
AB-03019500	SUPRA HEAVY-DUTY clamp 395÷408 mm, width 28 mm, W2	-	-	In stock	Enquiry
