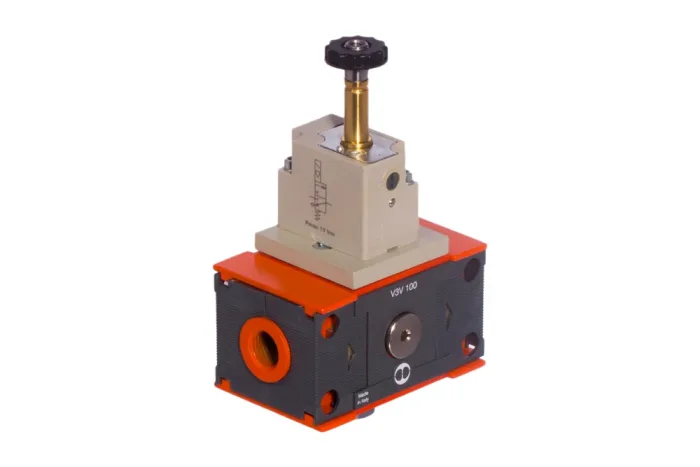

Electric shut-off valve, V3V 100, 200 SKILLAIR® series, with end plates
Electric shut-off valve V3V, SKILLAIR® series, with end plates, is used to separate the working system from the supply air. It is a normally closed, three-way valve. In the closed position, it cuts off the supply air while simultaneously venting the system, making it particularly useful during maintenance work. Size: 100, 200. Supply pressure: up to 10 bar. Operating temperature: up to +50°C. Connection: GW BSP 1/4″ to 3/8″. Flow rate: 1650 l/min (at inlet pressure 6 bar Δp = 1 bar).
Do you need a larger quantity of products or a bespoke quote?
Electric shut-off valve V3V, SKILLAIR® series, with end plates, is used to separate the working system from the supply air. It is a normally closed, three-way valve. In the closed position, it cuts off the supply air while simultaneously venting the system, making it particularly useful during maintenance work. Size: 100, 200. Supply pressure: up to 10 bar. Operating temperature: up to +50°C. Connection: GW BSP 1/4″ to 3/8″. Flow rate: 1650 l/min (at inlet pressure 6 bar Δp = 1 bar).
Additional information
| Maximum operating temperature [°C] | 50 |
|---|
