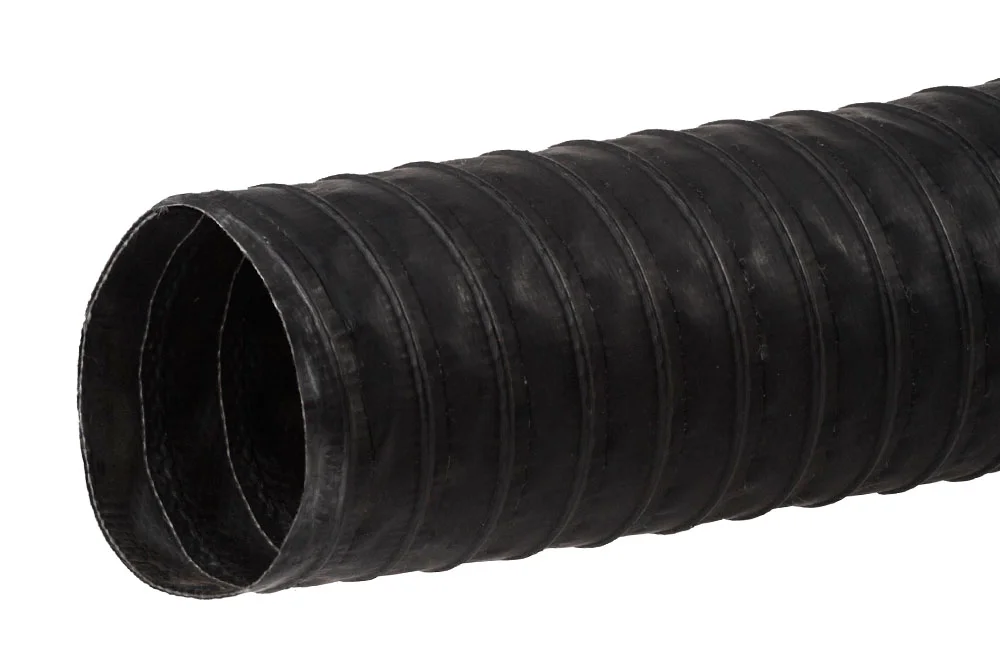

Hose ducting for discharge vapours and dusts in spaces hazardous explosion P2HL
Light, very flexible and pliable hose intended for discharge vapours paints, solvents, contaminants air and dusts in spaces hazardous explosion. used also for conveying air in plants biogas. permanently antistatic (R ≤10 8 Ω), compliant with the standard technical TRGS 727 and the standard TRAS120 for plants biogas. resistant to hydrolysis and corrosion biological. retains flexibility in low temperatures, flame-retardant – Meets the requirements of standards DIN 4102 B1 regarding properties fire materials construction. On special order available also other diameter in the scope 20 ÷ 800 mm. Checking chemical resistance – the chemical resistance table for PCV (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. Hose material: fabric polyester impregnated black PVC. Wall thickness: 0.4 mm. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +80°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Light, very flexible and pliable hose intended for discharge vapours paints, solvents, contaminants air and dusts in spaces hazardous explosion. used also for conveying air in plants biogas. permanently antistatic (R ≤10 8 Ω), compliant with the standard technical TRGS 727 and the standard TRAS120 for plants biogas. resistant to hydrolysis and corrosion biological. retains flexibility in low temperatures, flame-retardant – Meets the requirements of standards DIN 4102 B1 regarding properties fire materials construction. On special order available also other diameter in the scope 20 ÷ 800 mm. Checking chemical resistance – the chemical resistance table for PCV (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. Hose material: fabric polyester impregnated black PVC. Wall thickness: 0.4 mm. Reinforcement: spiral with wire steel. Operating temperature: od -40°C up to +80°C.
Additional information
| Material | PEE – polyester |
|---|---|
| Maximum operating temperature [°C] | 80 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 2, 3 |
| Reinforcement | steel spiral |
