Is the Extended bent nozzle (series 105) made of nickel-plated brass suitable for use at 10 bar and temperatures between -10Â°C and +50Â°C?

Yes. The Extended bent nozzle (series 105) made of nickel-plated brass is specified for a maximum pressure of 10 bar and an operating temperature range of -10Â°C to +50Â°C. Given those specifications, it is suitable for use at 10 bar within the stated temperature range. Ensure you choose the correct length (110 mm, 160 mm, or 260 mm) and the M12x1.25 metric thread fits your application; also confirm compatibility with your air gun and operating conditions (e.g., media, vibration, and sealing) for safe, long-term use.

Can the Extended bent nozzle (series 105) made of nickel-plated brass with M12x1.25 thread and 3 mm hole be used safely in air guns?

Yes - the Extended bent nozzle (series 105) made of nickel-plated brass with M12x1.25 thread and 3 mm hole can be used safely in air guns, provided operating conditions stay within its specifications. Key points: - Maximum working pressure: 10 bar - ensure your air gunâs operating pressure does not exceed this. - Temperature range: â10Â°C to +50Â°C - avoid use outside these limits. - Tube diameter 5 mm and 3 mm hole are suitable for typical air flow, but confirm compatibility with your gunâs fittings and desired performance. - Material: nickel-plated brass is corrosion-resistant and mechanically suitable for general airgun use. If your air gun operates above 10 bar, at extreme temperatures, or requires different thread/diameter tolerances, do not use this nozzle. For critical applications, consult the gun manufacturer or a qualified technician.

Does the Extended bent nozzle, nickel-plated brass (series 105) with 5 mm tube and M12x1.25 fit standard air gun fittings?

Yes. the Extended bent nozzle, nickel-plated brass, series 105 (M12x1.25, 5 mm tube) fits standard air gun fittings that accept an M12x1.25 metric thread. The nozzleâs thread specification (M12x1.25) is the key compatibility feature; if your air gun or fitting is designed for M12x1.25 threads, the part will thread on correctly. Note the nozzle has a 3 mm outlet hole and a 5 mm supply tube, and is rated to 10 bar operating pressure and â10Â°C to +50Â°C. If your air gun uses a different thread standard (e.g., imperial or a different metric pitch) or requires a different tube diameter, youâll need an adapter or a different nozzle.

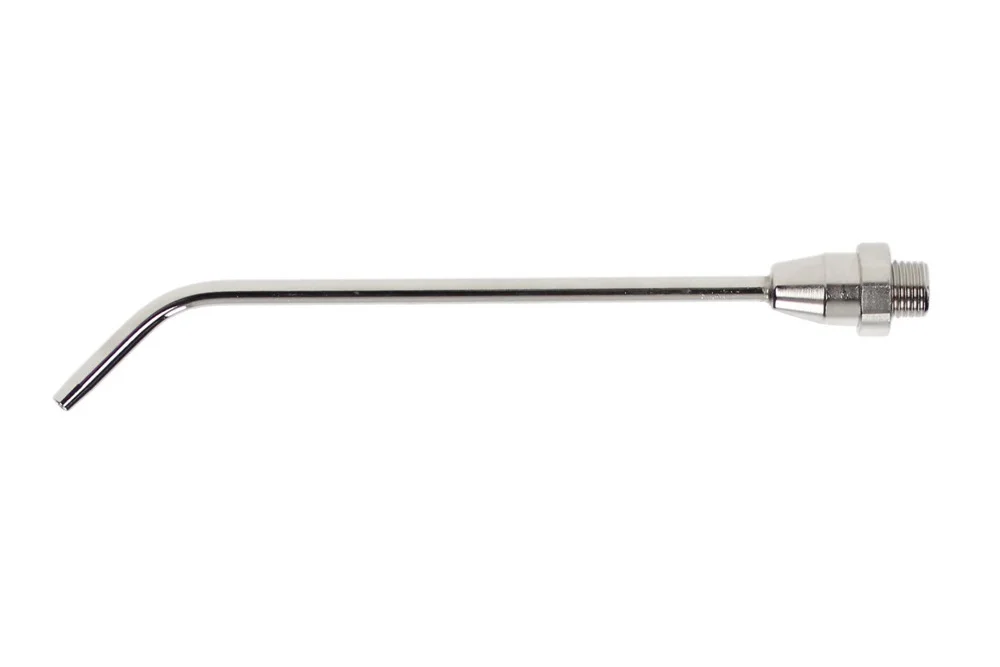

Extended bent nozzle, nickel-plated brass, series 105

Air guns, All products/

Additional information

Extended bent nozzle with a hole diameter of 3 mm for air guns, finished with a metric thread M12x1.25. Tube diameter: 5 mm. Available lengths: 110 mm, 160 mm, and 260 mm. Material: nickel-plated brass. Maximum pressure: 10 bar. Operating temperature: from -10°C to +50°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-105K14A	Extended nozzle, bent, L=160 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry
EW-105K15A	Extended nozzle, bent, L=260 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry
EW-105K16A	Extended nozzle, bent, L=110 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Extended bent nozzle with a hole diameter of 3 mm for air guns, finished with a metric thread M12x1.25. Tube diameter: 5 mm. Available lengths: 110 mm, 160 mm, and 260 mm. Material: nickel-plated brass. Maximum pressure: 10 bar. Operating temperature: from -10°C to +50°C.
