Is the Extended straight nozzle, nickel-plated brass, series 105 compatible with other M12x1.25 threaded fittings and accessories?

Yes. The Extended straight nozzle, nickel-plated brass, series 105 uses a standard metric thread M12x1.25, so it is mechanically compatible with other fittings and accessories that share the same M12x1.25 specification. Its construction (nickel-plated brass), 5 mm tube diameter and available lengths (115, 165, 265, 415 mm) do not affect thread compatibility. However, ensure mating components are rated for the nozzleâs operating conditions (max 10 bar, -10Â°C to +50Â°C) and that internal diameters and sealing methods (e.g., O-rings, tapered vs. parallel seats) match to prevent leaks or flow restrictions.

Can the Extended straight nozzle, nickel-plated brass, series 105 withstand continuous use at 10 bar without performance loss?

Yes. The Extended straight nozzle, nickel-plated brass, series 105 is rated with a maximum pressure of 10 bar and an operating temperature range of -10Â°C to +50Â°C. Within these specified limits it is designed to withstand continuous use at 10 bar without performance loss, provided the nozzle is used as intended (air service), the thread and connections are properly installed (M12x1.25), and the tube dimensions (5 mm dia., appropriate length choice) are compatible with the system. Exceeding the stated pressure, temperature range, or exposing the nickel-plated brass to incompatible fluids or mechanical damage may reduce performance or life.

What cleaning and maintenance are recommended for the Extended straight nozzle, nickel-plated brass, series 105 to ensure longevity?

Recommended cleaning and maintenance for the Extended straight nozzle, nickel-plated brass, series 105 to ensure longevity: - Regular inspection: Check the nozzle before each use for visible dirt, wear, dents or thread damage. Inspect the 3 mm hole and 5 mm tube for obstructions. - Cleaning procedure: Blow compressed air (below max 10 bar) through the nozzle from the thread end to the tip to remove loose debris. If needed, soak in warm soapy water (mild detergent) and gently brush with a soft nylon brush; avoid abrasive tools that can scratch the nickel plating. Rinse thoroughly and dry completely before use. - Removing stubborn deposits: For mineral or oily deposits use isopropyl alcohol or a mild degreaser compatible with brass and nickel plating. Apply with a soft cloth or swab; avoid strong acids, chlorides, or ammonia-based cleaners that can corrode plating. - Thread and sealing maintenance: Keep the M12x1.25 thread clean and lightly lubricated with a thin film of appropriate anti-seize or light machine oil to prevent galling and corrosion. Wipe excess lubricant to avoid attracting dirt. - Corrosion prevention: Although nickel-plated, avoid prolonged exposure to moisture, salty air, or corrosive chemicals. Store dry and protected. - Temperature and pressure limits: Never exceed 10 bar or operate outside â10Â°C to +50Â°C; thermal or overpressure stress can damage plating and brass. - Mechanical care: Avoid bending, dropping, or striking the 5 mm tube; dents can restrict the 3 mm bore and affect fit. Use correct mounting torque on the M12x1.25 fitting to prevent distortion. - Periodic functional check: Verify free airflow through the 3 mm hole and proper sealing at connections. Replace the nozzle if plating is heavily worn, threads are damaged, or internal bore cannot be cleared. Following these steps will help maintain performance and extend the service life of the Extended straight nozzle, nickel-plated brass, series 105.

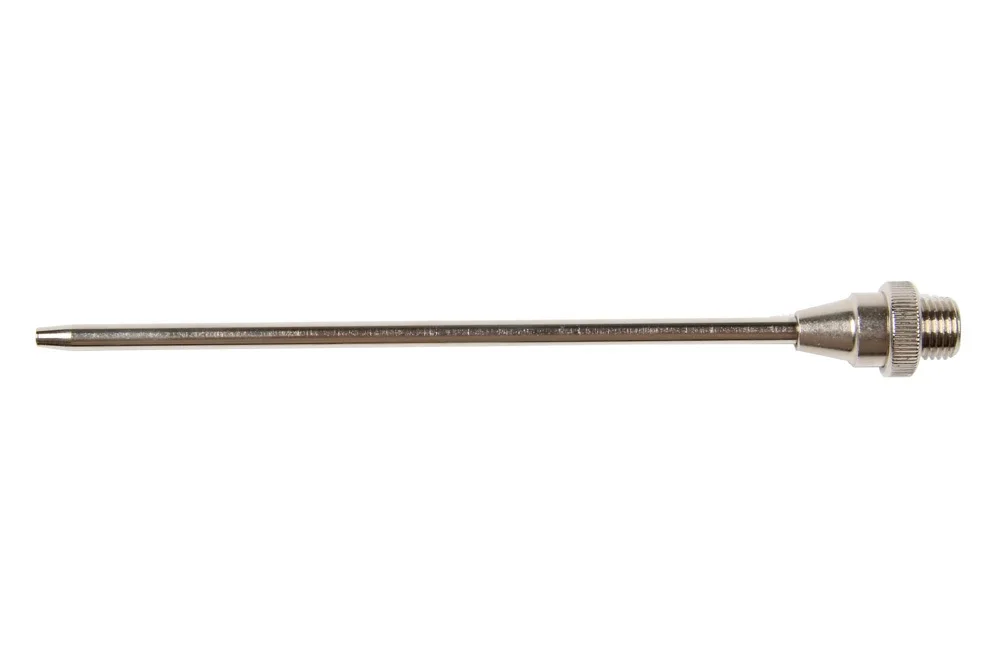

Extended straight nozzle, nickel-plated brass, series 105

Air guns, All products/

Additional information

Extended straight nozzle with a hole diameter of 3 mm for air guns, finished with a metric thread M12x1.25. Tube diameter: 5 mm. Available lengths: 115 mm, 165 mm, 265 mm, and 415 mm. Material: nickel-plated brass. Maximum pressure: 10 bar. Operating temperature: from -10°C to +50°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-105K103	Extended nozzle, straight, L=115 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry
EW-105K104	Extended nozzle, straight, L=165 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry
EW-105K105	Extended nozzle, straight, L=265 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry
EW-105K107	Extended nozzle, straight, L=415 mm, GZ M12x1.25, nickel-plated brass	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Extended straight nozzle with a hole diameter of 3 mm for air guns, finished with a metric thread M12x1.25. Tube diameter: 5 mm. Available lengths: 115 mm, 165 mm, 265 mm, and 415 mm. Material: nickel-plated brass. Maximum pressure: 10 bar. Operating temperature: from -10°C to +50°C.
