Is FLAT G spiral cover, galvanized steel suitable for preventing hose kinking and crushing while maintaining flexibility?

Yes. The FLAT G spiral cover, galvanized steel is suitable for preventing hose kinking and crushing while maintaining flexibility. Its steel tape construction provides strong mechanical protection against abrasion and external impacts that can cause crushing, and the spiral geometry resists localized deformation that leads to kinks. The 3 mm spacing between coils strikes a balance: close enough to support the hose and distribute loads to prevent sharp bends, yet open enough to allow the assembly to flex and follow movement without excessive stiffness. Galvanized steel adds corrosion resistance and long-term durability in many environments, preserving protective performance. Limitations: very sharp, repeated cyclic bending at extremely small radii may still eventually stress the hose; also, heavy external point loads or crushing beyond the design capacity could deform the spiral. For highly corrosive environments, consider additional coatings or alternative materials. Overall, for general protection against kinking, abrasion and moderate crushing while keeping flexibility, FLAT G spiral cover, galvanized steel is an appropriate choice.

Does the FLAT G spiral cover, galvanized steel resist corrosion in outdoor or marine environments?

The FLAT G spiral cover, galvanized steel offers basic corrosion resistance due to its galvanized coating, so it will perform reasonably well in outdoor environments where exposure is moderate (rain, humidity, occasional wetting). However, in harsh marine conditions-constant salt spray, high salinity, or prolonged immersion-the galvanization will corrode faster and the steel may eventually rust, reducing protection. For long-term use in marine or highly corrosive environments, consider stainless steel or additional protective coatings (e.g., marine-grade painting or PVC overwrap).

Can the FLAT G spiral cover, galvanized steel be cut to custom lengths without compromising protection?

Yes. the FLAT G spiral cover, galvanized steel can be cut to custom lengths without compromising protection, provided itâs done correctly. Key points: - Material and design: Made from galvanized steel tape with 3 mm spacing between coils, the spiralâs protection comes from the steel construction and overlapping coils that shield hoses from abrasion, bending and crushing. - Cutting: You can trim the spiral cover to length using suitable metal-cutting tools (e.g., metal shears, angle grinder with a cutting disc, or tin snips for thinner sections). Make clean, straight cuts to preserve the coil geometry and avoid creating sharp burrs. - Edge treatment: After cutting, deburr and smooth the cut edge (fileing or grinding) to remove sharp edges that could damage hoses or injure installers. Re-galvanize or apply a protective coating locally if the cut exposes bare steel and corrosion protection is required for the application. - Integrity: Cutting to length does not inherently reduce the FLAT G spiral cover, galvanized steelâs ability to protect hoses from abrasion, bending and crushing, as long as coil spacing and overall assembly remain intact and any sharp edges are addressed. - Installation tips: Ensure the trimmed end is secured (e.g., with end caps, clamps or properly overlapping the last coil) so the hoses are fully enclosed and the cover retains its mechanical protection. In summary, you may cut the FLAT G spiral cover, galvanized steel to custom lengths; do so with proper tools, deburring and corrosion protection to maintain full protective performance.

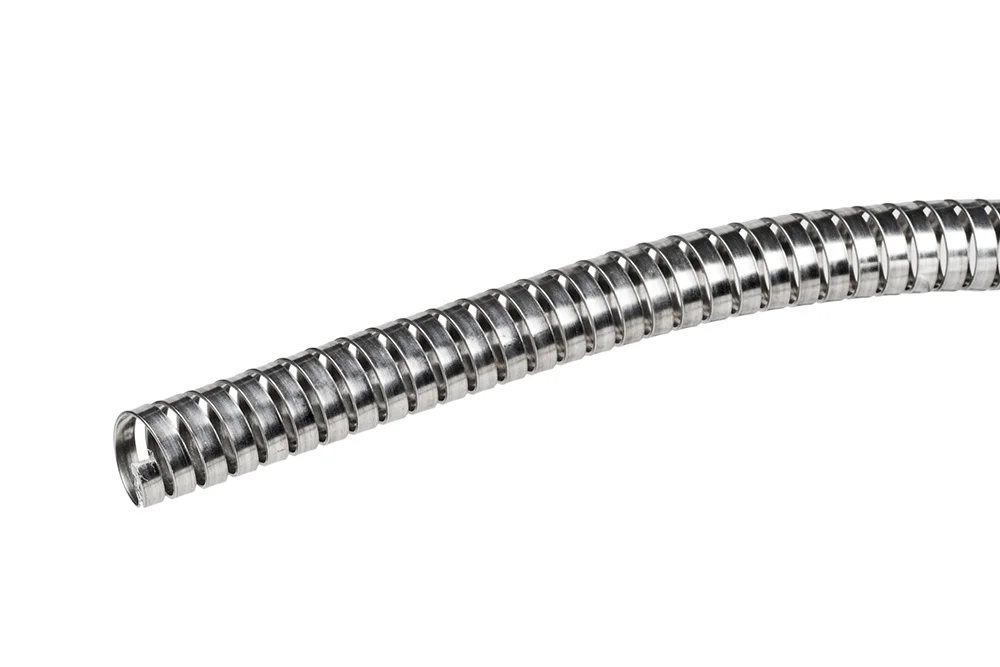

Cover spiral FLAT G, steel galvanized

All products, Covers/

Additional information

Standard length [m]	10, 20, 25

Cover spiral made with tape steel intended for securing hoses (cables) against abrasion, bending and crushing. gap between coils: 3 mm. Material: steel galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RF-GFLAT-16	Spiral cover FLAT-G dia. wew. 16 mm	-	-	In stock	Enquiry
RF-GFLAT-18	Spiral cover FLAT-G dia. wew. 18 mm	-	-	In stock	Enquiry
RF-GFLAT-20	Spiral cover FLAT-G dia. wew. 20 mm	-	-	In stock	Enquiry
RF-GFLAT-22	Spiral cover FLAT-G dia. wew. 22 mm	-	-	In stock	Enquiry
RF-GFLAT-24	Spiral cover FLAT-G dia. wew. 24 mm	-	-	In stock	Enquiry
RF-GFLAT-26	Spiral cover FLAT-G dia. wew. 26 mm	-	-	In stock	Enquiry
RF-GFLAT-28	Spiral cover FLAT-G dia. wew. 28 mm	-	-	In stock	Enquiry
RF-GFLAT-30	Spiral cover FLAT-G dia. wew. 30 mm	-	-	In stock	Enquiry
RF-GFLAT-32	Spiral cover FLAT-G dia. wew. 32 mm	-	-	In stock	Enquiry
RF-GFLAT-34	Spiral cover FLAT-G dia. wew. 34 mm	-	-	In stock	Enquiry
RF-GFLAT-38	Spiral cover FLAT-G dia. wew. 38 mm	-	-	In stock	Enquiry
RF-GFLAT-40	Spiral cover FLAT-G dia. wew. 40 mm	-	-	In stock	Enquiry
RF-GFLAT-42	Spiral cover FLAT-G dia. wew. 42 mm	-	-	In stock	Enquiry
RF-GFLAT-47	Spiral cover FLAT-G dia. wew. 47 mm	-	-	In stock	Enquiry
RF-GFLAT-52	Spiral cover FLAT-G dia. wew. 52 mm	-	-	In stock	Enquiry
RF-GFLAT-60	Spiral cover FLAT-G dia. wew. 60 mm	-	-	In stock	Enquiry
RF-GFLAT-68	Spiral cover FLAT-G dia. wew. 68 mm	-	-	In stock	Enquiry
RF-GFLAT-72	Spiral cover FLAT-G dia. wew. 72 mm	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Cover spiral made with tape steel intended for securing hoses (cables) against abrasion, bending and crushing. gap between coils: 3 mm. Material: steel galvanized.
