Can the Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel maintain a leak-free seal during large temperature fluctuations and hose shrinkage?

Yes. The Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel is designed to maintain a leak-free seal during large temperature fluctuations and hose shrinkage. The built-in compensation spring.a stack of 10 disc (washer) springs under the screw head.automatically adjusts the clamp diameter while keeping consistent radial grip, compensating for hose shrinkage from cold flow or thermal cycling. This spring action preserves sealing around the full circumference and prevents loosening-related leaks. Intended for heavier applications and significant temperature changes, the clamp also features an internal insert to protect the hose surface. Proper installation (screw end protruding beyond the housing and flattened disc springs) and correct tightening torque (nominal 8.5 Nm, max 14.1 Nm) are required to ensure optimal, leak-free performance.

How does the Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel compensate for hose shrinkage and temperature-induced changes?

The Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel compensates for hose shrinkage and temperature-induced changes using an integrated spring mechanism: under the screw head there is a stack of 10 disc (washer) springs that act as a resilient element. As the hose diameter reduces (due to cold flow, shrinkage, or thermal contraction) the springs compress or extend, allowing the clamp to automatically reduce its diameter while maintaining constant radial pressure and sealing around the hose. This prevents leaks across the entire circumference. Proper clamping is visible when the screw end protrudes beyond the lock housing and the disc springs are flattened. An internal insert protects the hose surface; recommended for large temperature variations and heavier applications. Installation torque: 8.5 Nm (max 14.1 Nm).

Is the Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel suitable for high-vibration applications?

Yes. The Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel is suitable for highâvibration applications. The builtâin spring pack (10 disc/washer springs under the screw head) provides continuous radial compensation, automatically maintaining clamp grip and seal despite dimensional changes from vibration, thermal cycling or material cold flow. This keeps sealing pressure around the entire hose circumference and helps prevent loosening or leaks under dynamic conditions. The stainless steel band and internal insert protect the hose, and correct installation (screw end protruding beyond the housing and flattened disc springs) plus tightening within specified torque (8.5 Nm, max 14.1 Nm) ensure reliable performance in heavier, highâvibration environments.

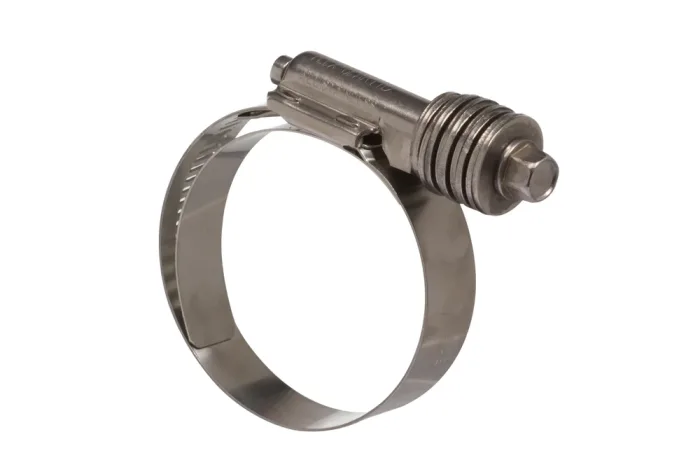

Band clamp with compensation spring FLEX-GEAR HD, 841 series, stainless steel

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

Band clamp with a worm drive equipped with a spring for compensating dimensional changes in the connection (shrinkage of the hose due to cold flow of the material or due to large temperature variations). The spring consists of a set of 10 disc springs (washer springs) – washers under the head of the screw. This ensures the maintenance of the clamp’s grip and sealing around the entire circumference of the hose, preventing leaks from the installation. The spring mechanism of the clamp allows for automatic adjustment of its diameter while maintaining the clamp’s grip. Particularly recommended in cases of large temperature changes for heavier applications. Proper clamping of the band is indicated by the screw end protruding beyond the housing of the lock and the flattened disc springs. The internal insert of the clamp protects the hose surface from damage. Installation tightening torque 8.5 Nm (max. 14.1 Nm). Material of the screw/lock: galvanized carbon steel. Material of the band: stainless steel 300. Band width: 16 mm (5/8″).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-841175	FLEX-GEAR HD band 25÷45 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-841200	FLEX-GEAR HD strap 32÷54 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841250	FLEX-GEAR HD band 45÷67 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841300	FLEX-GEAR HD band 57÷79 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841350	FLEX-GEAR HD strap 70÷92 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-841400	FLEX-GEAR HD strap 83÷105 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841450	FLEX-GEAR HD strap 95÷117 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-841500	FLEX-GEAR HD clamp 108÷130 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-841550	FLEX-GEAR HD strap 121÷143 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841600	FLEX-GEAR HD strap 133÷155 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841650	FLEX-GEAR HD strap 146÷168 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841700	FLEX-GEAR HD strap 159÷181 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841750	FLEX-GEAR HD strap 172÷193 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841800	FLEX-GEAR HD strap 184÷206 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841850	FLEX-GEAR HD strap 197÷219 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-841900	FLEX-GEAR HD strap 210÷232 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Band clamp with a worm drive equipped with a spring for compensating dimensional changes in the connection (shrinkage of the hose due to cold flow of the material or due to large temperature variations). The spring consists of a set of 10 disc springs (washer springs) – washers under the head of the screw. This ensures the maintenance of the clamp’s grip and sealing around the entire circumference of the hose, preventing leaks from the installation. The spring mechanism of the clamp allows for automatic adjustment of its diameter while maintaining the clamp’s grip. Particularly recommended in cases of large temperature changes for heavier applications. Proper clamping of the band is indicated by the screw end protruding beyond the housing of the lock and the flattened disc springs. The internal insert of the clamp protects the hose surface from damage. Installation tightening torque 8.5 Nm (max. 14.1 Nm). Material of the screw/lock: galvanized carbon steel. Material of the band: stainless steel 300. Band width: 16 mm (5/8″).
