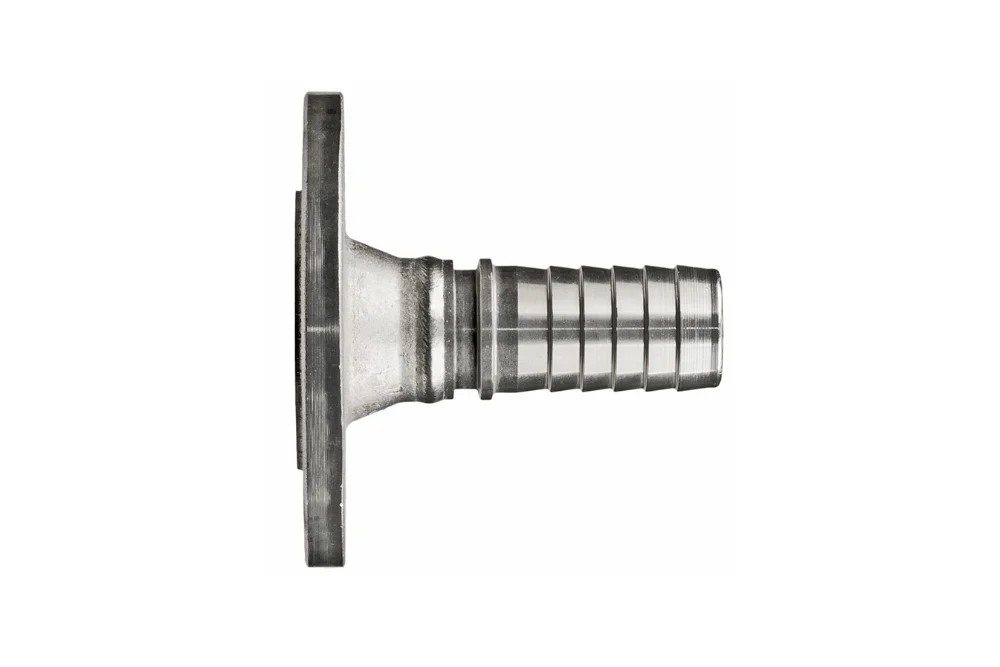

FSS fixed flange end for steam hose to EN 14473, galvanized steel
FSS end with a fixed flange, for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (EN 14423, DIN 2826, sizes 1/2” to 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American standards ASA (ASME) 150 PSI and 300 PSI. Material: galvanized steel. Working pressure: 18 bar (+210°C) for saturated steam and according to the working pressure of the respective flange class at this temperature; for other applications according to the working pressure for the respective flange class (e.g., PN40) – selection in contact with Tubes International.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
FSS end with a fixed flange, for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (EN 14423, DIN 2826, sizes 1/2” to 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American standards ASA (ASME) 150 PSI and 300 PSI. Material: galvanized steel. Working pressure: 18 bar (+210°C) for saturated steam and according to the working pressure of the respective flange class at this temperature; for other applications according to the working pressure for the respective flange class (e.g., PN40) – selection in contact with Tubes International.
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Standard length [m] | 30 |
