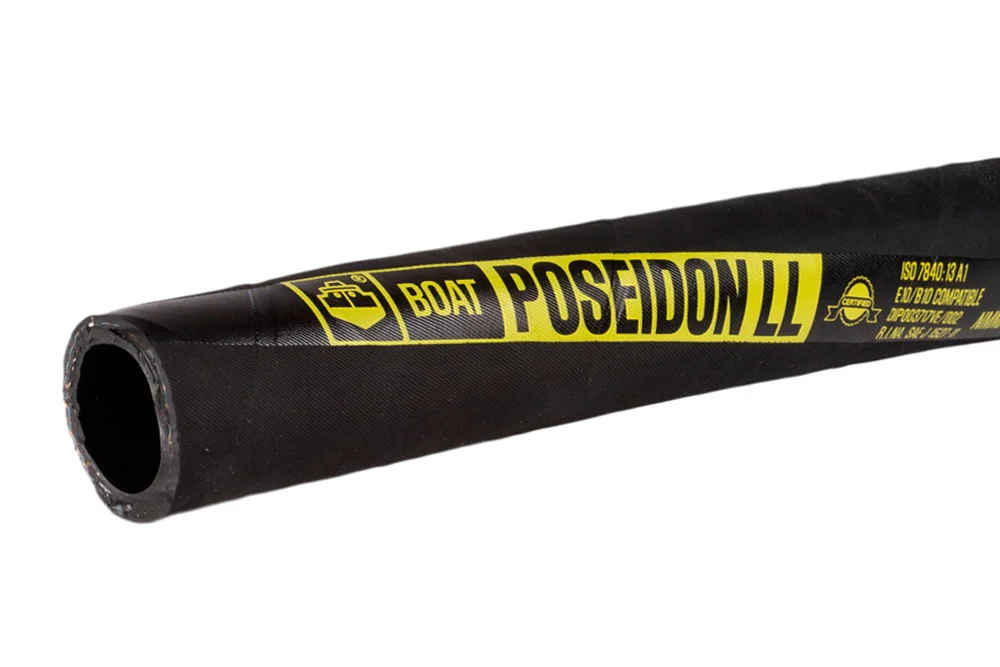

Hose for fuels for boats and yachts 10 bar POSEIDON, POSEIDON LL
Flexible, very pliable, hose for conveying gasoline and oil drive, fire-resistant, for small vessels – recreational boats up to 24 m long. hose o pressure working 10 bar, manufactured method mandrel. Intended for fuel systems of stationary engines on ships, motorboats, yachts etc.. Suitable for unleaded petrol, petrol with up to 10% ethanol added (E10 petrol), diesel oil and diesel oil with 10% FAME esters added (B10 – biodiesel). Compliant with ISO 7840 type A1 (fireproof, fuel vapour permeability less than or equal to 100 g/m2/24 h), compliant with directive 94/25/EC, RINA certified, compliant with SAE 1527, USCG type A1. Layer inner with black, smooth rubber synthetic, resistant to oils and fuels up to 50% content hydrocarbons aromatic. Reinforcement layers synthetic cord, a for hose POSEIDON LL additional spiral steel. Layer outer with black, self-extinguishing rubber synthetic, resistant oil and conditions atmospheric (resistance to fire: ISO 7840 Annex A: hose filled fuel should withstand flame through 2.5 min). POSEIDON : hose POSEIDON is soft a hose delivery without reinforcement spiral steel. the manufacturer recommended assembly hoses POSEIDON o diameter over 19 mm in installations in sections straight or o gentle (high) radius bends. hose is used in particular in installations filling tanks fuels boats. On special order Available hose POSEIDON o smaller diameters 6, 8.10.13.16 and 19 mm, o pressure working 10 bar. POSEIDON LL : hose POSEIDON LL has additional Reinforcement spiral steel, co ensures resistance to vacuum and kinking. hose is very pliable, its minimal radius bends corresponds only three times diameter internal and can be easily installed in tight spaces compartment engine boats. universal use and high quality hose make, that is on readily and often used through manufacturers greater yachts motor. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black synthetic rubber. Reinforcement: cord synthetic (POSEIDON); cord synthetic, steel spiral (POSEIDON LL). Outer layer: synthetic rubber. Working pressure: 10 bar. Operating temperature: od -30°C up to +100°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Flexible, very pliable, hose for conveying gasoline and oil drive, fire-resistant, for small vessels – recreational boats up to 24 m long. hose o pressure working 10 bar, manufactured method mandrel. Intended for fuel systems of stationary engines on ships, motorboats, yachts etc.. Suitable for unleaded petrol, petrol with up to 10% ethanol added (E10 petrol), diesel oil and diesel oil with 10% FAME esters added (B10 – biodiesel). Compliant with ISO 7840 type A1 (fireproof, fuel vapour permeability less than or equal to 100 g/m2/24 h), compliant with directive 94/25/EC, RINA certified, compliant with SAE 1527, USCG type A1. Layer inner with black, smooth rubber synthetic, resistant to oils and fuels up to 50% content hydrocarbons aromatic. Reinforcement layers synthetic cord, a for hose POSEIDON LL additional spiral steel. Layer outer with black, self-extinguishing rubber synthetic, resistant oil and conditions atmospheric (resistance to fire: ISO 7840 Annex A: hose filled fuel should withstand flame through 2.5 min). POSEIDON : hose POSEIDON is soft a hose delivery without reinforcement spiral steel. the manufacturer recommended assembly hoses POSEIDON o diameter over 19 mm in installations in sections straight or o gentle (high) radius bends. hose is used in particular in installations filling tanks fuels boats. On special order Available hose POSEIDON o smaller diameters 6, 8.10.13.16 and 19 mm, o pressure working 10 bar. POSEIDON LL : hose POSEIDON LL has additional Reinforcement spiral steel, co ensures resistance to vacuum and kinking. hose is very pliable, its minimal radius bends corresponds only three times diameter internal and can be easily installed in tight spaces compartment engine boats. universal use and high quality hose make, that is on readily and often used through manufacturers greater yachts motor. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black synthetic rubber. Reinforcement: cord synthetic (POSEIDON); cord synthetic, steel spiral (POSEIDON LL). Outer layer: synthetic rubber. Working pressure: 10 bar. Operating temperature: od -30°C up to +100°C.
Additional information
| Material | synthetic rubber |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | yes |
| Standard length [m] | 50, 60, 60 / 120 |
| Reinforcement | steel spiral, synthetic cover |
