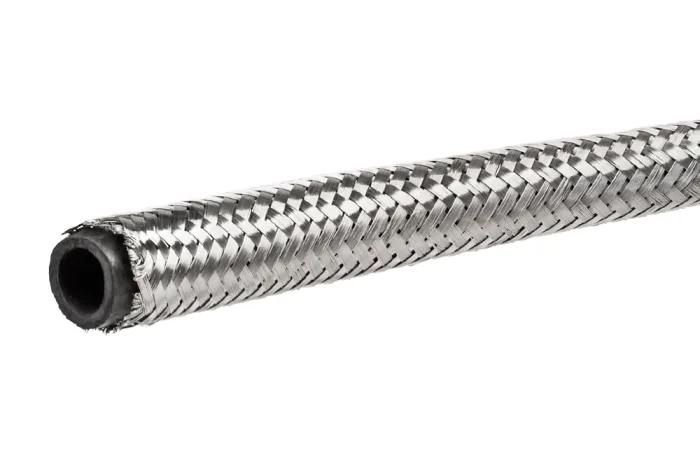

Stainless steel braided hose for fuel and oil systems PZVA

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-35

Vacuum resistance

no

Standard length [m]

2, 20, 25, 50

Reinforcement

steel wire mesh

Flexible, soft rubber hose with an external stainless steel braid, designed for gasoline and petroleum-based oils such as diesel, heating oil, and lubricating oil. Installed in fuel and oil systems of small vehicles and industrial equipment. Can also be used for water, cooling fluids, non-oxidizing detergents, and air. Based on the requirements of standard DIN 73379. Inner layer made of smooth black NBR rubber. The external reinforcing braid made of stainless steel provides high pressure resistance and is corrosion-resistant. Maximum operating temperature depends on the medium: for gasoline, unleaded gasoline, fuels with up to 50% aromatic hydrocarbon content: +40ºC; for diesel: +80ºC; for water and ethylene glycol-based cooling liquids: +90ºC; for air: +80ºC; for liquid, non-oxidizing detergents: +80ºC. Inner layer: black NBR rubber. Reinforcement: external wire braid made of stainless steel AISI 304. Working pressure: from 10 bar to 20 bar – depending on the hose diameter. Operating temperature: from -35°C to +80°C (maximum operating temperature depends on the medium).

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
EC-101356PZVA hose 5.5x10.5 mm, stainless steel braid620
EC-101358Hose PZVA 7.5x12.5 mm, stainless steel braid815
EC-101360PZVA hose 9x15 mm, stainless steel braid1015
EC-101362Hose PZVA 11.5x18 mm, stainless steel braid1215
EC-101364Hose PZVA 14.5x21 mm, stainless steel braid1415
EC-101365Hose PZVA 17.5x24.5 mm, stainless steel braid1815
EC-101368Hose PZVA 19x29 mm, stainless steel braid2010
EC-101370Hose PZVA 25x33 mm, stainless steel braid2510

Flexible, soft rubber hose with an external stainless steel braid, designed for gasoline and petroleum-based oils such as diesel, heating oil, and lubricating oil. Installed in fuel and oil systems of small vehicles and industrial equipment. Can also be used for water, cooling fluids, non-oxidizing detergents, and air. Based on the requirements of standard DIN 73379. Inner layer made of smooth black NBR rubber. The external reinforcing braid made of stainless steel provides high pressure resistance and is corrosion-resistant. Maximum operating temperature depends on the medium: for gasoline, unleaded gasoline, fuels with up to 50% aromatic hydrocarbon content: +40ºC; for diesel: +80ºC; for water and ethylene glycol-based cooling liquids: +90ºC; for air: +80ºC; for liquid, non-oxidizing detergents: +80ºC. Inner layer: black NBR rubber. Reinforcement: external wire braid made of stainless steel AISI 304. Working pressure: from 10 bar to 20 bar – depending on the hose diameter. Operating temperature: from -35°C to +80°C (maximum operating temperature depends on the medium).

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-35

Vacuum resistance

no

Standard length [m]

2, 20, 25, 50

Reinforcement

steel wire mesh
