Can the GT swivel coupling with GW/GZ BSP, nickel-plated steel, type 1000 operate continuously at temperatures up to +200Â°C and pressures between 20â50 bar?

Yes. The GT swivel coupling with GW/GZ BSP, nickel-plated steel, type 1000 can operate continuously at temperatures up to +200Â°C and at working pressures in the 20â50 bar range, provided the following conditions are met: the application involves slow rotational or oscillating movement (as the joint is designed for slow rotations/oscillations), the correct joint size is selected to match the required pressure (working pressure depends on joint size), and PTFE sealing is compatible with the conveyed medium at the stated temperature and pressure. Ensure installation follows manufacturer guidelines and verify joint size and seal compatibility for your specific service to guarantee reliable continuous operation.

Is the GT swivel coupling with GW/GZ BSP, nickel-plated steel, type 1000 suitable for oscillating movements with PTFE seals at pressures of 20â50 bar?

Yes. The GT swivel coupling with GW/GZ BSP, nickel-plated steel, type 1000 is suitable for oscillating movements with PTFE seals at pressures of 20â50 bar. The rotary joint type 1000 is designed for rotational and oscillating movements, uses nickel-plated steel construction with PTFE sealing, and is rated for working pressures from 20 to 50 bar (depending on size) and temperatures up to +200Â°C. Ensure you select the correct joint size for the required pressure and application specifics.

Does the GT swivel coupling with GW/GZ BSP, nickel-plated steel, type 1000 support connections to both rigid and flexible hoses under rotational movement?

Yes. The GT swivel coupling with GW/GZ BSP, nickel-plated steel, type 1000 is designed for connection of rigid or flexible hoses where there is rotational movement or oscillation between installation parts. It supports slow and oscillating rotations, uses BSP female/male connections, is nickelâplated steel with PTFE sealing, operates up to +200Â°C and at working pressures from 20 to 50 bar (depending on size).

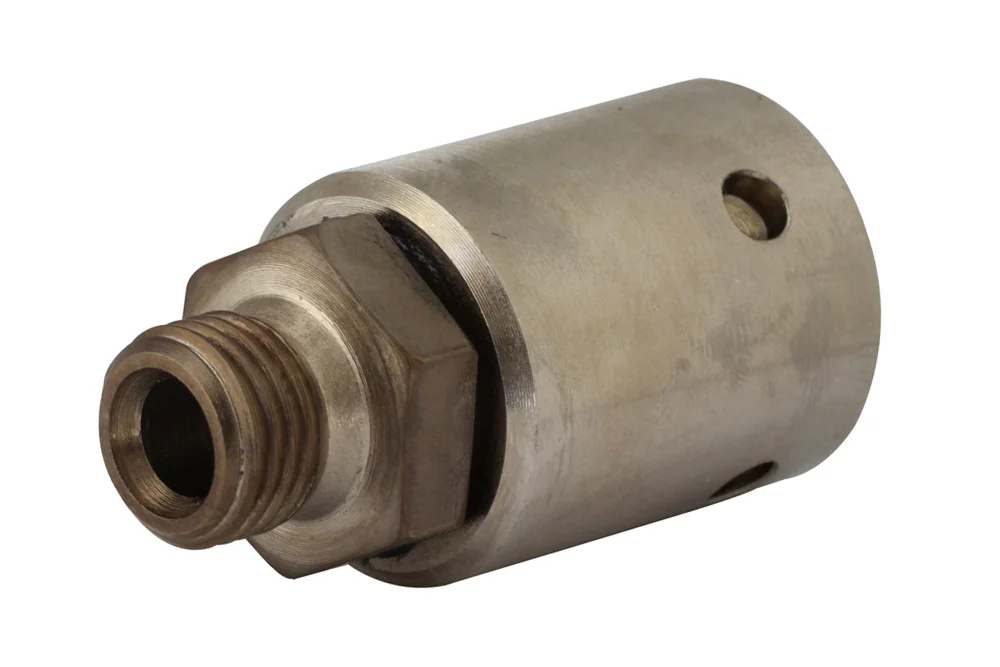

Swivel coupling GT with female thread/BSP male, steel nickel-plated, type 1000

All products, Rotary unions/

Additional information

Material	CS – steel (cast iron)

Swivel coupling type 1000 intended for connections rigid or flexible lines, everywhere tam, where occurs movement swivel or oscillations between individual parts installation. Material: steel nickel-plated. sealing: PTFE. Operating temperature: up to +200°C. Connection: BSP female, BSP male. rotation: free, swing. Working pressure: from 20 bar to 50 bar (depending on the coupling size).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GT-1013-K	Coupling swivel 1013 K 1/4" BSP, nickel-plated steel	-	50	In stock	Enquiry
GT-1017-K	Coupling swivel 1017 K 3/8" BSP, nickel-plated steel	-	50	In stock	Enquiry
GT-1021-K	Coupling swivel 1021 K 1/2" BSP, nickel-plated steel	-	50	In stock	Enquiry
GT-1027-K	Coupling swivel 1027 K 3/4" BSP, nickel-plated steel	-	50	In stock	Enquiry
GT-1034-K	Coupling swivel 1034 K 1" BSP, nickel-plated steel	-	30	In stock	Enquiry
GT-1042-K	Coupling swivel 1042 K 1.1/4" BSP, nickel-plated steel	-	30	In stock	Enquiry
GT-1049-K	Coupling swivel 1049 K 1.1/2" BSP, nickel-plated steel	-	30	In stock	Enquiry
GT-1060-K	Coupling swivel 1060 K 2" BSP, nickel-plated steel	-	20	In stock	Enquiry
GT-1076-K	Coupling swivel 1076 K 2.1/2" BSP, nickel-plated steel	-	20	In stock	Enquiry
GT-1090-K	Coupling swivel 1090 K 3" BSP, nickel-plated steel	-	20	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Swivel coupling type 1000 intended for connections rigid or flexible lines, everywhere tam, where occurs movement swivel or oscillations between individual parts installation. Material: steel nickel-plated. sealing: PTFE. Operating temperature: up to +200°C. Connection: BSP female, BSP male. rotation: free, swing. Working pressure: from 20 bar to 50 bar (depending on the coupling size).
