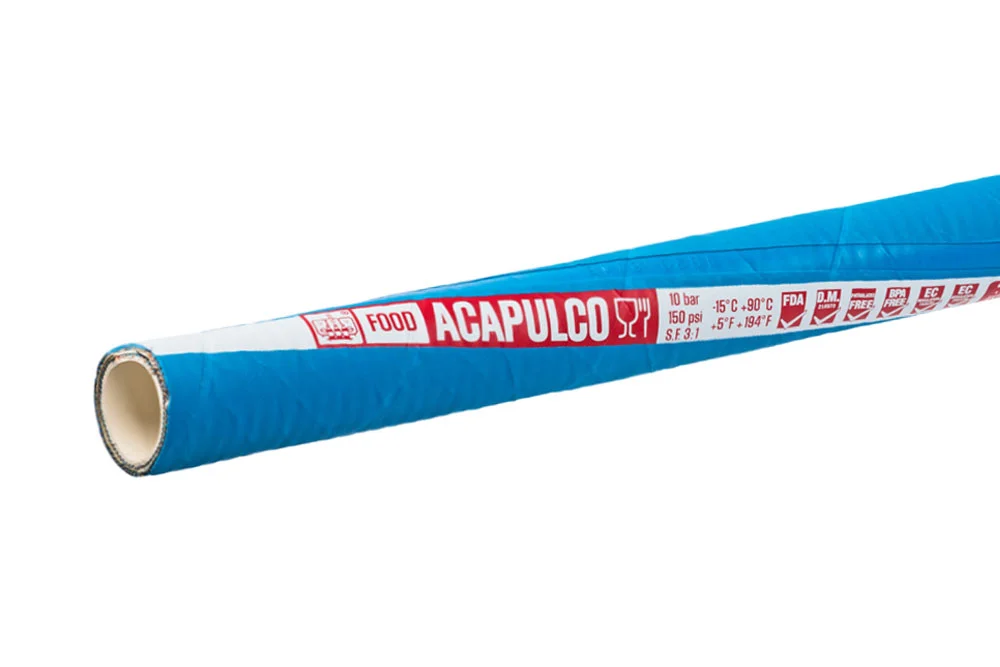

ACAPULCO® greasy food hose

Additional information

Material

PVC/NBR – a mixture of PVC and NBR

Maximum operating temperature [°C]

90

Minimum operating temperature [°C]

-15

Vacuum resistance

yes

Standard length [m]

30, 40, 50, 60, 60 / 120

Reinforcement

steel spiral, synthetic cover

Strong suction and discharge hose with thick walls, designed for the transfer of food substances requiring the use of odorless and tasteless rubber. It contains no phthalates or bisphenol A. The hose is specially designed for the transfer of oils and fats. Widely used in the oil and fat industry. The outer layer is resistant to grease and aging. Standards and requirements: Food industry, food contact 1935/2004/EC and 2023/2006/EC (GMP). The inner layer complies with FDA 21 CFR 177.2600, D.M. 21/03/73. Inner layer: white NBR/PVC rubber. Reinforcement: two layers of synthetic cord, steel spiral. Outer layer: blue smooth CR rubber. Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: -15°C to +90°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-ACAPULCO-019ACAPULCO hose 19x31 mm2010In stock
Enquiry
IV-ACAPULCO-025ACAPULCO hose 25x37 mm2510In stock
Enquiry
IV-ACAPULCO-032ACAPULCO hose 32x44 mm3210In stock
Enquiry
IV-ACAPULCO-038ACAPULCO hose 38x52 mm3810In stock
Enquiry
IV-ACAPULCO-051ACAPULCO hose 51x67 mm5010In stock
Enquiry
IV-ACAPULCO-063ACAPULCO hose 63.5x79.5 mm6510In stock
Enquiry
IV-ACAPULCO-076ACAPULCO hose 76x94 mm7510In stock
Enquiry
IV-ACAPULCO-102ACAPULCO hose 102x122 mm10010In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Strong suction and discharge hose with thick walls, designed for the transfer of food substances requiring the use of odorless and tasteless rubber. It contains no phthalates or bisphenol A. The hose is specially designed for the transfer of oils and fats. Widely used in the oil and fat industry. The outer layer is resistant to grease and aging. Standards and requirements: Food industry, food contact 1935/2004/EC and 2023/2006/EC (GMP). The inner layer complies with FDA 21 CFR 177.2600, D.M. 21/03/73. Inner layer: white NBR/PVC rubber. Reinforcement: two layers of synthetic cord, steel spiral. Outer layer: blue smooth CR rubber. Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: -15°C to +90°C.

Additional information

Material

PVC/NBR – a mixture of PVC and NBR

Maximum operating temperature [°C]

90

Minimum operating temperature [°C]

-15

Vacuum resistance

yes

Standard length [m]

30, 40, 50, 60, 60 / 120

Reinforcement

steel spiral, synthetic cover
