Hydraulic adapter – JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404

Q: Is the Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 compatible with standard BSP and BSPT hose fittings?

Yes. Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 is compatible with standard BSP and BSPT hose fittings. Its design includes an internal BSP thread (sealing on an inverted 60Â° cone) and an external BSPT thread (sealing on the thread), specifically intended to join hydraulic hoses and pipes to pumps, valves, quick couplings and other installation components. It allows reduction of thread type and size while maintaining proper sealing methods for BSP (cone) and BSPT (tapered thread), and is made of carbon steel with galvanised finish for typical hydraulic system use. Ensure matching thread sizes and sealing faces on the mating fittings when installing.

Q: Can the Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 be used in high-pressure hydraulic systems?

Yes. The Hydraulic adapter - JIS Toyota reduction with swivel nut GW BSP x GZ BSPT, carbon steel, type A404 is designed for highâpressure hydraulic systems. Its construction (carbon steel, galvanized) and JIS A404 design with internal BSP (60Â° inverted cone) and external BSPT (thread sealing) make it suitable for connecting hoses, pipes and components like pumps, valves and quick couplings under high pressure. Ensure you match the adapterâs size, thread types and pressure rating to your system specifications and follow manufacturer pressure limits and installation torque to maintain safe, leakâfree operation.

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

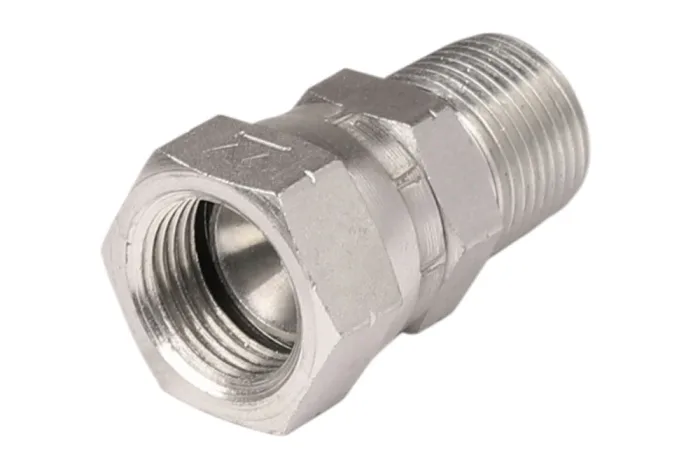

High-pressure adaptor JIS type A404 with internal BSP thread (sealing inverted cone 60°) – TOYOTA and with external BSPT thread (sealing on the thread). Used in hydraulic power systems for connecting hydraulic flexible hoses and pipes with other installation components (pumps, valves, quick couplings, etc.). Allows for reduction of type and size, compatible with the connections of the joined components. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A404-04-04	Adaptor GW BSP 1/4" JIS / GZ BSPT 1/4"	-	345	In stock	Enquiry
TI-A404-06-06	Adaptor GW BSP 3/8" JIS / GZ BSPT 3/8"	-	250	In stock	Enquiry
TI-A404-08-08	Adaptor GW BSP 1/2" JIS / GZ BSPT 1/2"	-	225	In stock	Enquiry
TI-A404-12-12	Adaptor GW BSP 3/4" JIS / GZ BSPT 3/4"	-	200	In stock	Enquiry
TI-A404-16-16	Adaptor GW BSP 1" JIS / GZ BSPT 1"	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adaptor JIS type A404 with internal BSP thread (sealing inverted cone 60°) – TOYOTA and with external BSPT thread (sealing on the thread). Used in hydraulic power systems for connecting hydraulic flexible hoses and pipes with other installation components (pumps, valves, quick couplings, etc.). Allows for reduction of type and size, compatible with the connections of the joined components. Material: carbon steel, galvanized.
