Is the Hydraulic adapter - reduction GW BSP with swivel nut / GZ METRIC, carbon steel, type A606 suitable for connecting hoses with different thread standards (BSP to metric)?

Yes. The Hydraulic adapter - reduction GW BSP with swivel nut / GZ METRIC, carbon steel, type A606 is suitable for connecting hoses with different thread standards (BSP to metric). The product description specifies an internal BSP thread with a swivel nut (60Â° cone sealing) and an external metric thread (60Â° cone sealing), so it is expressly designed to join BSP and metric threaded components. It is intended for hydraulic power systems to connect flexible hoses and pipes to pumps, valves, quick couplings, etc., and allows reduction in type and size, making it compatible with the different connection standards of the joined components. Material: carbon steel, galvanized, appropriate for typical hydraulic use. Ensure thread sizes and pressure ratings match your system and use proper sealing practice.

Can the Hydraulic adapter - reduction GW BSP with swivel nut / GZ METRIC, carbon steel, type A606 withstand high-pressure hydraulic system vibrations?

Hydraulic adapter - reduction GW BSP with swivel nut / GZ METRIC, carbon steel, type A606 is designed for use in hydraulic power systems to connect hoses, pipes, pumps, valves and quick couplings, with 60Â° cone sealing both internally and externally. Its carbon steel construction (galvanized) and swivel nut allow secure connections and some allowance for movement. However, the description alone does not specify rated pressure, vibration endurance, or fatigue resistance. While carbon steel and cone seals are suitable for many high-pressure applications and swivel nuts help accommodate misalignment, suitability for high-pressure vibrations depends on explicit pressure rating, vibration testing, correct installation, hose/pipe compatibility and torque settings. Verify the adapterâs maximum working pressure and any vibration certification from the manufacturer and ensure installation follows recommended torque and support practices before using in a high-pressure vibrating system.

What maintenance is required for the Hydraulic adapter - reduction GW BSP with swivel nut / GZ METRIC, carbon steel, type A606?

Hydraulic adapter - reduction GW BSP with swivel nut / GZ METRIC, carbon steel, type A606 requires the following maintenance to ensure safe, leakâfree operation and long service life: 1. Regular inspection - Visual check for external damage, corrosion of the galvanized carbon steel, cracks or deformation of the swivel nut and threads. - Inspect sealing cone faces (60Â°) for nicks, scratches or wear that could cause leaks. - Verify thread integrity of BSP internal and metric external threads; remove any debris. 2. Cleaning - Clean threads and sealing surfaces with a lintâfree cloth and appropriate solvent compatible with carbon steel plating (avoid aggressive chemicals that strip galvanization). - Remove dirt, metal shavings and hydraulic fluid residues before assembly. 3. Lubrication and protection - Apply a thin film of compatible antiâseize or assembly lubricant on threads to prevent galling and corrosion, taking care not to contaminate hydraulic fluid. - If long storage or corrosive environment, add rust inhibitor suitable for galvanized surfaces. 4. Torque and assembly checks - Assemble using correct tightening method and recommended torque for the size and thread type; avoid excessive torque that can deform the 60Â° cone sealing surfaces. - Ensure proper alignment to prevent crossâthreading; handâstart threads before final tightening. 5. Leak testing - After installation or maintenance, perform pressure and leak tests at operating pressure to confirm sealing integrity. 6. Replacement criteria - Replace the adapter if sealing faces are damaged, threads are worn or deformed, swivel nut binds or leaks persist after proper assembly. - Replace if significant corrosion compromises mechanical strength or galvanization is lost. 7. Compatibility and contamination control - Use only with compatible hose/pipe fittings and fluids specified for carbon steel components. - Follow hydraulic system filtration and flushing procedures when replacing or servicing fittings to avoid contamination. Perform these checks at regular maintenance intervals consistent with system operating hours, pressure cycles and environmental conditions.

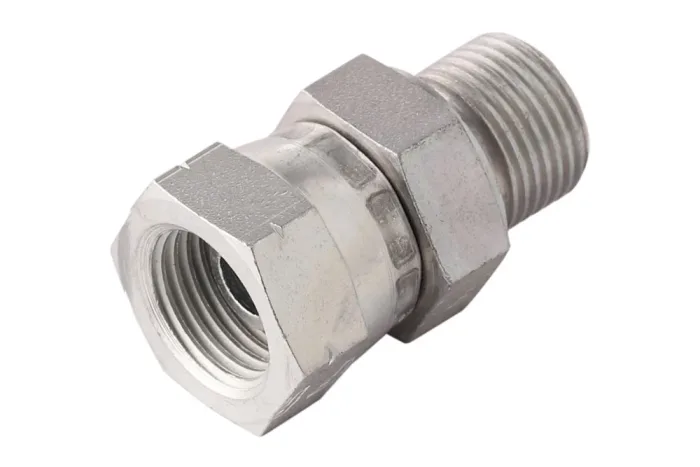

Adapter hydraulic – reducer BSP female with a swivel nut / metric male, carbon steel, type A606

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adapter with BSP female thread with a swivel nut (60° cone sealing) and metric male thread (60° cone sealing). Used in power hydraulic systems to connect flexible hydraulic hoses and pipes to other components of the installation (pumps, valves, quick couplings, etc.). It allows the type and size to be reduced to match the connections of the components being joined. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A606-06-18	Adapter 3/8" BSP female / M18x1.5 male	-	400	In stock	Enquiry
TI-A606-08-18	Adapter 1/2" BSP female / M18x1.5 male	-	350	In stock	Enquiry
TI-A606-08-22	Adapter 1/2" BSP female / M22x1.5 male	-	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter with BSP female thread with a swivel nut (60° cone sealing) and metric male thread (60° cone sealing). Used in power hydraulic systems to connect flexible hydraulic hoses and pipes to other components of the installation (pumps, valves, quick couplings, etc.). It allows the type and size to be reduced to match the connections of the components being joined. Material: carbon steel, galvanized.
