Can the Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T be used interchangeably with standard BSPT/BSP fittings in hydraulic systems?

Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T can often be used with standard BSPT/BSP fittings in hydraulic systems, but interchangeability depends on several factors: 1. Thread type and sealing method: This adapter has an external BSPT thread that seals on the thread (tapered seal) and an internal BSP thread with a 60Â° cone seal. It will mate correctly only with components that use compatible BSPT taper male threads on the external side and BSP 60Â° cone female or male counterparts on the internal side. Do not attempt to pair the BSPT tapered thread with parallel BSP (BSPP) threads or metric/NPT threads. 2. Size and reduction: The adapter is designed to reduce between sizes/types. Ensure the nominal sizes you need match the adapterâs specified GZ (male) and GW (female) sizes; incorrect size pairing can leak or fail under pressure. 3. Pressure rating and material: Made of carbon steel, galvanized, it is suitable for typical hydraulic pressures if its pressure rating meets or exceeds system requirements. Verify the adapterâs pressure rating and compatibility with the fluid, temperature, and environment. 4. Swivel nut function: The swivel nut allows easier assembly without twisting the hose, but correct installation torque and proper sealing (use of sealant or PTFE where appropriate for BSPT threads per manufacturer guidance) are required. Conclusion: Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T can be used interchangeably with standard BSPT/BSP fittings only when thread types (BSPT taper and BSP 60Â° cone), sizes, and pressure/material specifications match the mating components. If any of these differ (BSPP, NPT, wrong sizes, insufficient pressure rating), do not substitute.

Is the Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T suitable for high-pressure hydraulic hose assemblies?

Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T is suitable for high-pressure hydraulic hose assemblies when used within its intended application: it features an external BSPT thread with thread seal and an internal BSP 60Â° cone seal plus a swivel nut, is made of carbon steel and galvanized for corrosion resistance, and is designed for connecting hoses, pipes and components (pumps, valves, quick couplings). Suitability for a specific high-pressure system depends on matching its pressure rating, hose and fitting sizes, thread types, and compatibility with hydraulic fluid and temperature. Verify the adapterâs maximum working pressure, torque/specs for seal integrity, and manufacturer specifications before use.

How do I install the Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T to ensure proper sealing?

To ensure proper sealing when installing the Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T, follow these steps: 1. Inspect parts - Check male BSPT external thread for damage and clean threads of dirt, oil and debris. - Check female BSP (60Â° cone) and swivel nut for burrs, cracks or contamination. - Verify thread sizes and that the adapter type A104T matches both components. 2. Prepare sealing surfaces - BSPT (tapered) seal: use appropriate thread sealant rated for hydraulic systems and carbon steel (PTFE paste or anaerobic pipe sealant). Do not use PTFE tape alone on high-pressure tapered threads where paste is specified. - Cone seat: ensure the 60Â° cone on the female part and the matching cone on the adapter are clean and undamaged; do not apply sealant on the cone surfaceâcone relies on metal-to-metal contact. 3. Apply thread sealant - Apply a thin, even layer of compatible sealant to the male BSPT threads only, avoiding the first thread to prevent contamination of the system. Follow manufacturer cure/assembly time. - Do not coat the 60Â° cone area. 4. Assembly procedure - Hand-start the adapter into the male BSPT fitting to avoid cross-threading. - Tighten by hand until snug. - Using a wrench on the hex flats of the adapter or on the swivel nut where appropriate, tighten to the recommended torque or number of turns: for tapered BSPT, typically 1â1.5 turns past hand-tight (follow specific fitting torque tables if available). - Align the swivel nut onto the female BSP cone fitting and tighten until the cone seats firmly against the 60Â° seat. The cone must seat without gaps; the nut should not be over-tightened to avoid damaging the cone. 5. Final checks - After assembly, pressurize the system gradually and inspect for leaks at both the BSPT thread and the cone seat. - If leakage occurs at the threaded joint, depressurize, disassemble, clean, reapply sealant and reassemble. - If leakage occurs at the cone seat, check for damaged seating surfaces; replace the adapter or mating part if necessary. 6. Safety and compatibility - Use sealants and materials rated for the system pressure, fluid type and temperature. - Do not mix incompatible sealants or coatings. Ensure galvanization and carbon steel are suitable for the hydraulic fluid and environment. Following these steps will ensure a correct metal-to-metal cone seal on the internal BSP and a reliable thread seal on the external BSPT for the Hydraulic adapter - reduction from GZ BSPT x GW BSP with swivel nut, carbon steel, type A104T.

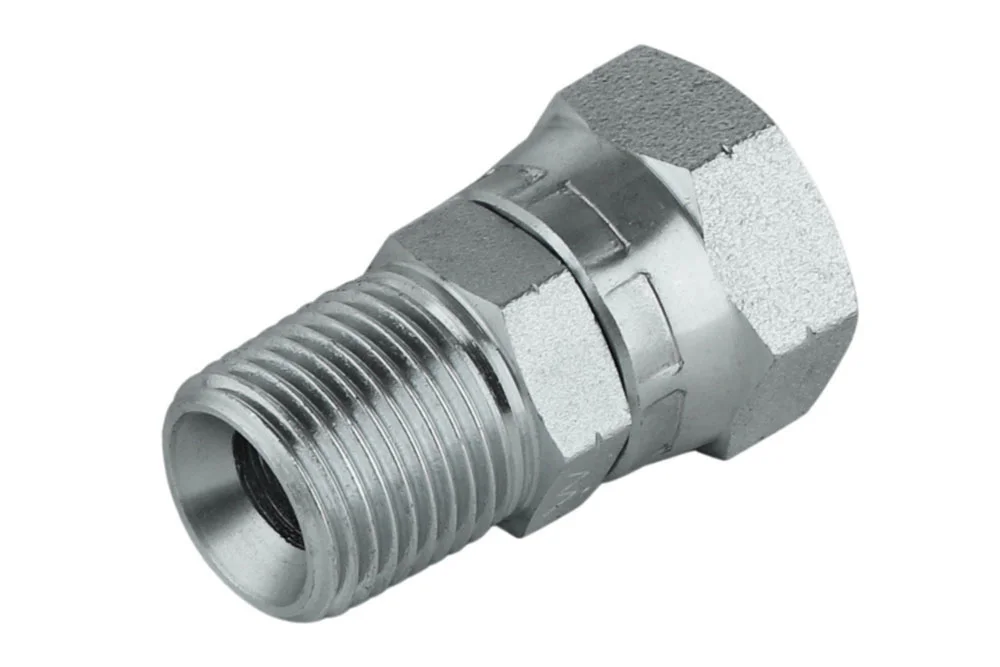

Adapter hydraulic – reducer with BSPT male x BSP female with a swivel nut, carbon steel, type A104T

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adapter with BSPT male thread (thread sealing) and with BSP female thread (60° cone sealing), with a swivel nut. Used in power hydraulic systems to connect flexible hydraulic hoses and pipes to other components of the installation (pumps, valves, quick couplings, etc.). It allows the type and size to be reduced to match the connections of the components being joined. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A104T-02-02	Adapter 1/8" BSPT male / 1/8" BSP female	-	350	In stock	Enquiry
TI-A104T-04-04	Adapter 1/4" BSPT male / 1/4" BSP female	-	350	In stock	Enquiry
TI-A104T-06-06	Adapter 3/8" BSPT male / 3/8" BSP female	-	250	In stock	Enquiry
TI-A104T-06-08	Adapter 3/8" BSPT male / 1/2" BSP female	-	225	In stock	Enquiry
TI-A104T-08-06	Adapter 1/2" BSPT male / 3/8" BSP female	-	225	In stock	Enquiry
TI-A104T-08-08	Adapter 1/2" BSPT male / 1/2" BSP female	-	225	In stock	Enquiry
TI-A104T-12-12	Adapter 3/4" BSPT male / 3/4" BSP female	-	200	In stock	Enquiry
TI-A104T-16-16	Adapter 1" BSPT male / 1" BSP female	-	160	In stock	Enquiry
TI-A104T-20-20	Adapter 1.1/4" BSPT male / 1.1/4" BSP female	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter with BSPT male thread (thread sealing) and with BSP female thread (60° cone sealing), with a swivel nut. Used in power hydraulic systems to connect flexible hydraulic hoses and pipes to other components of the installation (pumps, valves, quick couplings, etc.). It allows the type and size to be reduced to match the connections of the components being joined. Material: carbon steel, galvanized.
