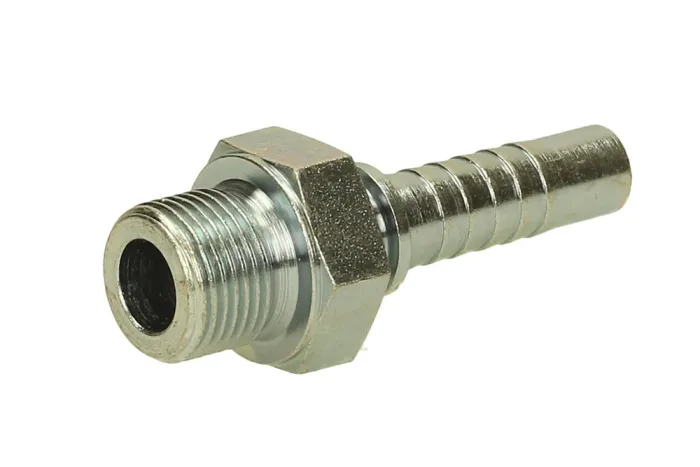

AGR-F hydraulic end, type ZBZ140, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	15, 2, 7.5

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with external BSP thread, flat sealing – requires the use of an additional flat gasket (AGR-F). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Catalogue
TI-ZBZ140-04-04	End. GZ 1/4" BSP, hose 1/4", butt	6	-
TI-ZBZ140-06-04	End. GZ 3/8" BSP, hose 1/4", butt joint	6	-
TI-ZBZ140-06-05	End. GZ 3/8" BSP, hose 5/16", butt joint	8	-	-
TI-ZBZ140-06-06	End. GZ 3/8" BSP, hose 3/8", butt joint	10	-
TI-ZBZ140-08-05	End. GZ 1/2" BSP, hose 5/16", butt joint	8	-
TI-ZBZ140-08-06	End. GZ 1/2" BSP, hose 3/8", butt joint	10	-
TI-ZBZ140-08-08	End. GZ 1/2" BSP, hose 1/2", butt	12	-
TI-ZBZ140-10-10	End. GZ 5/8" BSP, hose 5/8", butt joint	16	-	-
TI-ZBZ140-12-08	End. GZ 3/4" BSP, hose 1/2", butt weld	12	-
TI-ZBZ140-12-10	End. GZ 3/4" BSP, hose 5/8", butt joint	16	-
TI-ZBZ140-12-12	End. GZ 3/4" BSP, hose 3/4", butt joint	20	-
TI-ZBZ140-12-16	End. GZ 3/4" BSP, hose 1", butt	25	-
TI-ZBZ140-16-10	End. GZ 1" BSP, hose 5/8", face-to-face	16	-
TI-ZBZ140-16-12	End. GZ 1" BSP, hose 3/4", butt joint	20	-
TI-ZBZ140-16-16	End. GZ 1" BSP, hose 1", butt joint	25	-	-
TI-ZBZ140-20-16	End. GZ 1.1/4" BSP, hose 1", butt joint	25	-
TI-ZBZ140-32-20	End. GZ 2" BSP, hose 1.1/4", butt joint	32	-
TI-ZBZ140-32-32	End. GZ 2" BSP, hose 2", butt joint	50	-

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with external BSP thread, flat sealing – requires the use of an additional flat gasket (AGR-F). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
