Does the AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH) require Teflon tape or liquid sealant for BSPT thread sealing?

Yes. The AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH) can be sealed in two ways depending on the mounting chosen: - If you use the BSPT external thread for sealing, you must use a thread sealant such as PTFE (Teflon) tape or a suitable liquid thread sealant . the product description specifies sealing on the thread using Teflon tape or liquid sealant. - Alternatively, if you use the 60Â° cone sealing face (conical seat) option, thread sealant is not used for the metal-to-metal cone seal; proper tightening to the specified torque and a correct cone face are required instead. So: use Teflon tape or liquid sealant when relying on the BSPT thread seal; omit sealant when sealing on the 60Â° cone.

Can AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH) be sealed on the 60Â° cone instead of using Teflon tape on the BSPT thread?

Yes - AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH) can be sealed on the 60Â° cone instead of using Teflon tape on the BSPT thread, provided the mating fitting accepts cone sealing. The product description explicitly notes possible sealing on a 60Â° cone (AGR-K) as an alternative to thread sealing (Teflon tape or liquid sealant). Ensure the counterpart has a matching 60Â° cone seat, surfaces are clean and undamaged, and assembly torque follows manufacturer specs to avoid leakage or galling on AISI 316. For crimped hose assemblies use the correct crimping sleeve marked â-PH.â

Is AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH) compatible with other thread sealants besides PTFE tape?

Yes. AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH) is compatible with other thread sealants besides PTFE (Teflon) tape. Key points: - The product description states sealing can be done âusing Teflon tape or liquid sealant,â so approved liquid thread sealants are acceptable for the external BSPT thread. - For metal-to-metal sealing on the 60Â° cone option, rely on the cone surface seal; do not use a liquid sealant on the cone face unless the manufacturer explicitly permits it. - Use only sealants rated for hydraulic systems and compatible with AISI 316 stainless steel and the hydraulic fluid in your system (e.g., mineral oil, synthetic fluids). Common alternatives: anaerobic threadlockers/sealants (fluid-compatible grades), pipe joint compounds formulated for hydraulic use, and PTFE-based liquid sealants. - Avoid sealants that contain aggressive solvents, chlorine, or incompatible additives that can corrode stainless steel or contaminate the hydraulic fluid. - Follow curing/assembly instructions for the chosen sealant, and ensure proper torque and thread engagement. If the sleeve is marked â-PH,â use the specified crimping sleeve and procedure for PH hoses. If you need product-specific recommendations, provide the hydraulic fluid type and operating temperature/pressure range.

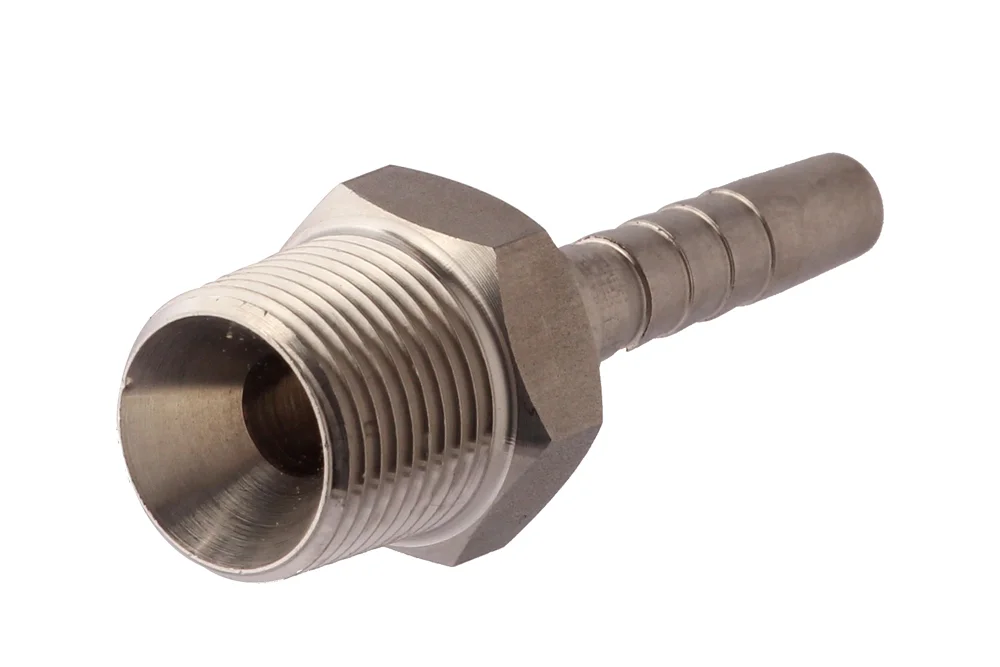

AGR-K hydraulic end, type ZBZ130, AISI 316 steel (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	15

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external BSPT thread, sealing on the thread using Teflon tape or liquid sealant; possible sealing on a 60° cone (AGR-K). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve, suitable for the type of hose (use sleeves additionally marked with the letters “-PH” at the end of the index). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBZ130-02-03-SS-PH	End. GZ 1/8" BSPT, hose 3/16", AISI 316	5		In stock	Enquiry
TI-ZBZ130-02-04-SS-PH	End. GZ 1/8" BSPT, hose 1/4", AISI 316	6		In stock	Enquiry
TI-ZBZ130-04-03-SS-PH	End. GZ 1/4" BSPT, hose 3/16", AISI 316	6	350	In stock	Enquiry
TI-ZBZ130-04-04-SS-PH	End. GZ 1/4" BSPT, hose 1/4", AISI 316	8	350	In stock	Enquiry
TI-ZBZ130-04-05-SS-PH	End. GZ 1/4" BSPT, hose 5/16", AISI 316	8	280	In stock	Enquiry
TI-ZBZ130-04-06-SS-PH	End. GZ 1/4" BSPT, hose 3/8", AISI 316	10	280	In stock	Enquiry
TI-ZBZ130-06-04-SS-PH	End. GZ 3/8" BSPT, hose 1/4", AISI 316	6	280	In stock	Enquiry
TI-ZBZ130-06-05-SS-PH	End. GZ 3/8" BSPT, hose 5/16", AISI 316	8	280	In stock	Enquiry
TI-ZBZ130-06-06-SS-PH	End. GZ 3/8" BSPT, hose 3/8", AISI 316	10	280	In stock	Enquiry
TI-ZBZ130-06-08-SS-PH	End. GZ 3/8" BSPT, hose 1/2", AISI 316	12	280	In stock	Enquiry
TI-ZBZ130-08-06-SS-PH	End. GZ 1/2" BSPT, hose 3/8", AISI 316	10	280	In stock	Enquiry
TI-ZBZ130-08-08-SS-PH	End. GZ 1/2" BSPT, hose 1/2", AISI 316	12	280	In stock	Enquiry
TI-ZBZ130-08-12-SS-PH	End. GZ 1/2" BSPT, hose 3/4", AISI 316	25	280	In stock	Enquiry
TI-ZBZ130-12-08-SS-PH	End. GZ 3/4" BSPT, hose 1/2", AISI 316	12	280	In stock	Enquiry
TI-ZBZ130-12-10-SS-PH	End. GZ 3/4" BSPT, hose 5/8", AISI 316	16	280	In stock	Enquiry
TI-ZBZ130-12-12-SS-PH	End. GZ 3/4" BSPT, hose 3/4", AISI 316	20	280	In stock	Enquiry
TI-ZBZ130-12-16-SS-PH	End. GZ 3/4" BSPT, hose 1", AISI 316	25	280	In stock	Enquiry
TI-ZBZ130-16-12-SS-PH	End. GZ 1" BSPT, hose 3/4", AISI 316	20	280	In stock	Enquiry
TI-ZBZ130-16-16-SS-PH	End. GZ 1" BSPT, hose 1", AISI 316	25	280	In stock	Enquiry
TI-ZBZ130-20-20-SS-PH	End. GZ 1.1/4" BSPT, hose 1.1/4", AISI 316	32	210	In stock	Enquiry
TI-ZBZ130-24-24-SS-PH	End. GZ 1.1/2" BSPT, hose 1.1/2", AISI 316	38	185	In stock	Enquiry
TI-ZBZ130-32-32-SS-PH	End. GZ 2" BSPT, hose 2", AISI 316	50	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external BSPT thread, sealing on the thread using Teflon tape or liquid sealant; possible sealing on a 60° cone (AGR-K). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve, suitable for the type of hose (use sleeves additionally marked with the letters “-PH” at the end of the index). Material: AISI 316 steel.
