Can AGR hydraulic end, type ZBZ110, carbon steel, Y be used with BSP-threaded hose fittings requiring a 60Â° sealing cone?

Yes. AGR hydraulic end, type ZBZ110, carbon steel, Y Format can be used with BSP-threaded hose fittings requiring a 60Â° sealing cone. The product description specifies an external BSP thread with a 60Â° sealing cone (AGR) and is designed for crimping into hydraulic and industrial hoses using an appropriate crimping sleeve. Material (carbon steel, galvanized) is suitable for standard hydraulic applications. Ensure you select the correct crimping sleeve and verify size/thread compatibility with your specific hose fitting before assembly.

AGR hydraulic end, type ZBZ110, carbon steel, Y

Q: Is the AGR hydraulic end, type ZBZ110, carbon steel, Y compatible with standard crimping sleeves for BSP-threaded hoses with a 60Â° sealing cone?

Yes. The AGR hydraulic end, type ZBZ110, carbon steel, Y Format is compatible with standard crimping sleeves for BSP-threaded hoses with a 60Â° sealing cone. The product description specifies an external BSP thread with a 60Â° sealing cone (AGR) and states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Made of carbon steel, galvanized, it is intended for standard crimping processes.use a sleeve matched to the hose construction and diameter and follow the hose and sleeve manufacturerâs crimp specifications.

Q: Does AGR hydraulic end, type ZBZ110, carbon steel, Y accept standard crimping sleeves for 60Â° cone BSP hose fittings?

Yes. AGR hydraulic end, type ZBZ110, carbon steel, Y accepts standard crimping sleeves for 60Â° cone BSP hose fittings. The product description states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose, with an external BSP thread and 60Â° sealing cone (AGR), and is made of carbon steel, galvanized. Ensure you use a crimping sleeve matched to the hose type and size for proper assembly and seal.

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	50

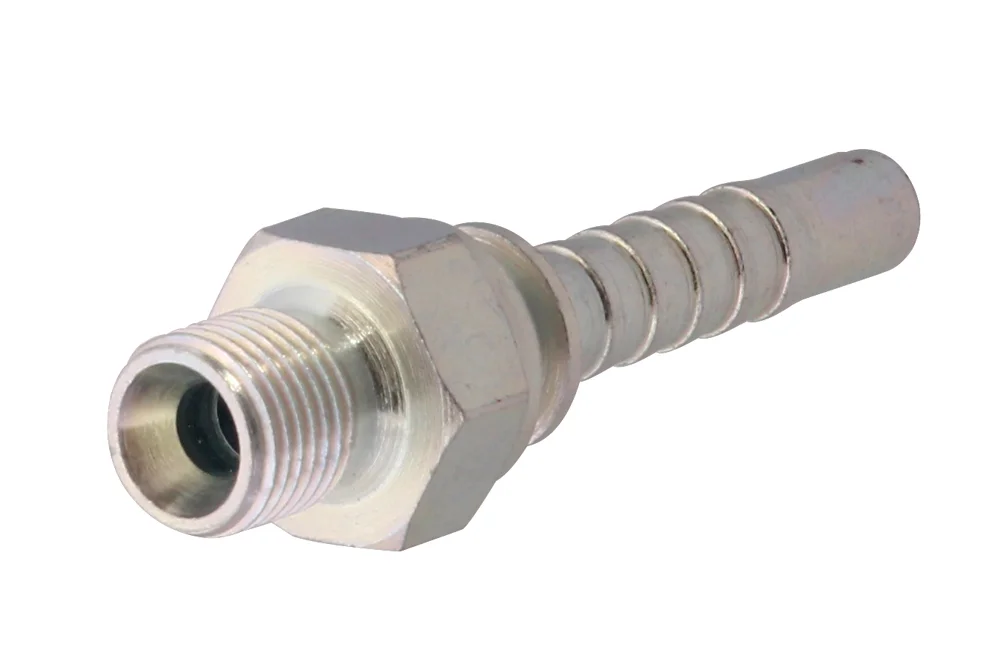

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hoses), with external BSP thread, 60° sealing cone (AGR). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBZ110-02-04-Y	End. GZ 1/8" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBZ110-04-04-Y	End. GZ 1/4" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBZ110-04-06-Y	End. GZ 1/4" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBZ110-06-05-Y	End. GZ 3/8" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBZ110-06-06-Y	End. GZ 3/8" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBZ110-08-04-Y	End. GZ 1/2" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBZ110-08-05-Y	End. GZ.1/2" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBZ110-08-06-Y	End. GZ 1/2" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBZ110-08-08-Y	End. GZ 1/2" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBZ110-10-08-Y	End. GZ 5/8" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBZ110-10-10-Y	End. GZ 5/8" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBZ110-12-08-Y	End. GZ 3/4" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBZ110-12-10-Y	End. GZ 3/4" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBZ110-12-12-Y	End. GZ 3/4" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBZ110-20-16-Y	End. GZ 1.1/4" BSP, hose 1", cone 60°	25	-	In stock	Enquiry
TI-ZBZ110-24-20-Y	End. GZ 1.1/2" BSP, hose 1.1/4", cone 60°	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hoses), with external BSP thread, 60° sealing cone (AGR). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
