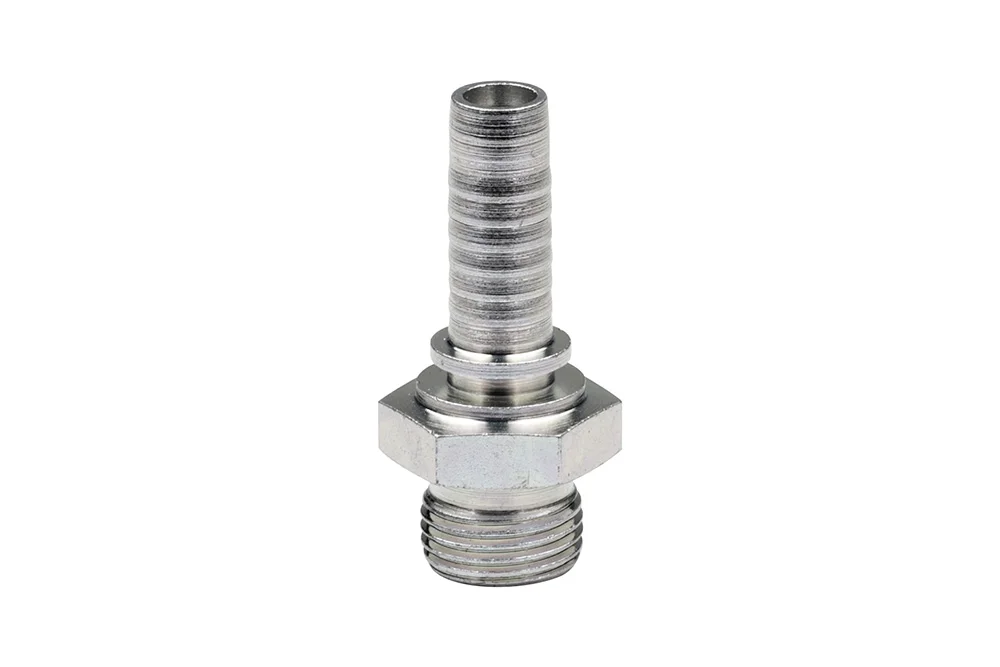

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external BSP thread, 60° sealing cone (AGR). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
List of product variants
Article number
Product variant name
Nominal inner diameter
Working pressure [bar]
Enquiry
Catalogue
TI-ZBZ110-02-03
End. GZ 1/8" BSP, hose 3/16", cone 60°
5
-
TI-ZBZ110-02-04
End. GZ 1/8" BSP, hose 1/4", cone 60°
6
-
TI-ZBZ110-04-03
End. GZ 1/4" BSP, hose 3/16", cone 60°
5
-
TI-ZBZ110-04-04
End. GZ 1/4" BSP, hose 1/4", cone 60°
6
-
TI-ZBZ110-04-05
End. GZ 1/4" BSP, hose 5/16", cone 60°
8
-
TI-ZBZ110-04-06
End. GZ 1/4" BSP, hose 3/8", cone 60°
10
-
TI-ZBZ110-06-04
End. GZ 3/8" BSP, hose 1/4", cone 60°
6
-
TI-ZBZ110-06-05
End. GZ 3/8" BSP, hose 5/16", cone 60°
8
-
TI-ZBZ110-06-06
End. GZ 3/8" BSP, hose 3/8", cone 60°
10
-
TI-ZBZ110-06-08
End. GZ 3/8" BSP, hose 1/2", cone 60°
12
-
TI-ZBZ110-08-04
End. GZ 1/2" BSP, hose 1/4", cone 60°
6
-
-
TI-ZBZ110-08-05
End. GZ.1/2" BSP, hose 5/16", cone 60°
8
-
TI-ZBZ110-08-06
End. GZ 1/2" BSP, hose 3/8", cone 60°
10
-
TI-ZBZ110-08-08
End. GZ 1/2" BSP, hose 1/2", cone 60°
12
-
TI-ZBZ110-08-10
End. GZ 1/2" BSP, hose 5/8", cone 60°
16
-
TI-ZBZ110-08-12
End. GZ 1/2" BSP, hose 3/4", cone 60°
20
-
-
TI-ZBZ110-10-08
End. GZ 5/8" BSP, hose 1/2", cone 60°
12
-
TI-ZBZ110-10-10
End. GZ 5/8" BSP, hose 5/8", cone 60°
16
-
TI-ZBZ110-10-12
End. GZ 5/8" BSP, hose 3/4", cone 60°
20
-
TI-ZBZ110-12-08
End. GZ 3/4" BSP, hose 1/2", cone 60°
12
-
TI-ZBZ110-12-10
End. GZ 3/4" BSP, hose 5/8", cone 60°
16
-
TI-ZBZ110-12-12
End. GZ 3/4" BSP, hose 3/4", cone 60°
20
-
TI-ZBZ110-12-16
End. GZ 3/4" BSP, hose 1", cone 60°
25
-
TI-ZBZ110-16-10
End. GZ 1" BSP, hose 5/8", cone 60°
16
-
TI-ZBZ110-16-12
End. GZ 1" BSP, hose 3/4", cone 60°
20
-
TI-ZBZ110-16-16
End. GZ 1" BSP, hose 1", cone 60°
25
-
TI-ZBZ110-16-20
End. GZ 1" BSP, hose 1.1/4", cone 60°
32
-
-
TI-ZBZ110-20-16
End. GZ 1.1/4" BSP, hose 1", cone 60°
25
-
TI-ZBZ110-20-20
End. GZ 1.1/4" BSP, hose 1.1/4", cone 60°
32
-
TI-ZBZ110-20-24
End. GZ 1.1/4" BSP, hose 1.1/2", cone 60°
38
-
TI-ZBZ110-24-20
End. GZ 1.1/2" BSP, hose 1.1/4", cone 60°
32
-
TI-ZBZ110-24-24
End. GZ 1.1/2" BSP, hose 1.1/2", cone 60°
38
-
TI-ZBZ110-32-32
End. GZ 2" BSP, hose 2", cone 60°
50
-
TI-ZBZ110-40-40
End. GZ 2.1/2" BSP, hose 2.1/2", cone 60°
65
-
TI-ZBZ110-48-48
End. GZ 3" BSP, hose 3", cone 60°
75
-
