Does the CEL hydraulic end, type ZMZ111, light series (carbon steel, zinc-nickel) require specific crimping sleeve dimensions for reliable hose sealing?

Yes. The CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel requires a crimping sleeve matched to the hose construction and the CEL 60Â° cone sealing geometry to ensure reliable sealing. The product description specifies it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type, which implies: - Sleeve inner profile and length must accommodate the hose outer diameter, reinforcement layers and the CEL 60Â° cone to provide full contact and proper compression. - Sleeve diameter and crimping range must match the hose nominal size so the crimp achieves the required crimping diameter and deformation pattern. - Sleeve material and strength must be compatible with the hose working pressure and the carbon-steel fitting to maintain joint integrity. - Crimping tooling and calibration should be appropriate for the light series fitting to avoid over- or under-crimping that would compromise the 60Â° cone seal. In short: use a crimping sleeve specified for the exact hose type and size and compatible with 60Â° cone (CEL) fittings; follow manufacturer crimp dimensions and crimping procedure for reliable hose sealing.

Can CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel be used with standard crimping dies or are specific die profiles required?

CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel requires crimping with a sleeve appropriate for the hose type and the CEL 60Â° cone sealing geometry. It is not sufficient to rely on arbitrary âstandardâ dies: you must use crimping dies and a sleeve profile compatible with the hose construction and the fittingâs dimensions (tail profile, outer diameter and cone angle). In practice this means using the manufacturer-recommended die profile or a standard die set that explicitly lists compatibility with CEL-style 60Â° conical fittings and the specific hose series. Incorrect die profiles can cause poor seal, leak or fitting damage.

Are special hose sleeve materials required for CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel to ensure seal integrity?

No. special hose sleeve materials are not required for CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel to ensure seal integrity, provided standard compatible crimping sleeves for the hose type are used. The product is designed for crimping with a sleeve suitable to the specific hose; the CEL sealing relies on the 60Â° cone and correct mechanical crimp rather than a specialized sleeve material. Use these guidelines: - Use a crimping sleeve specified by the hose manufacturer and compatible with the hose construction (textile, wire braid, etc.) and size. - Ensure the sleeve inner diameter, wall thickness and crimp profile match hose and CEL fitting dimensions. - Maintain proper crimping parameters (die set, crimp diameter, pressure) per hose/sleeve manufacturer instructions. - Inspect for full metal-to-metal engagement on the 60Â° cone and no gaps or deformation that could impair seal. - Zinc-nickel coating (6â10 Âµm) on the carbon steel fitting provides high corrosion resistance and does not necessitate a special sleeve material; however, avoid dissimilar-metal corrosion issues in highly aggressive environments by consulting compatibility guidance if the sleeve is of a markedly different alloy. - For critical or high-corrosion applications, consider manufacturer recommendations or testing (e.g., salt-spray, pressure testing) to validate long-term integrity. In short: standard, hose-compatible crimping sleeves are sufficient for CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel; no special sleeve material is inherently required unless specific environmental or compatibility concerns dictate otherwise.

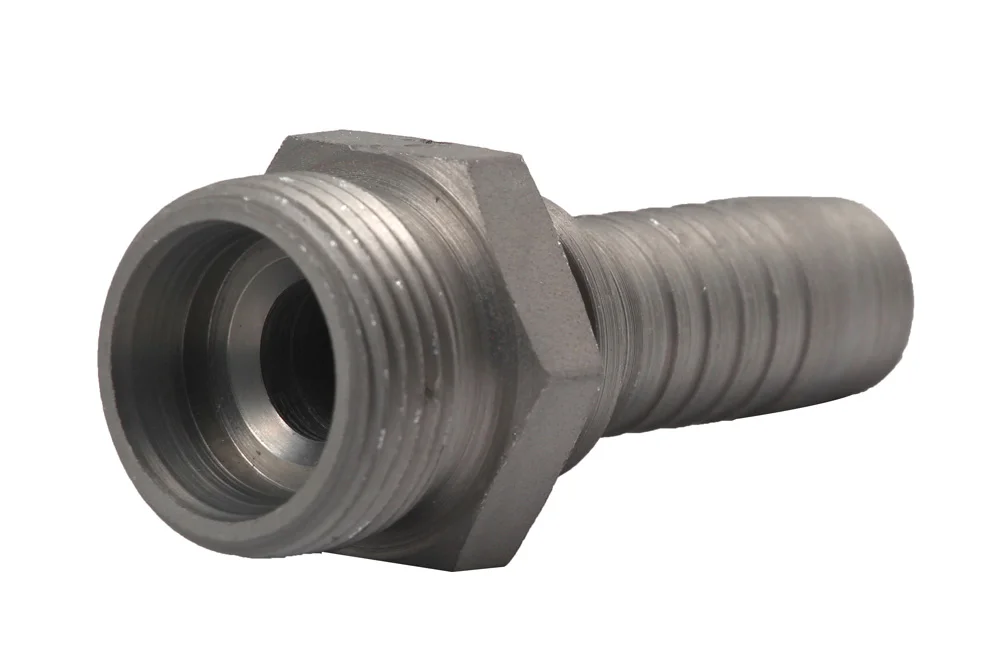

CEL hydraulic end, type ZMZ111, light series, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	6

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external metric thread, sealing on a 60° cone (CEL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMZ111-12-03-CN	End. GZ M12x1.5, hose 3/16", 24°, light, Zn-Ni	5	-	In stock	Enquiry
TI-ZMZ111-12-04-CN	End. GZ M12x1.5, hose 1/4", 24°, light, Zn-Ni	6	-	In stock	Enquiry
TI-ZMZ111-14-04-CN	End. GZ M14x1.5, hose 1/4", 24°, light, Zn-Ni	6	-	In stock	Enquiry
TI-ZMZ111-16-04-CN	End. GZ M16x1.5, hose 1/4", 24°, light, Zn-Ni	6	-	In stock	Enquiry
TI-ZMZ111-16-05-CN	End. GZ M16x1.5, hose 5/16", 24°, light, Zn-Ni	8	-	In stock	Enquiry
TI-ZMZ111-16-06-CN	End. GZ M16x1.5, hose 3/8", 24°, light, Zn-Ni	10	-	In stock	Enquiry
TI-ZMZ111-18-04-CN	End. GZ M18x1.5, hose 1/4", 24°, light, Zn-Ni	6	-	In stock	Enquiry
TI-ZMZ111-18-05-CN	End. GZ M18x1.5, hose 5/16", 24°, light, Zn-Ni	8	-	In stock	Enquiry
TI-ZMZ111-18-06-CN	End. GZ M18x1.5, hose 3/8", 24°, light, Zn-Ni	10	-	In stock	Enquiry
TI-ZMZ111-22-06-CN	End. GZ M22x1.5, hose 3/8", 24°, light, Zn-Ni	10	-	In stock	Enquiry
TI-ZMZ111-22-08-CN	End. GZ M22x1.5, hose 1/2", 24°, light, Zn-Ni	12	-	In stock	Enquiry
TI-ZMZ111-26-08-CN	End. GZ M26x1.5, hose 1/2", 24°, light, Zn-Ni	12	-	In stock	Enquiry
TI-ZMZ111-26-10-CN	End. GZ M26x1.5, hose 5/8", 24°, light, Zn-Ni	16	-	In stock	Enquiry
TI-ZMZ111-30-12-CN	End. GZ M30x2, hose 3/4", 24°, light, Zn-Ni	20	-	In stock	Enquiry
TI-ZMZ111-36-16-CN	End. GZ M36x2, hose 1", 24°, light, Zn-Ni	25	-	In stock	Enquiry
TI-ZMZ111-45-20-CN	End. GZ M45x2, hose 1.1/4", 24°, light, Zn-Ni	32	-	In stock	Enquiry
TI-ZMZ111-52-24-CN	End. GZ M52x2, hose 1.1/2", 24°, light, Zn-Ni	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external metric thread, sealing on a 60° cone (CEL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
