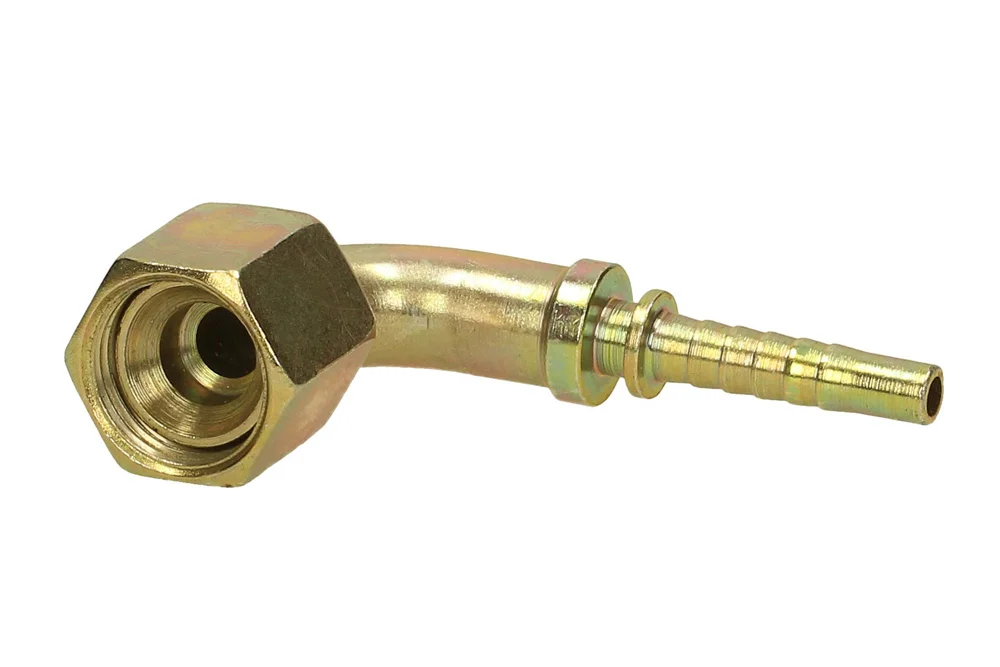

DKJ 90° hydraulic end, type ZJW210, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal UNF thread and nut, sealing on a 74° cone (DKJ), 90° angled. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZJW210-07-02	End. JIC 90° G 7/16", hose 1/8", cone 74°	3	-	In stock	Enquiry
TI-ZJW210-07-03	End. JIC 90° G 7/16", hose 3/16", cone 74°	5	-	In stock	Enquiry
TI-ZJW210-07-04	End. JIC 90° G 7/16", hose 1/4", cone 74°	6	-	In stock	Enquiry
TI-ZJW210-07-05	End. JIC 90° G 7/16", hose 5/16", cone 74°	8	-	In stock	Enquiry
TI-ZJW210-08-03	End. JIC 90° G 1/2", hose 3/16", cone 74°	5	-	In stock	Enquiry
TI-ZJW210-08-04	End. JIC 90° G 1/2", hose 1/4", cone 74°	6	-	In stock	Enquiry
TI-ZJW210-08-05	End. JIC 90° G 1/2", hose 5/16", cone 74°	8	-	In stock	Enquiry
TI-ZJW210-09-04	End. JIC 90° G 9/16", hose 1/4", cone 74°	6	-	In stock	Enquiry
TI-ZJW210-09-05	End. JIC 90° G 9/16", hose 5/16", cone 74°	8	-	In stock	Enquiry
TI-ZJW210-09-06	End. JIC 90° G 9/16", hose 3/8", cone 74°	10	-	In stock	Enquiry
TI-ZJW210-10-06	End. JIC 90° G 5/8", hose 3/8", cone 74°	10	-	In stock	Enquiry
TI-ZJW210-12-04	End. JIC 90° G 3/4", hose 1/4", cone 74°	6	-	In stock	Enquiry
TI-ZJW210-12-05	End. JIC 90° G 3/4", hose 5/16", cone 74°	8	-	In stock	Enquiry
TI-ZJW210-12-06	End. JIC 90° G 3/4", hose 3/8", cone 74°	10	-	In stock	Enquiry
TI-ZJW210-12-08	End. JIC 90° G 3/4", hose 1/2", cone 74°	12	-	In stock	Enquiry
TI-ZJW210-14-06	End. JIC 90° G 7/8", hose 3/8", cone 74°	10	-	In stock	Enquiry
TI-ZJW210-14-08	End. JIC 90° G 7/8", hose 1/2", cone 74°	12	-	In stock	Enquiry
TI-ZJW210-14-10	End. JIC 90° G 7/8", hose 5/8", cone 74°	16	-	In stock	Enquiry
TI-ZJW210-17-08	End. JIC 90° G1/16", hose 1/2", cone 74°	12	-	In stock	Enquiry
TI-ZJW210-17-10	End. JIC 90° G1/16", hose 5/8", cone 74°	16	-	In stock	Enquiry
TI-ZJW210-17-12	End. JIC 90° G1/16", hose 3/4", cone 74°	20	-	In stock	Enquiry
TI-ZJW210-19-12	End. JIC 90° G1/16", hose 3/4", cone 74°	20	-	In stock	Enquiry
TI-ZJW210-21-12	End. JIC 90° G1.5/16", hose 3/4", cone 74°	20	-	In stock	Enquiry
TI-ZJW210-21-16	End. JIC 90° G1.5/16", hose 1", cone 74°	25	-	In stock	Enquiry
TI-ZJW210-21-20	End. JIC 90° G1.5/16", hose 1.1/4", cone 74°	32	-	In stock	Enquiry
TI-ZJW210-26-16	End. JIC 90° G1.5/8", hose 1", cone 74°	25	-	In stock	Enquiry
TI-ZJW210-26-20	End. JIC 90° G1.5/8", hose 1.1/4", cone 74°	32	-	In stock	Enquiry
TI-ZJW210-30-20	End. JIC 90° G1.7/8", hose 1.1/4", cone 74°	32	-	In stock	Enquiry
TI-ZJW210-30-24	End. JIC 90° G1.7/8", hose 1.1/2", cone 74°	38	-	In stock	Enquiry
TI-ZJW210-40-32	End. JIC 90° G 2.1/2", hose 2", cone 74°	50	-	In stock	Enquiry
