Is the DKL-FL hydraulic end, type ZMW140 light series (carbon steel) compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKL-FL hydraulic end, type ZMW140, light series, carbon steel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. That means it is compatible with standard crimping sleeves provided the sleeve matches the hose construction and dimensions (inner/outer diameter and reinforcement type) and is intended for crimping to a regular hydraulic âtailâ fitting with internal metric thread and nut, face seal. Ensure you use a crimping sleeve specified by the hose manufacturer for that hose model and follow the correct crimp specifications (sleeve size, crimp diameter/profile, and crimping equipment) to achieve a proper, leak-free assembly.

Does the DKL-FL hydraulic end, type ZMW140, light series, carbon steel require a specific crimping sleeve profile?

DKL-FL hydraulic end, type ZMW140, light series, carbon steel does not require a unique crimping sleeve profile specified by the fitting itself. It is designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the specific hose type. Therefore select a sleeve profile and crimping dimension recommended by the hose manufacturer that matches the ZMW140 fittingâs tail and hose construction; use correct tooling and procedures to ensure reliable crimping.

Can the DKL-FL hydraulic end, type ZMW140, light series, carbon steel be used with reusable crimping sleeves?

Yes. The DKL-FL hydraulic end, type ZMW140, light series, carbon steel can be used with reusable crimping sleeves provided those sleeves are specifically suitable for the hose type and meet the connectionâs face-seal and crimping requirements. The product description states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the hose, which implies compatibility with sleeves intended for re-use if they match the hose and fitting specifications (diameter, material, crimp profile, and pressure rating). However, ensure the following before using reusable sleeves: - Sleeve compatibility: The reusable sleeve must be approved for the exact hose construction and outer diameter used with ZMW140. - Crimp profile and tooling: The sleeveâs crimp profile and the crimping tool must produce a secure, face-seal-compliant assembly for DKL-FL fittings. - Pressure and safety ratings: The assembled combination must meet the hydraulic systemâs maximum working pressure and safety standards. - Manufacturer guidance: Preferably, follow the hose, sleeve and fitting manufacturersâ instructions; some suppliers require single-use sleeves or specific reusable sleeve models. - Inspection and testing: Perform pressure testing and visual inspection after assembly and at intervals per industry practice. If these conditions are met and manufacturersâ instructions allow reusable sleeves for the specific hose/fitting combination, reusable crimping sleeves can be used with the DKL-FL hydraulic end, type ZMW140, light series, carbon steel.

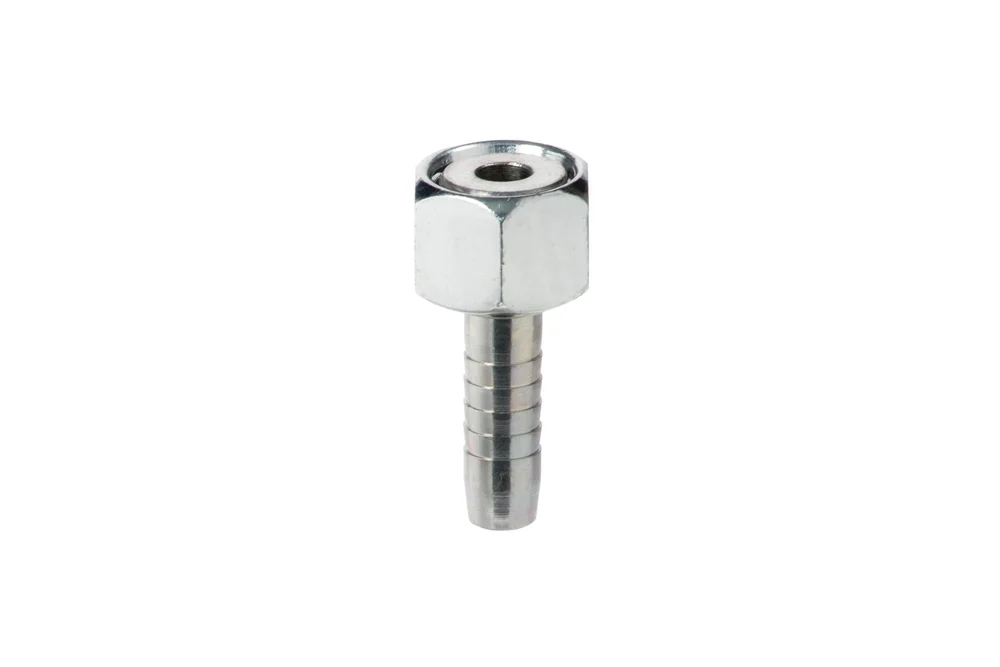

DKL-FL hydraulic end, type ZMW140, light series, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, face seal (DKL-FL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW140-10-03	End. GW M10x1, hose 3/16", butt	5	-	In stock	Enquiry
TI-ZMW140-12-04	End. GW M12x1.5, hose 1/4", butt	6	-	In stock	Enquiry
TI-ZMW140-14-04	End. GW M14x1.5, hose 1/4", face-to-face	6	-	In stock	Enquiry
TI-ZMW140-14X1-04	End. GW M14x1, hose 1/4", face-to-face	6	-	In stock	Enquiry
TI-ZMW140-16-05	End. GW M16x1.5, hose 5/16", face-to-face	8	-	In stock	Enquiry
TI-ZMW140-18-05	End. GW M18x1.5, hose 5/16", face-to-face	8	-	In stock	Enquiry
TI-ZMW140-18-06	End. GW M18x1.5, hose 3/8", butt weld	10	-	In stock	Enquiry
TI-ZMW140-20-06	End. GW M20x1.5, hose 3/8", butt weld	10	-	In stock	Enquiry
TI-ZMW140-22-06	End. GW M22x1.5, hose 3/8", butt	10	-	In stock	Enquiry
TI-ZMW140-22-08	End. GW M22x1.5, hose 1/2", face-to-face	12	-	In stock	Enquiry
TI-ZMW140-24-08	End. GW M24x1.5, hose 1/2", butt weld	12	-	In stock	Enquiry
TI-ZMW140-26-08	End. GW M26x1.5, hose 1/2", face-to-face	12	-	In stock	Enquiry
TI-ZMW140-26-10	End. GW M26x1.5, hose 5/8", face-to-face	16	-	In stock	Enquiry
TI-ZMW140-27-10	End. GW M27x2, hose 5/8", face-to-face	16	-	In stock	Enquiry
TI-ZMW140-27X1,5-10	End. GW M27x1.5, hose 5/8", face-to-face	16	-	In stock	Enquiry
TI-ZMW140-30-12	End. GW M30x2, hose 3/4", butt	20	-	In stock	Enquiry
TI-ZMW140-30X1,5-12	End. GW M30x1.5, hose 3/4", butt	20	-	In stock	Enquiry
TI-ZMW140-33-12	End. GW M33x2, hose 3/4", butt	20	-	In stock	Enquiry
TI-ZMW140-36-16	End. GW M36x2, hose 1", face-to-face	25	-	In stock	Enquiry
TI-ZMW140-38-16	End. GW M38x1.5, hose 1", face-to-face	25	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, face seal (DKL-FL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
