Is the DKL hydraulic end, type ZMW111 light series in AISI 316L steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKL hydraulic end, type ZMW111, light series, AISI 316L steel is compatible with standard crimping sleeves for industrial hydraulic hoses. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Its features . a regular hydraulic tail (type Z), internal metric thread with nut, metal-to-metal sealing, and universal 24Â°/60Â° cone (DKL) . are standard for fittings intended to be crimped. Ensure you use a crimping sleeve and crimping dimensions recommended by the hose manufacturer and compatible with light-series fittings and AISI 316L material to achieve proper mechanical strength and seal.

Can DKL hydraulic end, type ZMW111, light series, AISI 316L steel withstand saltwater or marine corrosion environments?

DKL hydraulic end, type ZMW111, light series, AISI 316L steel Format Yes. AISI 316L is a lowâcarbon, molybdenumâbearing stainless steel with good resistance to chlorideâinduced corrosion and is commonly specified for marine and saltwater environments. For the DKL hydraulic end ZMW111 light series, made of AISI 316L, you can expect strong general corrosion resistance in seawater, reduced risk of pitting and crevice corrosion compared with 304, and good mechanical compatibility for hydraulic fittings. However, actual performance depends on water chemistry, temperature, flow, mechanical stresses, galvanic couples with other metals, surface finish, and maintenance. For longâterm or critical marine exposures, validate with applicationâspecific testing, proper installation, compatible mating materials, and suitable protective measures.

Does DKL hydraulic end, type ZMW111, light series, AISI 316L steel require specific crimping pressure settings?

DKL hydraulic end, type ZMW111, light series, AISI 316L steel does require correct crimping, but the provided description does not specify exact crimping pressure settings. The fitting is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose; therefore the required crimping parameters (pressure, diameter, number of crimps) depend primarily on the hose construction and the matching crimp sleeve rather than on the fitting material or geometry alone. Recommended approach: - Follow the hose manufacturer's crimping specifications (crimping force/pressure, die set, final crimp dimensions). - Use a crimp sleeve compatible with the hose and this DKL (24Â°/60Â° cone) fitting geometry. - Validate crimping by measuring final crimp diameter and performing pull-off/leak tests per applicable standards. - If in doubt, consult the hose, sleeve or crimping machine manufacturer for the exact pressure/die settings for the hose + ZMW111 combination. Conclusion: No universal crimping pressure is given in the fitting description; use hose-specific crimping settings and compatible sleeve/die recommendations, and verify assembly by testing.

DKL hydraulic end, type ZMW111, light series, AISI 316L steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10

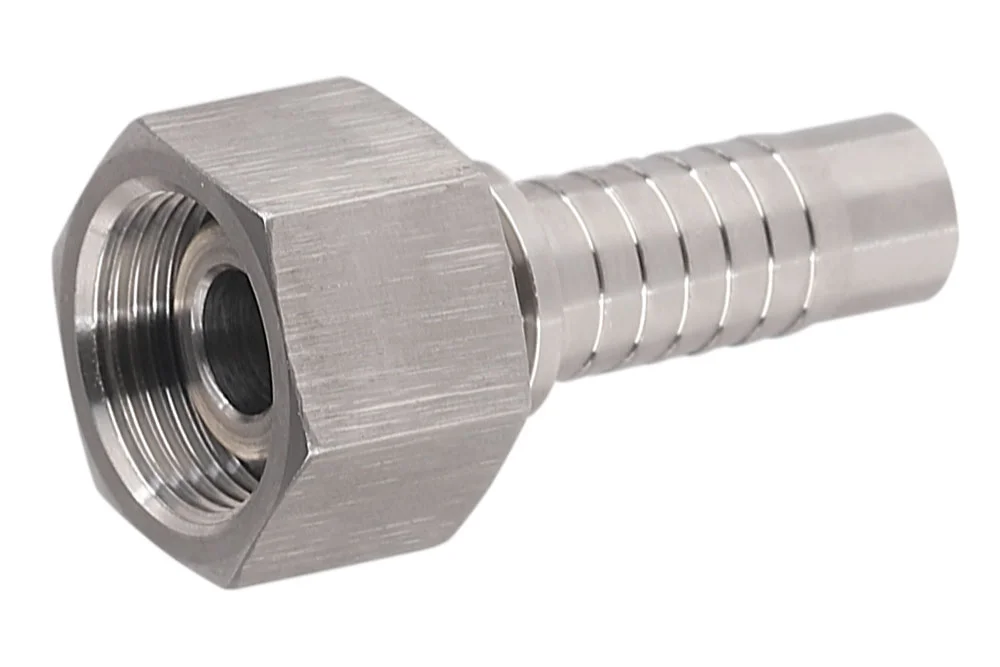

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-ZMW111-22-08-SS	End. GW M22x1.5, hose 1/2", 24/60°, light, AISI 316L	12	-	In stock	0 zł		Enquiry
TI-ZMW111-30-12-SS	End. GW M30x2, hose 3/4", 24/60°, light, AISI 316L	20	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: AISI 316L steel.
