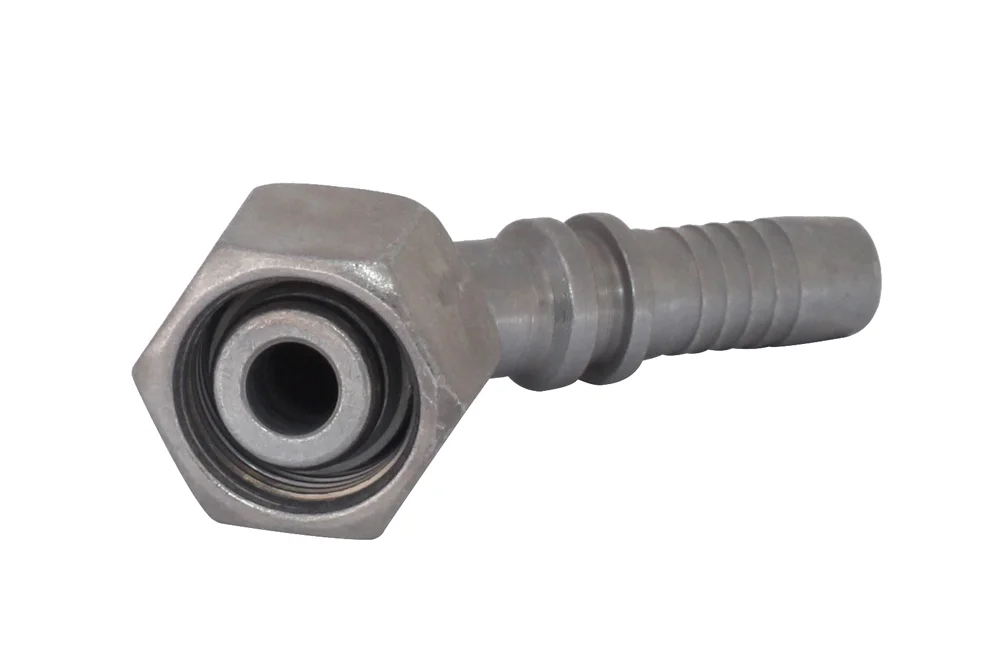

DKOS 45° hydraulic end, type ZMW322, heavy series, carbon steel, zinc-nickel

Additional information

Material

CS – steel (cast iron)

Standard length [m]

10

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), angled 45°, heavy-duty series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TI-ZMW322-16-03-CNEnd. 45° G thread M16x1.5, hose 3/16", 24°, o-ring, heavy, Zn-Ni5-In stock
Enquiry
TI-ZMW322-16-04-CNEnd. 45° G thread M16x1.5, hose 1/4", 24°, o-ring, heavy, Zn-Ni6-In stock
Enquiry
TI-ZMW322-18-04-CNEnd fitting 45° G1/2 M18x1.5, hose 1/4", 24°, o-ring, heavy, Zn-Ni6-In stock
Enquiry
TI-ZMW322-20-05-CNEnd fitting 45° G1/2 M20x1.5, hose 5/16", 24°, o-ring, heavy, Zn-Ni8-In stock
Enquiry
TI-ZMW322-20-06-CNEnd fitting 45° GW M20x1.5, hose 3/8", 24°, o-ring, heavy, Zn-Ni10-In stock
Enquiry
TI-ZMW322-22-06-CNEnd. 45° GW M22x1.5, hose 3/8", 24°, o-ring, heavy, Zn-Ni10-In stock
Enquiry
TI-ZMW322-24-08-CNEnd. 45° G thread M24x1.5, hose 1/2", 24°, o-ring, heavy, Zn-Ni12-In stock
Enquiry
TI-ZMW322-30-10-CNEnd. 45° G thread M30x2, hose 5/8", 24°, o-ring, heavy, Zn-Ni16-In stock
Enquiry
TI-ZMW322-30-12-CNEnd. 45° G thread M30x2, hose 3/4", 24°, o-ring, heavy, Zn-Ni20-In stock
Enquiry
TI-ZMW322-36-12-CNEnd. 45° GW M36x2, hose 3/4", 24°, o-ring, heavy, Zn-Ni20-In stock
Enquiry
TI-ZMW322-36-16-CNEnd. 45° GW M36x2, hose 1", 24°, o-ring, heavy, Zn-Ni25-In stock
Enquiry
TI-ZMW322-42-16-CNEnd. 45° G thread M42x2, hose 1", 24°, o-ring, heavy, Zn-Ni25-In stock
Enquiry
TI-ZMW322-52-20-CNEnd fitting 45° GW M52x2, hose 1.1/4", 24°, o-ring, heavy, Zn-Ni32-In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), angled 45°, heavy-duty series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
