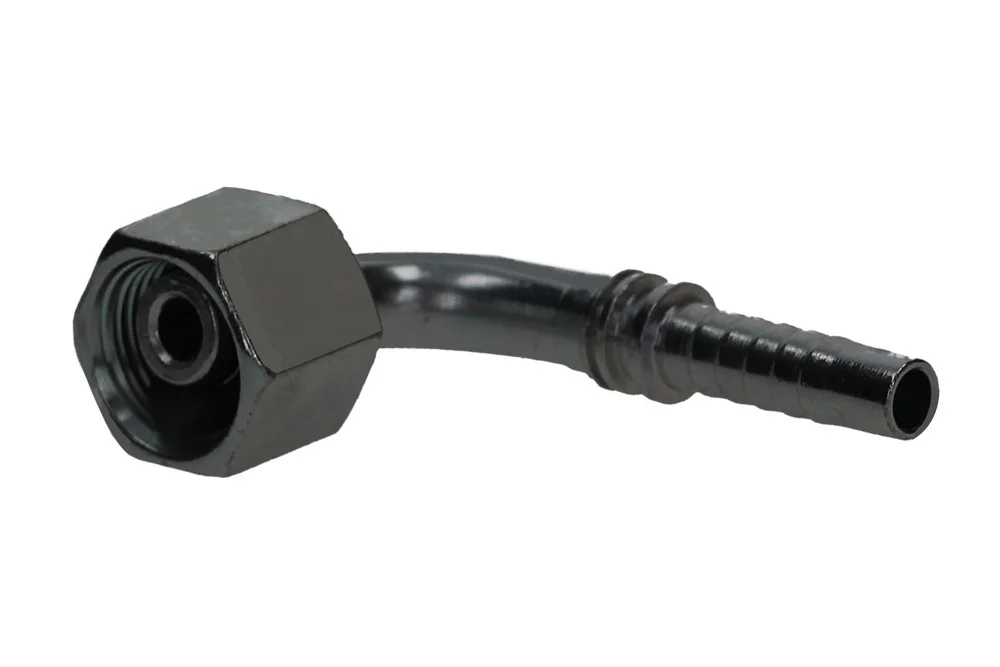

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 90° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
List of product variants
Article number
Product variant name
Nominal inner diameter
Working pressure [bar]
Enquiry
Catalogue
TI-ZMW222-14-03
End. 90° G1/2 M14x1.5, hose 3/16", 24°, o-ring, heavy
5
-
-
TI-ZMW222-14-04
End. 90° G1/2 M14x1.5, hose 1/4", 24°, o-ring, heavy
6
-
TI-ZMW222-16-03
End. 90° G1/2 M16x1.5, hose 3/16", 24°, o-ring, heavy
5
-
TI-ZMW222-16-04
End. 90° G1/2 M16x1.5, hose 1/4", 24°, o-ring, heavy
6
-
TI-ZMW222-18-04
End. 90° G1/2 M18x1.5, hose 1/4", 24°, o-ring, heavy
6
-
TI-ZMW222-18-05
End fitting 90° G1/2 M18x1.5, hose 5/16", 24°, o-ring, heavy
8
-
TI-ZMW222-18-06
End. 90° G1/2 M18x1.5, hose 3/8", 24°, o-ring, heavy
10
-
-
TI-ZMW222-20-04
End. 90° G1/2 M20x1.5, hose 1/4", 24°, o-ring, heavy
6
-
-
TI-ZMW222-20-05
End fitting 90° G1/2 M20x1.5, hose 5/16", 24°, o-ring, heavy
8
-
TI-ZMW222-20-06
End fitting 90° G1/2 M20x1.5, hose 3/8", 24°, o-ring, heavy
10
-
TI-ZMW222-20-08
End. 90° G1/2" M20x1.5, hose 1/2", 24°, o-ring, heavy
12
-
TI-ZMW222-22-06
End. 90° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy
10
-
TI-ZMW222-22-08
End. 90° G1/2" M22x1.5, hose 1/2", 24°, o-ring, heavy
12
-
TI-ZMW222-24-08
End. 90° G1 M24x1.5, hose 1/2", 24°, o-ring, heavy
12
-
TI-ZMW222-30-10
End fitting 90° G1 M30x2, hose 5/8", 24°, o-ring, heavy
16
-
TI-ZMW222-30-12
End. 90° G1 M30x2, hose 3/4", 24°, o-ring, heavy
20
-
TI-ZMW222-36-12
End. 90° G1 M36x2, hose 3/4", 24°, o-ring, heavy
20
-
TI-ZMW222-36-16
End. 90° G1 M36x2, hose 1", 24°, o-ring, heavy
25
-
TI-ZMW222-42-16
End. 90° G1/2 M42x2, hose 1", 24°, o-ring, heavy
25
-
TI-ZMW222-42-20
End fitting 90° G1/2 M42x2, hose 1.1/4", 24°, o-ring, heavy
32
-
TI-ZMW222-52-20
End fitting 90° G1/2 M52x2, hose 1.1/4", 24°, o-ring, heavy
32
-
TI-ZMW222-52-24
End fitting 90° G1/2" M52x2, hose 1.1/2", 24°, o-ring, heavy
38
-
Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 90° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
