Is the DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel is compatible with standard crimping sleeves for industrial hydraulic hoses, provided the sleeve is appropriate for the hose type and dimensions. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Compatibility requirements to confirm before crimping: - Sleeve size and profile match the hose outer diameter and reinforcement type. - Crimping dimensions/profile follow the hose and sleeve manufacturerâs specifications. - Crimping equipment meets the required force and die profile for heavy-duty fittings. - O-ring and 24Â° cone sealing face remain undamaged and correctly positioned during assembly. If those conditions are met, ZMW122 in AISI 316L can be crimped using standard sleeves intended for the hose.

Can the DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel be used with hoses requiring a 24Â° cone Oâring seal?

Yes. The DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel is designed specifically for hoses requiring a 24Â° cone Oâring seal. It features an internal metric thread and nut with Oâring sealing on a 24Â° cone (DKOS), and is intended for crimping with a compatible crimping sleeve for the hose type. Therefore it is suitable for use with hoses that require a 24Â° cone Oâring seal, provided the crimping sleeve and hose specifications match the fitting dimensions and crimping requirements.

Does the DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel require a specific crimp diameter?

Yes. The DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel requires a specific crimp diameter: it must be crimped using a crimping sleeve appropriate for the hose type and size for which the fitting is specified. The part is designed for crimping in hydraulic and industrial hoses with a sleeve matched to the hose construction and nominal diameter; correct crimp diameter depends on the hose manufacturerâs recommended sleeve dimensions and the crimping toolâs die set for that hose. Do not attempt freehand or generic crimp dimensionsâuse the crimp sleeve and crimp diameter specified by the hose/sleeve manufacturer or the crimping equipment supplier for the hose type to ensure proper sealing and mechanical integrity of the DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel.

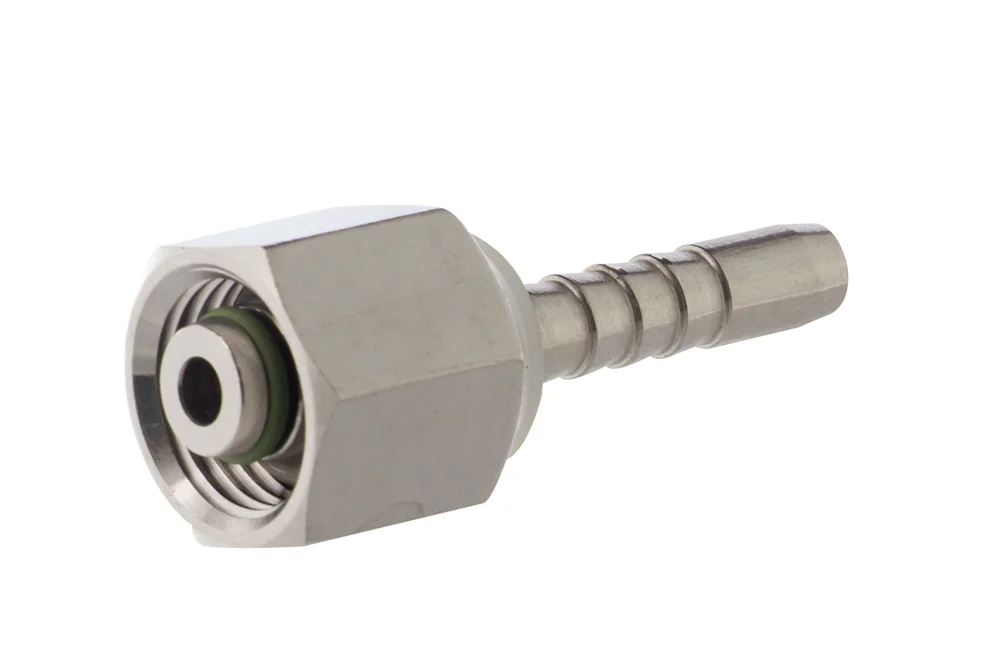

DKOS hydraulic end, type ZMW122, heavy series, AISI 316L steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with O-ring on a 24° cone (DKOS), heavy-duty series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW122-16-04-SS	End. GW M16x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW122-18-04-SS	End. GW M18x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW122-20-05-SS	End. GW M20x1.5, hose 5/16", 24°, o-ring, heavy, AISI 316L	8	-	In stock	Enquiry
TI-ZMW122-20-06-SS	End. GW M20x1.5, hose 3/8", 24°, o-ring, heavy, AISI 316L	10	-	In stock	Enquiry
TI-ZMW122-22-06-SS	End. GW M22x1.5, hose 3/8", 24°, o-ring, heavy, AISI 316L	10	-	In stock	Enquiry
TI-ZMW122-24-08-SS	End. GW M24x1.5, hose 1/2", 24°, o-ring, heavy, AISI 316L	12	-	In stock	Enquiry
TI-ZMW122-30-10-SS	End. GW M30x2, hose 5/8", 24°, o-ring, heavy, AISI 316L	16	-	In stock	Enquiry
TI-ZMW122-30-12-SS	End. GW M30x2, hose 3/4", 24°, o-ring, heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZMW122-36-12-SS	End. GW M36x2, hose 3/4", 24°, o-ring, heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZMW122-36-16-SS	End. GW M36x2, hose 1", 24°, o-ring, heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZMW122-42-16-SS	End. GW M42x2, hose 1", 24°, o-ring, heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZMW122-52-20-SS	End. GW M52x2, hose 1.1/4", 24°, o-ring, heavy, AISI 316L	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with O-ring on a 24° cone (DKOS), heavy-duty series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.
