Can DKR 90Â° hydraulic end, type ZBW210, AISI 316 steel (PH) be used with standard BSP hoses and crimping sleeves marked â-PHâ?

Yes. DKR 90Â° hydraulic end, type ZBW210, AISI 316 steel (PH) Format is designed for use with standard BSP hoses and crimping sleeves marked â-PHâ. The product description specifies an internal BSP thread and nut, a 60Â° sealing cone (DKR), and a regular hydraulic tail (type Z) for hose insertion. It is intended for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type . specifically sleeves with the â-PHâ suffix . and the material is AISI 316 stainless steel, suitable for corrosive environments. Ensure the sleeve size matches the hose and that crimping is performed with appropriate tooling and to the manufacturerâs specifications.

Is DKR 90Â° hydraulic end, type ZBW210, AISI 316 steel (PH) compatible with BSP-threaded hoses and PH crimping sleeves?

Yes. DKR 90Â° hydraulic end, type ZBW210, AISI 316 steel (PH) is compatible with BSP-threaded hoses and PH crimping sleeves. The product description specifies an internal BSP thread with nut and a 60Â° DKR sealing cone, and it is designed for crimping in hydraulic and industrial hoses using crimping sleeves marked with â-PH,â matching the AISI 316 (PH) material.

Can DKR 90Â° hydraulic end, type ZBW210, AISI 316 steel (PH) be crimped using -PH sleeves for hoses with internal BSP fittings?

Yes. DKR 90Â° hydraulic end, type ZBW210, AISI 316 steel (PH) can be crimped using -PH sleeves for hoses with internal BSP fittings. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose, and instructs to use sleeves marked with the letters â-PHâ at the end of the index. Material AISI 316 stainless steel is compatible with standard crimping processes for such fittings. Ensure you select the correct -PH sleeve size and follow the hose and crimping machine manufacturerâs specifications (die set, pressure ratings, and crimp dimensions) to achieve a proper seal and maintain rated working pressures.

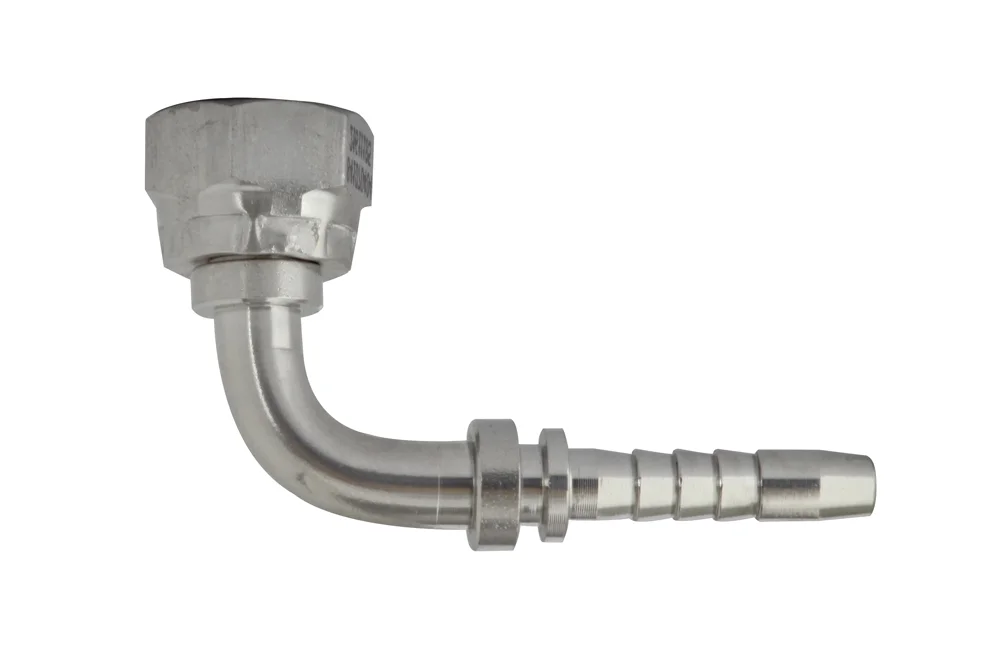

DKR 90° hydraulic end, type ZBW210, AISI 316 steel (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10, 15

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, sealing cone 60° (DKR), angled 90°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW210-02-03-SS-PH	End. 90° G 1/8" BSP, hose 3/16", cone 60°, AISI 316	5		In stock	Enquiry
TI-ZBW210-02-04-SS-PH	End fitting 90° G 1/8" BSP, hose 1/4", cone 60°, AISI 316	6		In stock	Enquiry
TI-ZBW210-04-03-SS-PH	End. 90° G 1/4" BSP, hose 3/16", cone 60°, AISI 316	5	450	In stock	Enquiry
TI-ZBW210-04-04-SS-PH	End fitting 90° G 1/4" BSP, hose 1/4", 60° cone, AISI 316	6	450	In stock	Enquiry
TI-ZBW210-04-05-SS-PH	End. 90° G 1/4" BSP, hose 5/16", cone 60°, AISI 316	8	445	In stock	Enquiry
TI-ZBW210-04-06-SS-PH	End. 90° G 1/4" BSP, hose 3/8", cone 60°, AISI 316	10	445	In stock	Enquiry
TI-ZBW210-06-04-SS-PH	End. 90° G 3/8" BSP, hose 1/4", cone 60°, AISI 316	6	445	In stock	Enquiry
TI-ZBW210-06-05-SS-PH	End. 90° G 3/8" BSP, hose 5/16", cone 60°, AISI 316	8	445	In stock	Enquiry
TI-ZBW210-06-06-SS-PH	End fitting 90° G 3/8" BSP, hose 3/8", cone 60°, AISI 316	10	445	In stock	Enquiry
TI-ZBW210-06-08-SS-PH	End. 90° G 3/8" BSP, hose 1/2", cone 60°, AISI 316	12	415	In stock	Enquiry
TI-ZBW210-08-06-SS-PH	End. 90° G 1/2" BSP, hose 3/8", cone 60°, AISI 316	10	415	In stock	Enquiry
TI-ZBW210-08-08-SS-PH	End fitting 90° GW 1/2" BSP, hose 1/2", cone 60°, AISI 316	12	415	In stock	Enquiry
TI-ZBW210-08-10-SS-PH	End. 90° G 1/2" BSP, hose 5/8", cone 60°, AISI 316	16	350	In stock	Enquiry
TI-ZBW210-10-08-SS-PH	End. 90° G 5/8" BSP, hose 1/2", cone 60°, AISI 316	12	350	In stock	Enquiry
TI-ZBW210-10-10-SS-PH	End fitting 90° G 5/8" BSP, hose 5/8", cone 60°, AISI 316	16	350	In stock	Enquiry
TI-ZBW210-12-08-SS-PH	End. 90° G 3/4" BSP, hose 1/2", cone 60°, AISI 316	12	350	In stock	Enquiry
TI-ZBW210-12-10-SS-PH	End. 90° G 3/4" BSP, hose 5/8", cone 60°, AISI 316	16	350	In stock	Enquiry
TI-ZBW210-12-12-SS-PH	End fitting 90° GW 3/4" BSP, hose 3/4", cone 60°, AISI 316	20	350	In stock	Enquiry
TI-ZBW210-16-12-SS-PH	End. 90° G 1" BSP, hose 3/4", cone 60°, AISI 316	20	280	In stock	Enquiry
TI-ZBW210-16-16-SS-PH	End fitting 90° GW 1" BSP, hose 1", cone 60°, AISI 316	25	280	In stock	Enquiry
TI-ZBW210-20-16-SS-PH	End. 90° G 1.1/4" BSP, hose 1", cone 60°, AISI 316	25	210	In stock	Enquiry
TI-ZBW210-20-20-SS-PH	Elbow 90° G 1.1/4" BSP, hose 1.1/4", cone 60°, AISI 316	32	210	In stock	Enquiry
TI-ZBW210-24-20-SS-PH	End fitting 90° GW 1.1/2" BSP, hose 1.1/4", cone 60°, AISI 316	32	185	In stock	Enquiry
TI-ZBW210-24-24-SS-PH	Elbow 90° G 1.1/2" BSP, hose 1.1/2", cone 60°, AISI 316	38	185	In stock	Enquiry
TI-ZBW210-32-24-SS-PH	End. 90° G 2" BSP, hose 1.1/2", cone 60°, AISI 316	38	175	In stock	Enquiry
TI-ZBW210-32-32-SS-PH	End fitting 90° GW 2" BSP, hose 2", cone 60°, AISI 316	50	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, sealing cone 60° (DKR), angled 90°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.
