Is the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316 steel (PH) compatible with standard BSP internal-thread hoses requiring a flat gasket?

Yes. The DKR-F 90Â° hydraulic end, type ZBW240, AISI 316 steel (PH) Format is compatible with standard BSP internal-thread hoses that require a flat gasket. The product description explicitly states it is a standard hydraulic end fitting with internal BSP thread and nut, flat sealing that requires an additional flat gasket (DKR-F). It is designed for crimping into hydraulic and industrial hoses using a compatible crimping sleeve (sleeves specified with the â-PHâ suffix) and is made of AISI 316 steel, so it meets the stated hose interface and sealing requirement.

Can the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316 steel (PH) be used with crimping sleeves marked â-PHâ for industrial hose assemblies?

Yes. The DKR-F 90Â° hydraulic end, type ZBW240, AISI 316 steel (PH) is designed for crimping in hydraulic and industrial hoses and requires a crimping sleeve suitable for the hose type. Use crimping sleeves marked with the suffix â-PHâ as specified in the product description; these sleeves are appropriate for assemblies with this fitting and material. Ensure the sleeve matches the hose diameter and specification and that a flat gasket is installed for the flat sealing connection.

Does the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316 steel (PH) require a specific flat gasket thickness for BSP sealing?

No. the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316 steel (PH) does not require a special proprietary flat gasket thickness for BSP sealing. The fitting uses a standard flat sealing arrangement with an additional flat gasket (DKR-F) for BSP; you should use a gasket of appropriate material and thickness compatible with BSP flat-face threads and the operating conditions (pressure, temperature, media). Ensure the gasket matches the sealing surface dimensions of the fitting and the mating component and is suitable for AISI 316 applications. Also confirm crimping with the correct â-PHâ marked sleeve for the hose type.

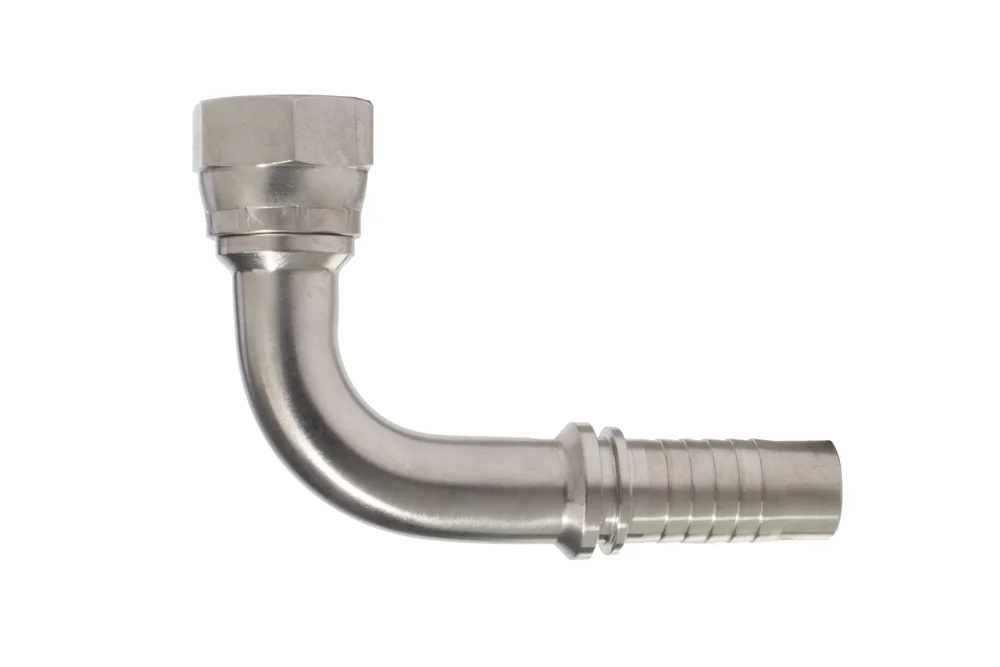

DKR-F 90° hydraulic end, type ZBW240, AISI 316 steel (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, flat sealing – requires the use of an additional flat gasket (DKR-F), 90° angled. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW240-02-04-SS-PH	End fitting 90° G 1/8" BSP, hose 1/4", butt, AISI 316	3		In stock	Enquiry
TI-ZBW240-04-04-SS-PH	End fitting 90° G 1/4" BSP, hose 1/4", butt, AISI 316	6	450	In stock	Enquiry
TI-ZBW240-06-06-SS-PH	End fitting 90° G 3/8" BSP, hose 3/8", butt, AISI 316	10	445	In stock	Enquiry
TI-ZBW240-08-06-SS-PH	End fitting 90° GW 1/2" BSP, hose 3/8", butt weld, AISI 316	10	445	In stock	Enquiry
TI-ZBW240-08-08-SS-PH	End fitting 90° GW 1/2" BSP, hose 1/2", butt weld, AISI 316	12	415	In stock	Enquiry
TI-ZBW240-10-08-SS-PH	End fitting 90° GW 5/8" BSP, hose 1/2", butt weld, AISI 316	12	415	In stock	Enquiry
TI-ZBW240-10-10-SS-PH	End fitting 90° G 5/8" BSP, hose 5/8", butt, AISI 316	16	350	In stock	Enquiry
TI-ZBW240-12-08-SS-PH	End fitting 90° G 3/4" BSP, hose 1/2", butt weld, AISI 316	12	350	In stock	Enquiry
TI-ZBW240-12-10-SS-PH	End. 90° G 3/4" BSP, hose 5/8", butt, AISI 316	16	350	In stock	Enquiry
TI-ZBW240-12-12-SS-PH	End fitting 90° GW 3/4" BSP, hose 3/4", butt, AISI 316	20	350	In stock	Enquiry
TI-ZBW240-16-12-SS-PH	End fitting 90° G 1" BSP, hose 3/4", butt weld, AISI 316	20	280	In stock	Enquiry
TI-ZBW240-16-16-SS-PH	End fitting 90° G 1" BSP, hose 1", face-to-face, AISI 316	25	280	In stock	Enquiry
TI-ZBW240-20-16-SS-PH	End fitting 90° GW 1.1/4" BSP, hose 1", butt weld, AISI 316	25	210	In stock	Enquiry
TI-ZBW240-20-20-SS-PH	Elbow 90° G 1.1/4" BSP, hose 1.1/4", end face, AISI 316	32	210	In stock	Enquiry
TI-ZBW240-24-20-SS-PH	End fitting 90° GW 1.1/2" BSP, hose 1.1/4", butt, AISI 316	32		In stock	Enquiry
TI-ZBW240-24-24-SS-PH	Elbow 90° G 1.1/2" BSP, hose 1.1/2", butt, AISI 316	38		In stock	Enquiry
TI-ZBW240-32-32-SS-PH	End. 90° G 2" BSP, hose 2", butt, AISI 316	50		In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, flat sealing – requires the use of an additional flat gasket (DKR-F), 90° angled. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.
