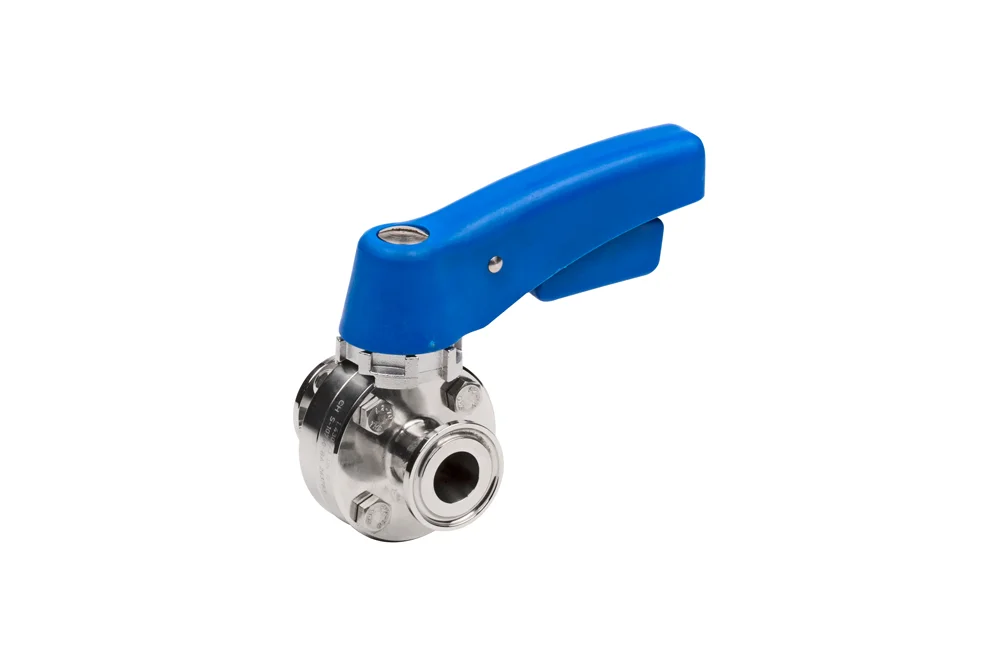

DIN 32676-A hygienic valve with TRICLOVER connections, AISI 304 stainless steel

, /
DIN 32676-A hygienic valve with TRICLOVER connections, AISI 304 stainless steel

Additional information

Material

SS – stainless steel

Stainless steel hygienic valve with TRICLOVER connections, intended for the food, pharmaceutical, cosmetic, biotechnology, and chemical industries, manufactured according to the sanitary standard 3-A (63-03 and 78-01). Internal surface roughness Ra < 0.8 µm. The seal has PZH certification. Note: sizes from DN10 to DN20 are equipped with a plastic lever. Body material: AISI 304 steel. Seal: VMQ (silicone). Operating temperature: from -20°C to +100°C (short steam sterilization up to +120°C; cleaning with weak acid and base solutions up to +70°C). Tightness class: A according to DIN EN 12266-1. Working pressure: 10 bar.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
NM-DIN-CC-010Hygienic valve DN10, DIN 32676-A, 34 TC/34 TC, VMQ, AISI3041010In stock0 zł
Enquiry
NM-DIN-CC-015Hygienic valve DN15, DIN 32676-A, 34 TC/34 TC, VMQ, AISI3041610In stock0 zł
Enquiry
NM-DIN-CC-020Hygienic valve DN20, DIN 32676-A, 34 TC/34 TC, VMQ, AISI3042010In stock0 zł
Enquiry
NM-DIN-CC-025Hygienic valve DN25, DIN 32676-A, 50.5TC/50.5TC, VMQ, AISI3042510In stock0 zł
Enquiry
NM-DIN-CC-032Hygienic valve DN32, DIN 32676-A, 50.5TC/50.5TC, VMQ, AISI3043210In stock0 zł
Enquiry
NM-DIN-CC-040Hygienic valve DN40, DIN 32676-A, 50.5TC/50.5TC, VMQ, AISI3044010In stock0 zł
Enquiry
NM-DIN-CC-050Hygienic valve DN50, DIN 32676-A, 64TC/64TC, VMQ, AISI3045010In stock0 zł
Enquiry
NM-DIN-CC-065Hygienic valve DN65, DIN 32676-A, 91TC/91TC, VMQ, AISI3046510In stock0 zł
Enquiry
NM-DIN-CC-080Hygienic valve DN80, DIN 32676-A, 106TC/106TC, VMQ, AISI3048010In stock0 zł
Enquiry
NM-DIN-CC-100Hygienic valve DN100, DIN 32676-A, 119TC/119TC, VMQ, AISI30410010In stock0 zł
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY
DIN 32676-A hygienic valve with TRICLOVER connections, AISI 304 stainless steel

Stainless steel hygienic valve with TRICLOVER connections, intended for the food, pharmaceutical, cosmetic, biotechnology, and chemical industries, manufactured according to the sanitary standard 3-A (63-03 and 78-01). Internal surface roughness Ra < 0.8 µm. The seal has PZH certification. Note: sizes from DN10 to DN20 are equipped with a plastic lever. Body material: AISI 304 steel. Seal: VMQ (silicone). Operating temperature: from -20°C to +100°C (short steam sterilization up to +120°C; cleaning with weak acid and base solutions up to +70°C). Tightness class: A according to DIN EN 12266-1. Working pressure: 10 bar.

Additional information

Material

SS – stainless steel
