Is the IBC coupling for pallet-loaded containers with GZ hose end, polypropylene compatible with all IBC containers featuring DIN EN 12713 trapezoidal threads and rated for 7 bar?

Yes . the IBC coupling for pallet-loaded containers with GZ hose end, polypropylene is compatible with all IBC containers that have external DIN EN 12713 trapezoidal threads and are rated for 7 bar. The couplingâs external trapezoidal thread conforms to the DIN EN 12713 standard and is designed to be 100% compatible with the standard threads used by various IBC manufacturers. Its polypropylene construction, LDPE seal, and working pressure rating up to 7 bar match the specified container requirements. Operating temperature range (â10Â°C to +70Â°C, temporarily up to +80Â°C) should also be checked against the application conditions to ensure full compatibility.

Can the IBC coupling for pallet-loaded containers with GZ hose end, polypropylene withstand chemical exposure at temperatures up to +70Â°C?

Yes - the IBC coupling for pallet-loaded containers with GZ hose end, polypropylene can be used at temperatures up to +70Â°C, provided the chemicals involved are compatible with polypropylene and LDPE. The couplingâs polypropylene body and LDPE seal are rated for an operating temperature range of -10Â°C to +70Â°C (temporary exposure up to +80Â°C) and a working pressure up to 7 bar. Chemical resistance varies by substance and concentration; aggressive solvents, strong oxidizers, or high concentrations of chlorinated hydrocarbons may attack polypropylene or LDPE. For safety, verify compatibility with the specific chemical (concentration, temperature, exposure time) using manufacturer resistance data or a chemical compatibility chart before use.

IBC coupling for pallet-loaded containers with GZ hose end, polypropylene

Q: Does the IBC coupling for pallet-loaded containers with GZ hose end, polypropylene include an LDPE seal?

Yes. The IBC coupling for pallet-loaded containers with GZ hose end, polypropylene includes an LDPE seal. The product description specifies the seal material as low-density polyethylene (LDPE).

Additional information

Material	P – material (plastic)

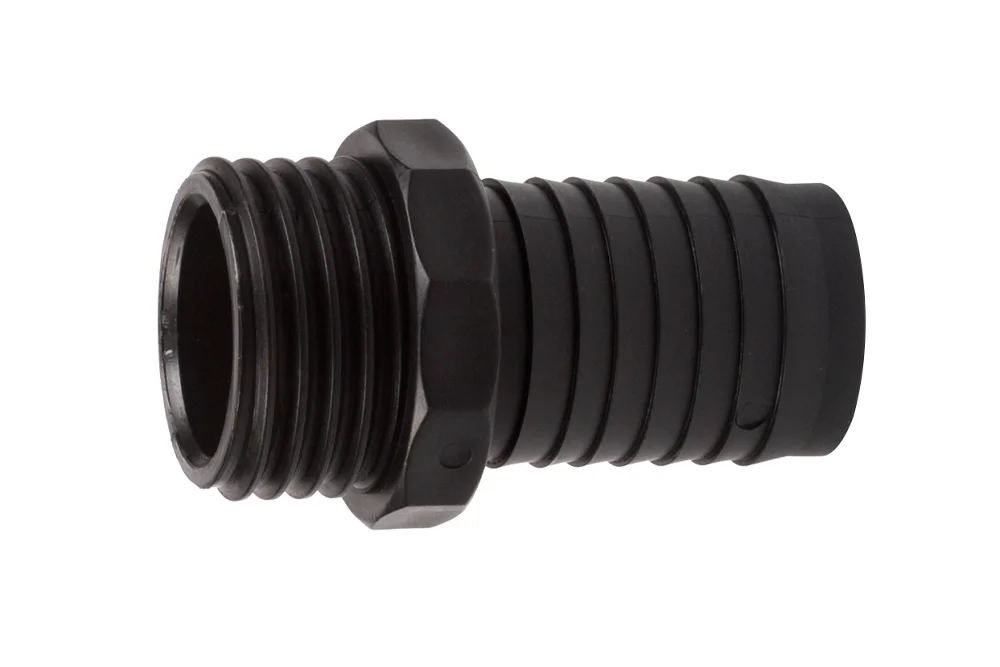

IBC connector with external trapezoidal thread compliant with DIN EN 12713 standard and hose end. The trapezoidal threads, which are standardly equipped on IBC connectors, are 100% compatible with the threads on IBC containers from various manufacturers. Material: polypropylene. Seal: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (temporarily up to +80°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AC-IBM060-H200X	IBC connector with GZ S60x6 / end for hose 2"	50	7	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

IBC connector with external trapezoidal thread compliant with DIN EN 12713 standard and hose end. The trapezoidal threads, which are standardly equipped on IBC connectors, are 100% compatible with the threads on IBC containers from various manufacturers. Material: polypropylene. Seal: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (temporarily up to +80°C).
