Is the IBC connector for pallet containers with GZ/GZ, polypropylene compatible with DIN EN 12713 and BSP external threads?

Yes. The IBC connector for pallet containers with GZ/GZ, polypropylene is compatible with DIN EN 12713 and BSP external threads. Description states it is an IBC connector with external thread compliant with DIN EN 12713 and BSP external thread. The standard trapezoidal threads used on IBC connectors are 100% compatible with threads on IBC containers from various manufacturers. Material (polypropylene), LDPE seal, working pressure (up to 7 bar) and temperature range (-10Â°C to +70Â°C, temporarily up to +80Â°C) further confirm suitability for typical IBC applications.

Does the IBC connector for pallet containers with GZ/GZ, polypropylene fit IBC containers from different manufacturers using DIN EN 12713 and BSP external threads?

Yes. The IBC connector for pallet containers with GZ/GZ, polypropylene fits IBC containers from different manufacturers that use DIN EN 12713 and BSP external threads. The connector features trapezoidal threads that are standard on IBC connectors and are 100% compatible with threads on various manufacturersâ IBC containers. Made of polypropylene with an LDPE seal, it supports working pressures up to 7 bar and operating temperatures from -10Â°C to +70Â°C (briefly up to +80Â°C).

Can the IBC connector for pallet containers with GZ/GZ, polypropylene be used with BSP external-thread adapters?

Yes. The IBC connector for pallet containers with GZ/GZ, polypropylene can be used with BSP external-thread adapters. The product description states it has an external thread compliant with the DIN EN 12713 standard and specifically mentions BSP external thread compatibility. The trapezoidal threads on this IBC connector are standard and 100% compatible with threads on IBC containers from various manufacturers. Made of polypropylene with an LDPE seal, it is rated for working pressures up to 7 bar and an operating temperature range of â10Â°C to +70Â°C (temporary up to +80Â°C), so it will perform correctly within those limits when paired with appropriate BSP external-thread adapters.

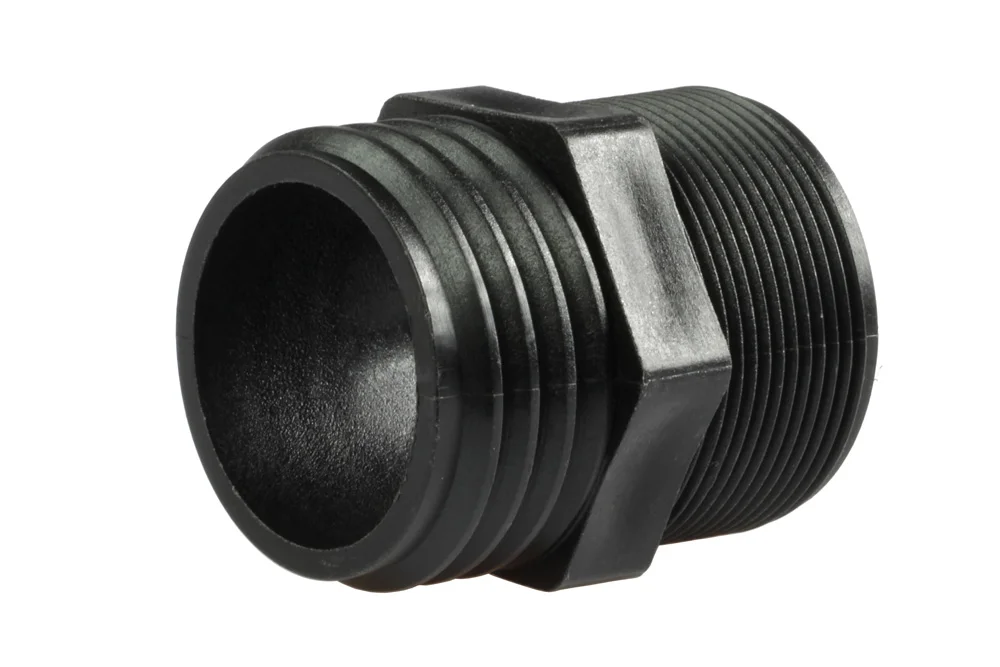

IBC connector for pallet containers with GZ/GZ, polypropylene

Additional information

Material	P – material (plastic)

IBC connector with external thread compliant with DIN EN 12713 standard and BSP external thread. The trapezoidal threads, which are standardly equipped on IBC connectors, are 100% compatible with the threads on IBC containers from various manufacturers. Material: polypropylene. Seal: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (temporarily up to +80°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AC-IBM060-M200	IBC connector with GZ S60x6 / GZ 2" BSP	-	7	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

IBC connector with external thread compliant with DIN EN 12713 standard and BSP external thread. The trapezoidal threads, which are standardly equipped on IBC connectors, are 100% compatible with the threads on IBC containers from various manufacturers. Material: polypropylene. Seal: low-density polyethylene (LDPE). Working pressure: up to 7 bar. Operating temperature: from -10°C to +70°C (temporarily up to +80°C).
