Can Inch tube insert, stainless steel, C760LI fit pneumatic hoses with matching outer diameter flange in AISI 316 material?

Yes . Inch tube insert, stainless steel, C760LI Format can fit pneumatic hoses with a matching outer-diameter flange in AISI 316 material, provided the flange outer diameter of the hose exactly matches the outer diameter of the insert flange. The product description states it is intended for pneumatic hoses with inch diameters and specifies that the outer diameter of the insert flange must match the hoseâs outer flange diameter. Since the insert is stainless steel C760LI Format and the hose flange is AISI 316, mechanical compatibility depends on matching dimensions and proper installation; the different stainless grades (C760LI vs AISI 316) do not prevent fitting, though consider galvanic corrosion, chemical compatibility, and operating conditions. Verify: exact flange OD tolerance, hose wall thickness, insertion depth, seal type, pressure and temperature ratings, and any required surface finish or coating. If those dimensions and ratings align, the insert will fit.

Can Inch tube insert, stainless steel, C760LI be used in pneumatic hoses if the insert flange OD equals the hose OD and material is AISI 316?

Yes-Inch tube insert, stainless steel, C760LI Format can be used in pneumatic hoses if the insert flange OD equals the hose OD and the material is AISI 316, because the product description specifies it is intended for pneumatic hoses with inch diameters and requires the flange outer diameter to match the hose outer diameter. Confirm hose inner/outer dimensions, pressure rating and compatibility with AISI 316 for your specific pneumatic application (temperature, media, and sealing method) before final installation.

Is Inch tube insert, stainless steel, C760LI suitable for pneumatic hoses when the insert flange OD equals the hose OD and material is AISI 316?

Yes. Inch tube insert, stainless steel, C760LI Format is suitable for pneumatic hoses given the described conditions. The product is specifically described as "Insert used for pneumatic hoses with inch diameters," and the key compatibility requirements are met: the outer diameter (OD) of the insert flange equals the hose OD, and the material is AISI 316 (stainless steel), matching the stated material. These factors ensure proper mechanical fit and corrosion resistance appropriate for pneumatic applications. Ensure the hose ID/insert tube diameter also match the intended inch size and verify pressure/temperature ratings and sealing method for your specific system to guarantee full operational compatibility.

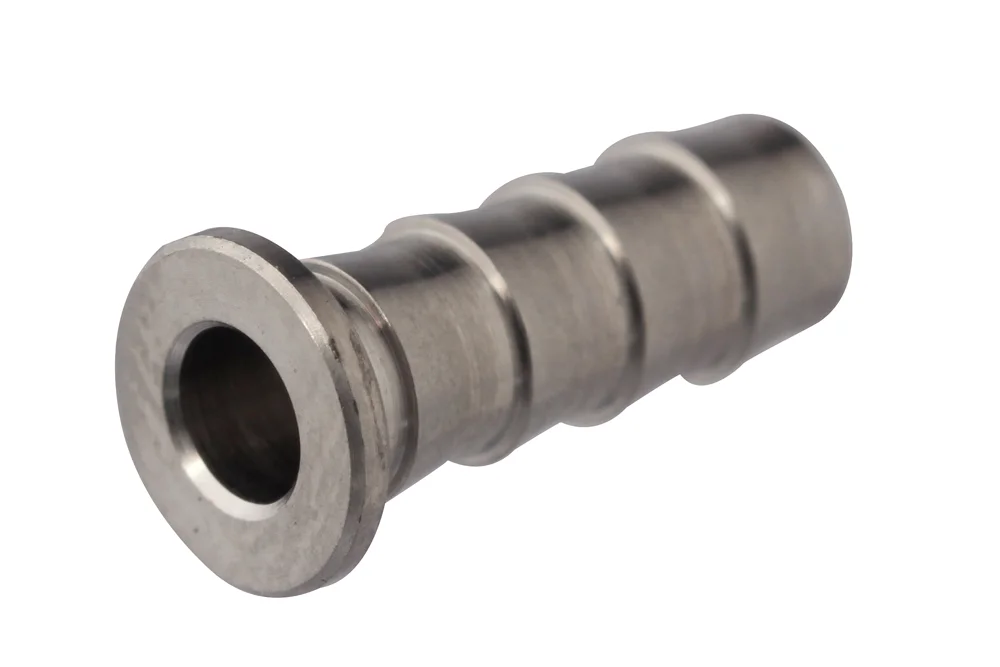

Insert for an inch tube, steel stainless, C760LI

All products, LET-LOK precision connectors/

Additional information

Material	SS – stainless steel

Insert used for hoses pneumatic o diameter inch. The outer diameter of the insert flange must match the outer diameter of the hose. Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-LC760LI-03-02-SS	Insert for hose 3/16" x 1/8", SS	-	-	In stock	Enquiry
HM-LC760LI-04-0,17-SS	Insert for hose 1/4" x 0.17", SS	-	-	In stock	Enquiry
HM-LC760LI-04-02-SS	Insert for hose 1/4" x 1/8", SS	-	-	In stock	Enquiry
HM-LC760LI-04-03-SS	Insert for hose 1/4" x 3/16", SS	-	-	In stock	Enquiry
HM-LC760LI-05-02-SS	Insert for hose 5/16" x 1/8", SS	-	-	In stock	Enquiry
HM-LC760LI-05-03-SS	Insert for hose 5/16" x 3/16", SS	-	-	In stock	Enquiry
HM-LC760LI-05-04-SS	Insert for hose 5/16" x 1/4", SS	-	-	In stock	Enquiry
HM-LC760LI-06-03-SS	Insert for hose 3/8" x 3/16", SS	-	-	In stock	Enquiry
HM-LC760LI-06-04-SS	Insert for hose 3/8" x 1/4", SS	-	-	In stock	Enquiry
HM-LC760LI-08-04-SS	Insert for hose 1/2" x 1/4", SS	-	-	In stock	Enquiry
HM-LC760LI-08-06-SS	Insert for hose 1/2" x 3/8", SS	-	-	In stock	Enquiry
HM-LC760LI-10-06-SS	Insert for hose 5/8" x 3/8", SS	-	-	In stock	Enquiry
HM-LC760LI-10-08-SS	Insert for hose 5/8" x 1/2", SS	-	-	In stock	Enquiry
HM-LC760LI-12-08-SS	Insert for hose 3/4" x 1/2", SS	-	-	In stock	Enquiry
HM-LC760LI-12-10-SS	Insert for hose 3/4" x 5/8", SS	-	-	In stock	Enquiry
HM-LC760LI-16-12-SS	Insert for hose 1" x 3/4", SS	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Insert used for hoses pneumatic o diameter inch. The outer diameter of the insert flange must match the outer diameter of the hose. Material: steel AISI 316.
