Is the Quad coupling K, carbon steel, zinc-nickel suitable for outdoor use in corrosive environments?

Short answer: Yes, the Quad coupling K, carbon steel, zinc-nickel Format can be suitable for outdoor use in corrosive environments, with caveats. Why: The part is a DIN 2353 four-way fitting, type K (24Â° socket with external metric threads), made of carbon steel and coated with a zincânickel plating 6â10 Âµm thick. Zincânickel coatings are known for significantly improved corrosion resistance compared with plain zinc; the stated performance.up to 720 hours in a neutral salt spray (NSS) test without visible corrosion.indicates strong protection against saline and many outdoor corrosive conditions. Caveats and considerations: - 720 h NSS is a good benchmark but does not guarantee indefinite lifetime. Real-world longevity depends on exposure severity (marine atmosphere, industrial pollutants, temperature cycles, UV, mechanical wear, galvanic coupling with other metals). - Mechanical damage, abrasion or sealing surfaces scratched during installation can reduce local protection. - For extremely aggressive environments (direct seawater immersion, splash zones, highly acidic/alkaline atmospheres) stainless steel or higherâgrade corrosion-resistant materials may be preferable. - Installation practice (correct sealing, avoidance of dissimilar metal galvanic couples, regular inspection) will affect service life. Conclusion: For most outdoor, corrosive environments.including coastal and industrial atmospheres.the Quad coupling K, carbon steel, zinc-nickel Format is a suitable choice, provided expected exposure is similar to conditions represented by the 720 h NSS rating and proper installation/maintenance is followed. For the most aggressive conditions consider stainless alternatives.

Does the Quad coupling K, carbon steel, zinc-nickel comply with DIN 2353 pressure ratings for LL, L, and S series?

Yes. Quad coupling K, carbon steel, zinc-nickel is described as a DIN 2353 four-way fitting, type K (24Â° DIN 2353 socket with external metric threads) and is explicitly available in LL (very light), L (light) and S (heavy) series. Therefore it conforms to the DIN 2353 series designations and their corresponding pressure/size classifications. The zinc-nickel coating (6â10 Âµm, high corrosion resistance) and carbon steel material do not change the series compliance specified by DIN 2353.

What maintenance is required to preserve the zincânickel coating on the Quad coupling K, carbon steel, zincânickel?

To preserve the zincânickel coating on the Quad coupling K, carbon steel, zincânickel, follow these maintenance guidelines: - Keep components clean: remove dirt, grease and contaminants regularly with a mild, nonâchlorinated detergent and clean water. Rinse thoroughly and dry to avoid trapped moisture. - Avoid aggressive chemicals: do not use strong acids, alkalis, chlorinated solvents or abrasive cleaners that can damage the coating. - Minimize mechanical abrasion: handle and store fittings carefully to prevent scratches, gouges or chafing that expose base steel. Use protective packing or soft supports during transport and assembly. - Protect against galvanic corrosion: avoid direct contact with dissimilar metals that can create a galvanic couple in the presence of an electrolyte. Use insulating washers or coatings where dissimilar metals meet. - Inspect periodically: check for coating damage, corrosion or buildup of deposits. Pay attention to threads and sealing surfaces; damaged areas should be cleaned and assessed. - Local touchâup: for minor coating damage, use approved zincânickel compatible touchâup paints or coldâgalvanizing sprays designed for zincânickel systems. Ensure surfaces are clean, dry and prepared per product instructions. - Environmental control: store fittings in a dry, ventilated area away from salt spray, acidic fumes or high humidity to maintain the coatingâs corrosion resistance (the coating provides up to ~720 hours salt spray resistance when intact). - Proper assembly: avoid overâtorquing and use recommended tools and techniques to minimize coating wear on sealing faces and threads. Where threads are sealed with tape or compounds, select ones compatible with zincânickel. - Replacement when necessary: if coating is heavily damaged or base metal is corroded, replace the component to ensure system integrity. Following these steps will help maintain the zincânickel coatingâs protective properties on the Quad coupling K, carbon steel, zincânickel and extend service life.

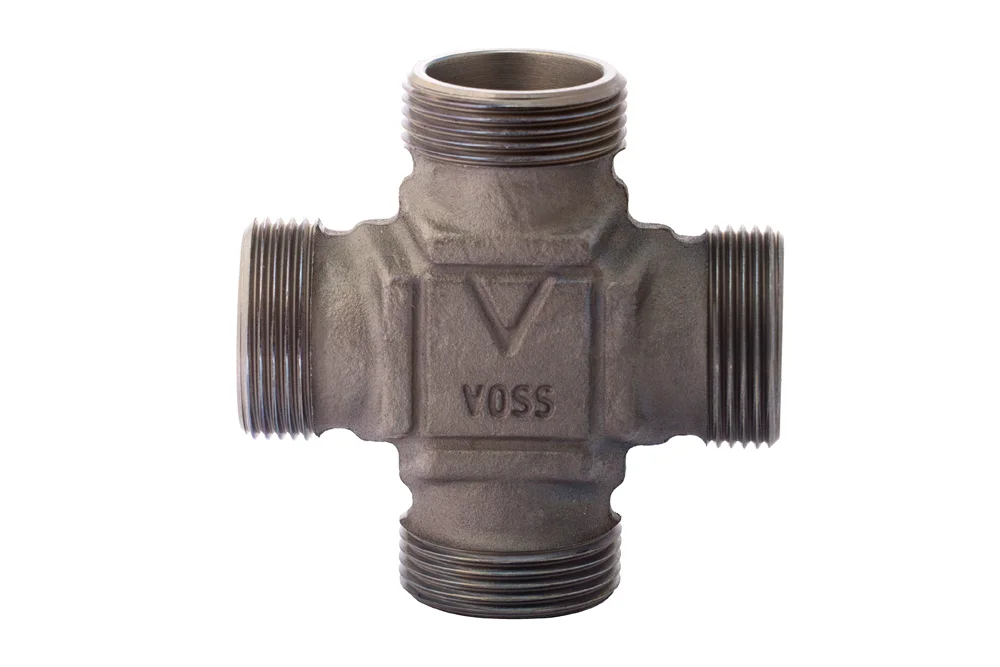

Quad coupling K, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

DIN 2353 four-way fitting, type K: 24° DIN 2353 socket with external metric threads. Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-K-04LL-CN	DIN 2353 fitting K 4LL, Zn-Ni	-	100	In stock	Enquiry
HD-K-06L-CN	DIN 2353 fitting K 6L, Zn-Ni	-	315	In stock	Enquiry
HD-K-06LL-CN	DIN 2353 fitting K 6LL, Zn-Ni	-	100	In stock	Enquiry
HD-K-06S-CN	DIN 2353 fitting K 6S, Zn-Ni	-	630	In stock	Enquiry
HD-K-08L-CN	DIN 2353 fitting K 8L, Zn-Ni	-	315	In stock	Enquiry
HD-K-08LL-CN	DIN 2353 fitting K 8LL, Zn-Ni	-	100	In stock	Enquiry
HD-K-08S-CN	DIN 2353 fitting K 8S, Zn-Ni	-	630	In stock	Enquiry
HD-K-10L-CN	DIN 2353 fitting K 10L, Zn-Ni	-	315	In stock	Enquiry
HD-K-10S-CN	DIN 2353 fitting K 10S, Zn-Ni	-	630	In stock	Enquiry
HD-K-12L-CN	DIN 2353 fitting K 12L, Zn-Ni	-	315	In stock	Enquiry
HD-K-12S-CN	DIN 2353 fitting K 12S, Zn-Ni	-	630	In stock	Enquiry
HD-K-14S-CN	DIN 2353 fitting K 14S, Zn-Ni	-	630	In stock	Enquiry
HD-K-15L-CN	DIN 2353 fitting K 15L, Zn-Ni	-	315	In stock	Enquiry
HD-K-16S-CN	DIN 2353 fitting K 16S, Zn-Ni	-	400	In stock	Enquiry
HD-K-18L-CN	DIN 2353 fitting K 18L, Zn-Ni	-	315	In stock	Enquiry
HD-K-20S-CN	DIN 2353 fitting K 20S, Zn-Ni	-	400	In stock	Enquiry
HD-K-22L-CN	DIN 2353 fitting K 22L, Zn-Ni	-	160	In stock	Enquiry
HD-K-25S-CN	DIN 2353 fitting K 25S, Zn-Ni	-	400	In stock	Enquiry
HD-K-28L-CN	DIN 2353 fitting K 28L, Zn-Ni	-	160	In stock	Enquiry
HD-K-30S-CN	DIN 2353 fitting K 30S, Zn-Ni	-	400	In stock	Enquiry
HD-K-35L-CN	DIN 2353 fitting K 35L, Zn-Ni	-	160	In stock	Enquiry
HD-K-38S-CN	DIN 2353 fitting K 38S, Zn-Ni	-	315	In stock	Enquiry
HD-K-42L-CN	DIN 2353 fitting K 42L, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 four-way fitting, type K: 24° DIN 2353 socket with external metric threads. Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
