Is the M16x1.5 measuring connection with metal plug and male thread compatible with hydraulic systems operating at 630 bar and temperatures from -30Â°C to +120Â°C?

Yes. The M16x1.5 measuring connection with metal plug and male thread is specified for hydraulic systems with a working pressure of 630 bar and an operating temperature range of -30Â°C to +120Â°C. Its construction.steel with zinc-nickel coating.and NBR sealing are compatible with typical hydraulic fluids and the listed pressure/temperature conditions. Ensure fluid compatibility with NBR and confirm system-specific requirements (dynamic sealing, media, and rapid temperature cycling) for safety and longevity.

Can the M16x1.5 measuring connection with metal plug and male thread be used with NBR seals in hydraulic systems at 630 bar?

Yes - the M16x1.5 measuring connection with metal plug and male thread can be used with NBR seals in hydraulic systems at 630 bar, provided operating conditions remain within the stated limits. The product specification lists NBR sealing and a working pressure of 630 bar, and an operating temperature range of â30Â°C to +120Â°C. Ensure fluid compatibility with NBR (nitrile) and confirm dynamic conditions (pressure spikes, vibration, or prolonged high temperature) do not exceed these limits; otherwise consider a different seal material (e.g., FKM) or additional protective measures.

Does the M16x1.5 measuring connection with metal plug and male thread resist corrosion with zinc-nickel coating in hydraulic systems?

Yes. the M16x1.5 measuring connection with metal plug and male thread Format offers good corrosion resistance thanks to its steel construction with zincânickel coating. Zincânickel (ZnâNi) platings provide significantly better protection than plain zinc, especially in harsh environments and where hydraulic fluids, salts or moisture are present. Combined with the NBR sealing (compatible with many hydraulic fluids) and the robust design for high working pressure (630 bar) and wide temperature range (â30Â°C to +120Â°C), this connection is suitable for hydraulic systems requiring enhanced corrosion resistance. Caveats: - Longâterm resistance depends on environment (marine/salty, acidic or highly alkaline conditions accelerate wear). - Mechanical damage, improper installation or aggressive fluids outside NBR compatibility can compromise the coating and seal. - For extreme corrosive conditions, consider additional protection (e.g., stainless steel components or supplementary coatings).

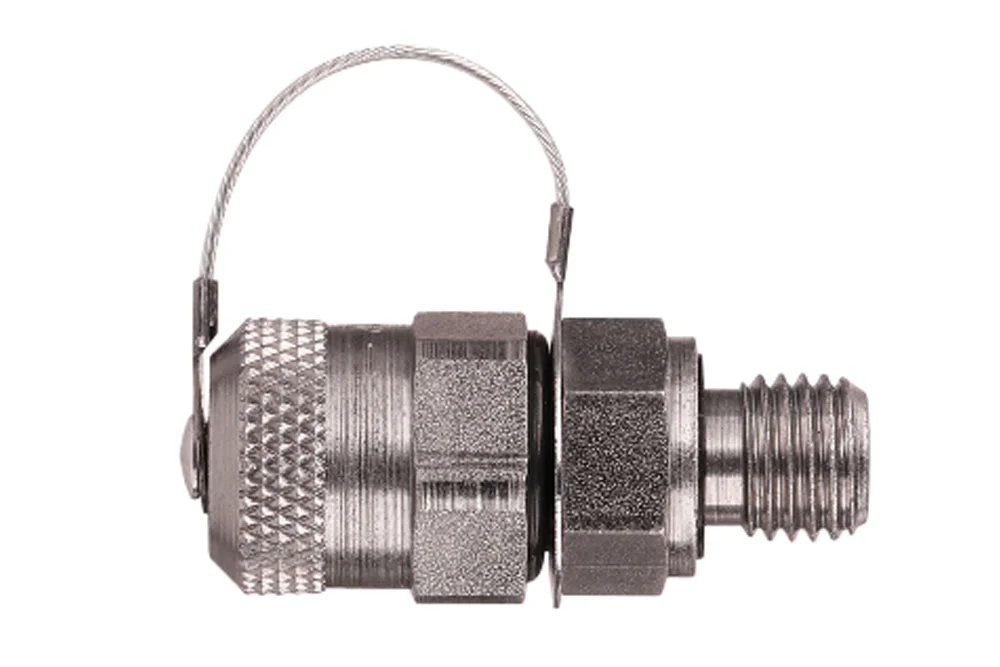

M16x1.5 measurement connection with metal cap and male thread

All products, Measurement couplings/

Additional information

Material	CS – steel (cast iron)

M16x1.5 measurement connection (military standard) with a metal cap and a BSP male thread for connection to a hydraulic system. Material: steel with zinc-nickel coating. Sealing: NBR. Working pressure: 630 bar. Operating temperature: from -30°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
PS-616-01-204-26	Measurement coupling M16x1.5, connection 1/4" BSP male type E, metal cap	-	630	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

M16x1.5 measurement connection (military standard) with a metal cap and a BSP male thread for connection to a hydraulic system. Material: steel with zinc-nickel coating. Sealing: NBR. Working pressure: 630 bar. Operating temperature: from -30°C to +120°C.
