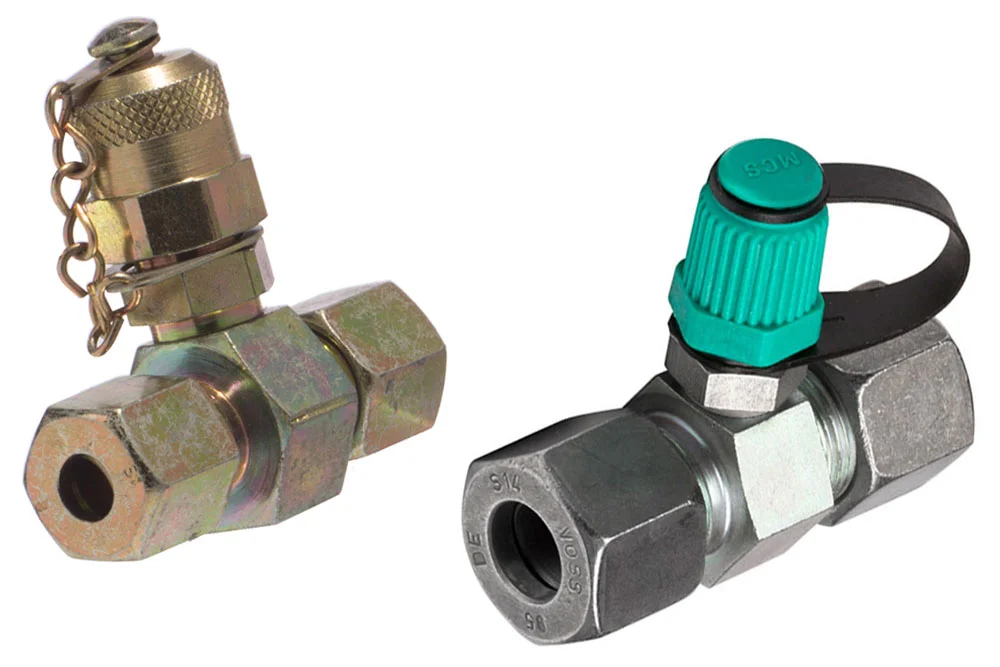

The measurement coupling is designed according to the requirements of ISO 15171-2. Used primarily for pressure diagnostics in power hydraulic systems, it can also be used for lubrication, venting, oil sampling and micro-hydraulics. Intended for hydraulic oil and mineral oils, made of carbon steel with a zinc-nickel coating, with NBR seals. Available with a metal cap or a plastic cap. The coupling has the ISO 15171-2 standard M16x2 thread on the measuring end, and appropriate connections to the hydraulic system per DIN 2353 for pipes, 24° cone, nuts and cutting rings. Available as L (light series) and S (heavy series). Material: steel with zinc-nickel coating. Working pressure: from 100 bar to 630 bar – depending on the type. Sealing: NBR. Operating temperature: from -30°C to +120°C (from -30°C to +100°C with a plastic cap).
List of product variants
Article number
Product variant name
DN
BAR
Availability
Price
Quantity
Actions
Catalogue
PS-620-04-006-50
Measurement coupling M16x2, connection DIN2353 2xM12x1.5, 06L, plastic cap
The measurement coupling is designed according to the requirements of ISO 15171-2. Used primarily for pressure diagnostics in power hydraulic systems, it can also be used for lubrication, venting, oil sampling and micro-hydraulics. Intended for hydraulic oil and mineral oils, made of carbon steel with a zinc-nickel coating, with NBR seals. Available with a metal cap or a plastic cap. The coupling has the ISO 15171-2 standard M16x2 thread on the measuring end, and appropriate connections to the hydraulic system per DIN 2353 for pipes, 24° cone, nuts and cutting rings. Available as L (light series) and S (heavy series). Material: steel with zinc-nickel coating. Working pressure: from 100 bar to 630 bar – depending on the type. Sealing: NBR. Operating temperature: from -30°C to +120°C (from -30°C to +100°C with a plastic cap).
Additional information
Material
CS – steel (cast iron)
