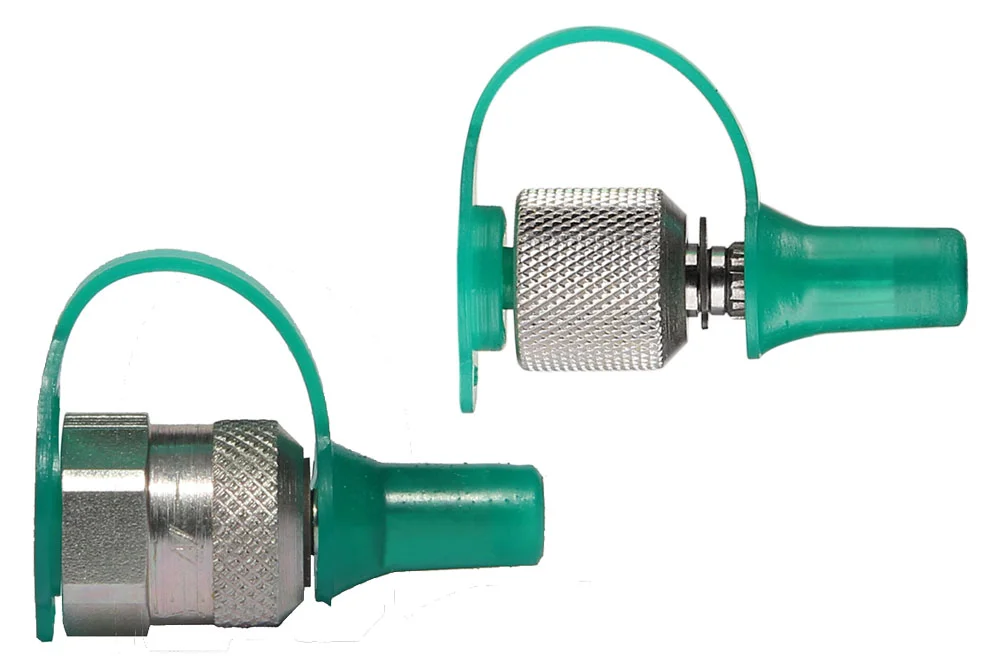

Measurement connection with female thread, straight, with measuring hose end

Additional information

Material	CS – steel (cast iron)

Measurement connection with an M16x2 (ISO 1517-2), M16x1.5 or S12.65×1.5 female thread and a measuring hose end, supplied complete with a ferrule. Material: steel with zinc-nickel coating or AISI 316 steel. Working pressure: 500 bar or 630 bar – depending on size. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PS-801-10-125-00	Fitting measurement female S12.65x1.5, hose 2x5 mm, with sleeve	2	630	In stock	Enquiry
PS-801-10-161-00	Fitting measurement M16x1.5 female, hose 2x5 mm, with sleeve	2	630	In stock	Enquiry
PS-801-10-162-00	Fitting measurement M16x2 female, hose 2x5 mm, with sleeve	2	630	In stock	Enquiry
PS-804-10-162-00	Fitting measurement M16x2 female, hose 4x8 mm, with sleeve	4	500	In stock	Enquiry
PS-811-10-162-00	Fitting measurement M16x2 female, hose 2x5 mm, with sleeve, AISI 316	2	630	In stock	Enquiry
PS-814-10-162-00	Fitting measurement M16x2 female, hose 4x8 mm, with sleeve, AISI 316	4	500	In stock	Enquiry
