Can Measuring plug DN 1.2 with plastic or metal end cap and male thread, TEMA 100 withstand 90% vacuum and up to 600 bar (400 bar for TA-M-120)?

Yes. Measuring plug DN 1.2 with plastic or metal end cap and male thread, TEMA 100 is designed to withstand up to 90% vacuum and the specified working pressures. The product description states the valve ensures leak-free connection, disconnection and sealing even at 90% vacuum. For working pressure it lists 600 bar generally, and 400 bar specifically for plugs TA-M-120, so the plug meets those pressure ratings. Materials and sealing (galvanized/hardened steel and NBR O-rings, type A or B front O-ring arrangements) support these capabilities.

Is Measuring plug DN 1.2 with plastic or metal end cap and male thread, TEMA 100 suitable for use in hydraulic systems with both static and dynamic pressure measurements?

Yes. Measuring plug DN 1.2 with plastic or metal end cap and male thread, TEMA 100 is suitable for hydraulic systems with both static and dynamic pressure measurements. It is designed for measuring static, dynamic pressure and vacuum, features a leakâproof valve for connection/disconnection (effective even at 90% vacuum), and is made of hardened/galvanized steel with NBR sealing. Working pressure up to 600 bar (400 bar for TAâMâ120) supports typical hydraulic pressures. Choose type A or B sealing (recessed or front Oâring) per your installation and compatibility requirements.

Does Measuring plug DN 1.2 with plastic or metal end cap and male thread, TEMA 100 require special tools for leak-free disconnect under pressure?

Measuring plug DN 1.2 with plastic or metal end cap and male thread, TEMA 100 does not require special tools for leak-free disconnect under pressure. The plug features an integrated valve that permits safe connection, disconnection and sealing even under vacuum (up to 90% vacuum) and high working pressures (600 bar; 400 bar for TA-M-120 versions). The external-thread connections are sealed by an O-ring (type A recessed in the front surface or type B at the front surface), and the hardened, galvanized steel construction with NBR sealing is designed for durable, maintenanceâfree operation. For routine use, standard hand-tightening and the normal wrench used for the specified thread size are sufficient; no proprietary or additional specialized equipment is needed to achieve a leak-free disconnect under pressure, provided the plug and mating port are in good condition and installation follows manufacturer torque/recommendations.

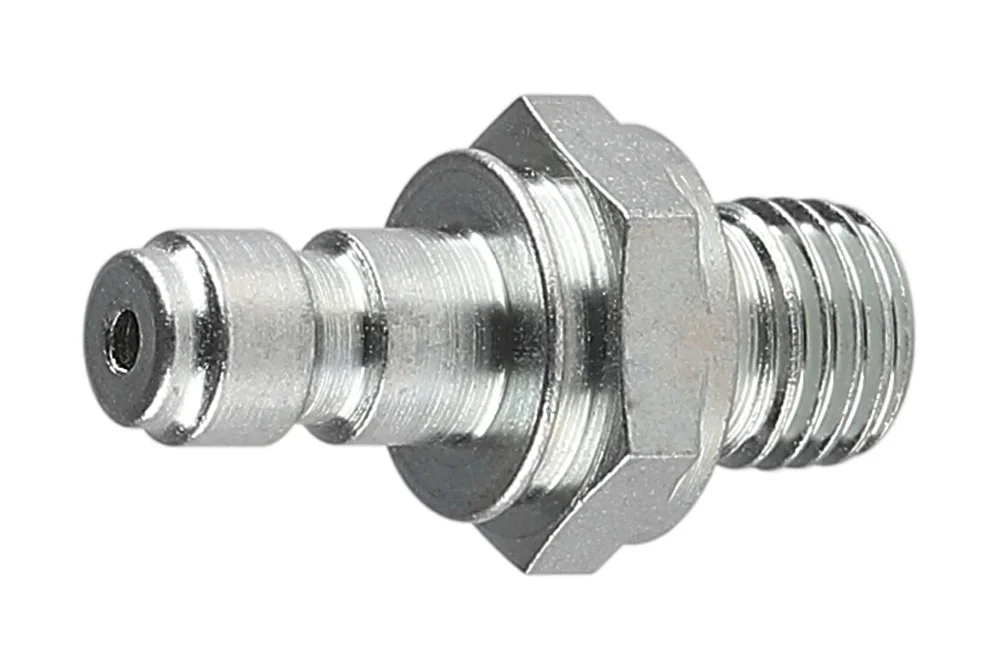

Measuring plug DN 1.2 with plastic or metal cap and male thread, TEMA 100

All products, Measurement sets/

Additional information

Material	CS – steel (cast iron)

Miniature measuring quick coupling plug DN1.2, with a plastic or metal cap and a male thread, of Swedish manufacture, intended for measuring static and dynamic pressure and vacuum in hydraulic systems. The plug is equipped with a valve that ensures leak-free connection and disconnection and tightness, even at 90% vacuum. The measuring plugs are made of hardened steel, durable and maintenance-free. Connections with a male thread are sealed with an O-ring recessed into the face surface (type A) or an O-ring at the face surface (type B). Material: galvanized steel. Sealing: NBR. Working pressure: 600 bar (for TA-M-120 plugs: 400 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TA-M-120	Plug measurement TEMA SYSTEM 100, 1/8" BSP male, type A, plastic cap	-	400	In stock	Enquiry
TA-M-120-126	Plug measurement TEMA SYSTEM 100, 1/8" BSP male, type A, metal cap	-	400	In stock	Enquiry
TA-M-121-125	Plug measurement TEMA SYSTEM 100, 1/4" BSP male, type A, plastic cap	-	600	In stock	Enquiry
TA-M-121-126	Plug measurement TEMA SYSTEM 100, 1/4" BSP male, type A, metal cap	-	600	In stock	Enquiry
TA-M-122-125	Plug measurement TEMA SYSTEM 100, 1/4" BSP male, type B, plastic cap	-	600	In stock	Enquiry
TA-M-122-126	Plug measurement TEMA SYSTEM 100, 1/4" BSP male, type B, metal cap	-	600	In stock	Enquiry
TA-M-123-125	Plug measurement TEMA SYSTEM 100, M12x1.5 male, type A, plastic cap	-	600	In stock	Enquiry
TA-M-123-126	Plug measurement TEMA SYSTEM 100, M12x1.5 male, type A, metal cap	-	600	In stock	Enquiry
TA-M-128-125	Plug measurement TEMA SYSTEM 100, M10x1 male, type A, plastic cap	-	600	In stock	Enquiry
TA-M-128-126	Plug measurement TEMA SYSTEM 100, M10x1 male, type A, metal cap	-	600	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature measuring quick coupling plug DN1.2, with a plastic or metal cap and a male thread, of Swedish manufacture, intended for measuring static and dynamic pressure and vacuum in hydraulic systems. The plug is equipped with a valve that ensures leak-free connection and disconnection and tightness, even at 90% vacuum. The measuring plugs are made of hardened steel, durable and maintenance-free. Connections with a male thread are sealed with an O-ring recessed into the face surface (type A) or an O-ring at the face surface (type B). Material: galvanized steel. Sealing: NBR. Working pressure: 600 bar (for TA-M-120 plugs: 400 bar).
