Is the Miniature reducing valve RML (wire - thread) suitable for use with oiled and non-oiled filtered compressed air at operating temperatures from -20Â°C to +60Â°C?

Yes. The Miniature reducing valve RML (wire - thread) is suitable for use with both oiled and nonâoiled filtered compressed air within the specified operating temperature range of â20 Â°C to +60 Â°C. Its technical data state an operating temperature from â20 Â°C to +60 Â°C and list the medium as filtered compressed air, oiled or nonâoiled, with a working pressure up to 10 bar and an output pressure range of 1â8 bar, which matches the conditions you specified.

Does the Miniature reducing valve RML (wire - thread) have internal seals compatible with industrial oils and lubricants?

Yes. The Miniature reducing valve RML (wire - thread) is specified for use with filtered compressed air, both oiled and non-oiled, and its outlet uses a threaded connection with an O-ring. This indicates the internal seals (including the O-ring at the outlet and sealing materials used internally) are compatible with industrial lubricants and oiled air service within the stated operating conditions (working pressure up to 10 bar, output 1â8 bar, temperature â20Â°C to +60Â°C). If you need confirmation for a specific oil or lubricant (chemical compatibility or extended temperature/pressure limits), provide the lubricant specification and the manufacturer can confirm seal material compatibility.

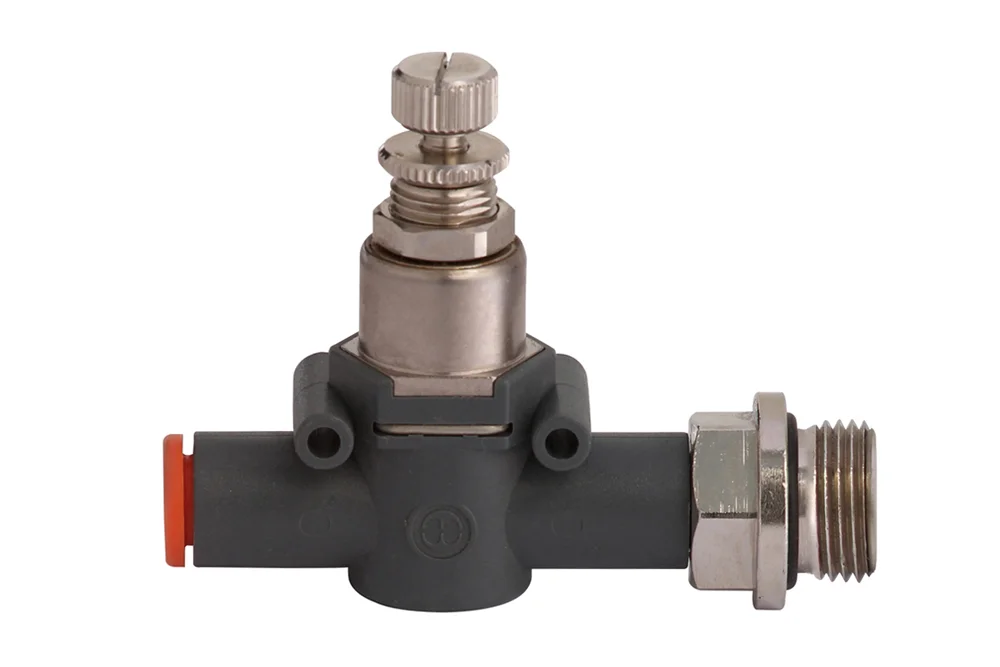

Miniature reducing valve RML (wire – thread)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

Miniature RML type pressure reducing valve (plug-in connection at the inlet and threaded connection with an O-ring at the outlet) designed to reduce higher pressure to lower pressure downstream of the valve. Output pressure range: 1 ÷ 8 bar. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9061508	RML pressure reducing valve, 6 mm hose - GZ BSP 1/8" (outlet)	-	10	In stock	Enquiry
MW-9061509	RML pressure reducing valve, 6 mm hose - GZ BSP 1/4" (outlet)	-	10	In stock	Enquiry
MW-9061510	RML pressure reducing valve, 8 mm hose - GZ BSP 1/8" (outlet)	-	10	In stock	Enquiry
MW-9061511	RML pressure reducing valve, 8 mm hose - GZ BSP 1/4" (outlet)	-	10	In stock	Enquiry
MW-9061512	RML pressure reducing valve, 8 mm hose - GZ BSP 3/8" (outlet)	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature RML type pressure reducing valve (plug-in connection at the inlet and threaded connection with an O-ring at the outlet) designed to reduce higher pressure to lower pressure downstream of the valve. Output pressure range: 1 ÷ 8 bar. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.
