Miniature coupling socket DN2.7 for air, with valve, with hose connection, nickel-plated brass, 16 bar

Q: Is the Miniature coupling socket DN2.7 for air, with valve, with hose connection, nickel-plated brass, 16 bar compatible with RECTUS 20 and similar DN2.7 couplings?

Yes. The Miniature coupling socket DN2.7 for air, with valve, with hose connection, nickel-plated brass, 16 bar is compatible with RECTUS 20 and other DN2.7 couplings that share the same plug profile. The product description explicitly states interchangeability with RECTUS 20 and DN 2.7 quick couplings from other manufacturers with the same plug profile. Ensure mating couplings are specified for the DN2.7/RECTUS 20 profile and rated for the same media (air, nitrogen, other non-flammable gases), pressure (up to 16 bar), temperature range (â20Â°C to +100Â°C) and sealing material (NBR) for full performance and safety.

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	2

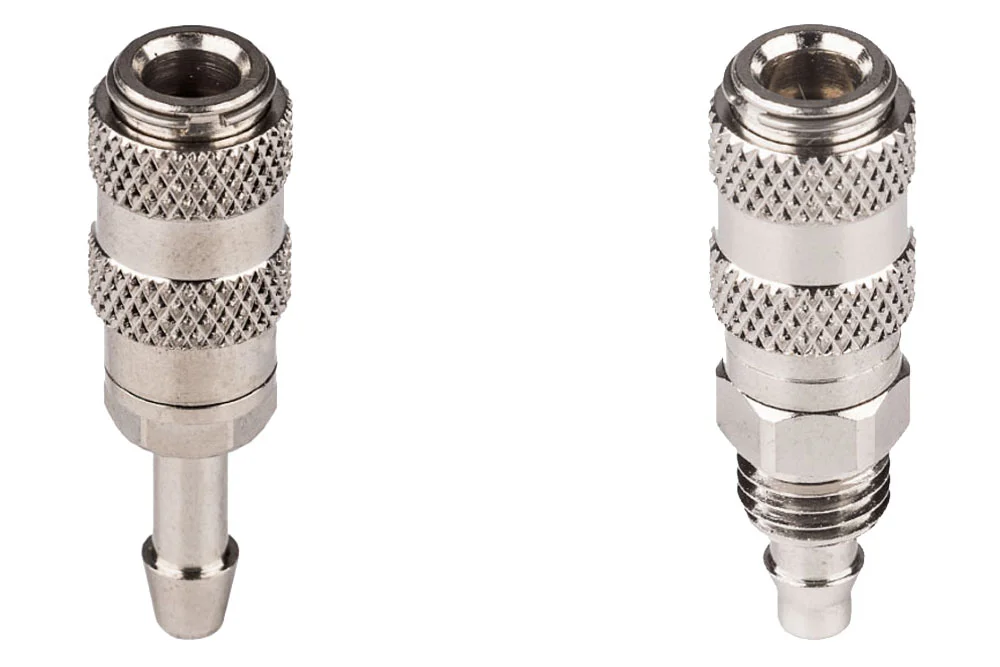

Miniature quick coupling socket DN 2.7 with valve, with a corrugated hose end or with a plastic hose end, screwable clamping sleeve. Quick couplings are used wherever small installation dimensions are required, e.g., in medical technology, measurement, and laboratory applications. Interchangeable with RECTUS 20 and DN 2.7 quick couplings from other manufacturers with the same plug profile. Application: pneumatics (air, nitrogen, other non-flammable gases). Working pressure: 16 bar. Flow rate: 228 l/min, Pe = 6 bar, Δp = 1 bar (air). Operating temperature: from -20°C to +100°C. Material: nickel-plated brass, pins and spring made of stainless steel. Sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-MIKRO-GK-3	Quick coupling socket MIKRO DN2.7, for 3 mm hose, nickel-plated brass	3	16	In stock	Enquiry
EW-MIKRO-GK-4	Quick coupling socket MIKRO DN2.7, for 4 mm hose, nickel-plated brass	4	16	In stock	Enquiry
EW-MIKRO-GK-4X3	Quick coupling socket MIKRO DN2.7, for hose 4x3 mm, nickel-plated brass	3	16	In stock	Enquiry
EW-MIKRO-GK-5X3	Quick coupling socket MIKRO DN2.7, for hose 5x3 mm, nickel-plated brass	3	16	In stock	Enquiry
EW-MIKRO-GK-6X4	Quick coupling socket MIKRO DN2.7, for hose 6x4 mm, nickel-plated brass	4	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature quick coupling socket DN 2.7 with valve, with a corrugated hose end or with a plastic hose end, screwable clamping sleeve. Quick couplings are used wherever small installation dimensions are required, e.g., in medical technology, measurement, and laboratory applications. Interchangeable with RECTUS 20 and DN 2.7 quick couplings from other manufacturers with the same plug profile. Application: pneumatics (air, nitrogen, other non-flammable gases). Working pressure: 16 bar. Flow rate: 228 l/min, Pe = 6 bar, Δp = 1 bar (air). Operating temperature: from -20°C to +100°C. Material: nickel-plated brass, pins and spring made of stainless steel. Sealing: NBR.
