How often should the Oiler, lubricator for pneumatic tools, type 31710 be refilled when used at 109 l/min?

Oiler, lubricator for pneumatic tools, type 31710 should be refilled approximately every 10 hours when used at a flow rate of 109 l/min. This is based on the factory-set dosing of ~50 mmÂ³ of oil per 1 mÂ³ of air; at 109 l/min that dosing yields one tank dose lasting about 10 hours. Use oil EW-583 (ordered separately).

Can Oiler, lubricator for pneumatic tools, type 31710 be used with oils other than EW-583 and will it affect dosing or tool performance?

Oiler, lubricator for pneumatic tools, type 31710 can be used with oils other than EW-583, but choose oils with similar viscosity and compatibility with NBR seals, acetal tank and aluminium housing. The unitâs oil dosing is factory-set to ~50 mmÂ³ per 1 mÂ³ of airflow (one dose â10 hours at 109 l/min); using a significantly thinner or much thicker oil may change aerosolization and thus actual delivered dose and tool lubrication. Oils with similar properties to EW-583 should not noticeably affect dosing or tool performance; incompatible or very different-viscosity oils can reduce mist formation, alter dosing rate and potentially affect tool wear or internal corrosion. Always test any alternate oil under expected pressure (recommended 6.2 bar, max 8 bar) and temperature conditions (-5Â°C to +60Â°C) before regular use.

Can Oiler, lubricator for pneumatic tools, type 31710 be used safely below the recommended 6.2 bar pressure?

Oiler, lubricator for pneumatic tools, type 31710 can be used below the recommended 6.2 bar, but with caveats. The deviceâs maximum working pressure is 8 bar and the recommended operating pressure is 6.2 bar; operating below 6.2 bar will reduce the air flow and thus the oil-mist generation and dosing rate, because the oil mist is produced by the flowing air stream and the oil dosing is calibrated (â50 mmÂ³ per 1 mÂ³ of air). At lower pressures you can expect: - reduced oil delivery per unit time (may lead to insufficient lubrication for high-demand tools), - longer interval between refill doses (dose volume per mÂ³ remains factory-set, but total delivered oil falls with reduced flow), - potentially less effective atomization of oil, especially near the lower end of the operating range or close to the minimum temperature limit (-5Â°C). If the toolâs required lubrication demand is low at the reduced pressure and the flow remains adequate to create an oil mist, safe use is possible. To ensure safe and reliable operation: verify actual air flow at the lower pressure, confirm the tool remains properly lubricated during typical use, and monitor wear/corrosion of tool internals. If in doubt or if lubrication seems insufficient, increase pressure toward the recommended 6.2 bar or consult the manufacturer.

Oiler, Grease nipple for tools pneumatic, type 31710

All products, Special air guns/

Additional information

Maximum operating temperature [°C]	50
Minimum operating temperature [°C]	-5
Standard length [m]	50

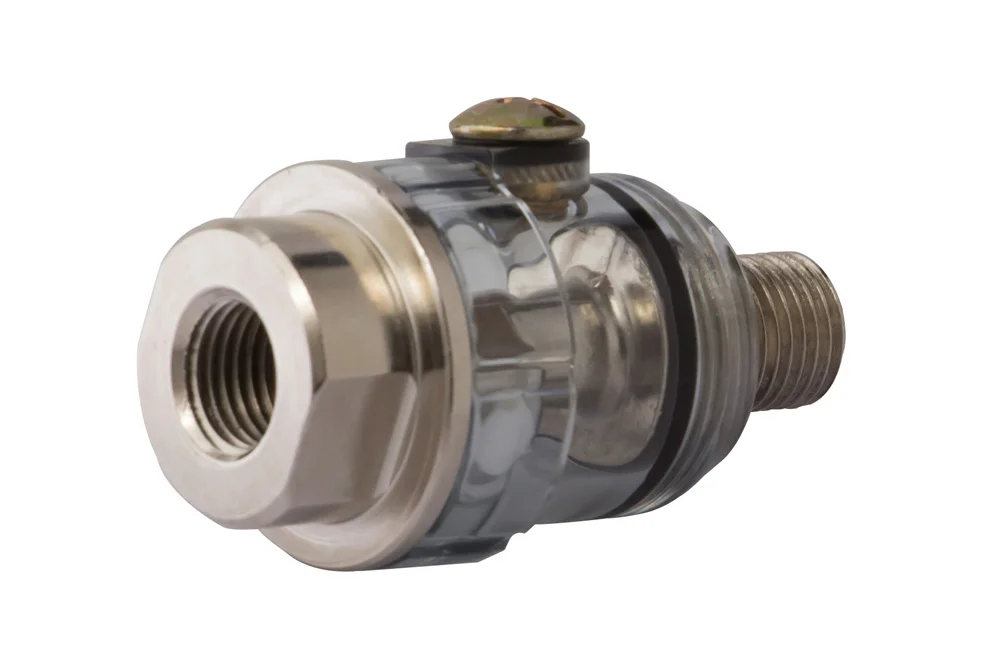

Mini Grease nipple Intended for direct connection for tools pneumatic, such as keys pneumatic, grinders etc. in order to lubrication tools mist oil. thanks to short way od lubricator for tools, ensured is fixed supply oil. level filling is always visible. such solution protects element internal against corrosion and reduces wear cooperating element. mist oil formed is through flowing stream air. dosing oil is already set factory and is ok. 50 mm 3 on 1m 3 flow. one dose is enough on ok. 10 hours at flow capacity 109 l/min. oil (index: EW-583) should order separately. maximum Working pressure: 8 bar (recommended 6.2 bar). Operating temperature: od -5°C up to +60°C. Material: NBR (sealing), aluminum (housing), acetal (reservoir).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EW-31710	Mini grease gun, female/male 1/4" BSP	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Mini Grease nipple Intended for direct connection for tools pneumatic, such as keys pneumatic, grinders etc. in order to lubrication tools mist oil. thanks to short way od lubricator for tools, ensured is fixed supply oil. level filling is always visible. such solution protects element internal against corrosion and reduces wear cooperating element. mist oil formed is through flowing stream air. dosing oil is already set factory and is ok. 50 mm 3 on 1m 3 flow. one dose is enough on ok. 10 hours at flow capacity 109 l/min. oil (index: EW-583) should order separately. maximum Working pressure: 8 bar (recommended 6.2 bar). Operating temperature: od -5°C up to +60°C. Material: NBR (sealing), aluminum (housing), acetal (reservoir).
