Is the PERROT lever connector plug with PN 10 flange, carbon steel, KVF suitable for installation in wastewater treatment plants and groundwater drainage at pressures up to 10 bar?

Yes. The PERROT lever connector plug with PN 10 flange, carbon steel, KVF Format is suitable for installation in wastewater treatment plants and groundwater drainage at pressures up to 10 bar. The product description explicitly lists groundwater drainage and wastewater treatment plants among its typical applications and specifies a working pressure of up to 10 bar. Its carbon steel, galvanized construction is appropriate for these infrastructure uses, provided that site-specific factors (media chemistry, temperature, required corrosion resistance, and local standards) are compatible with galvanized carbon steel. If aggressive chemicals or higher corrosion resistance are expected, consider additional protective measures or alternative materials.

Can the PERROT lever connector plug with PN 10 flange, carbon steel, KVF be used in road and tunnel drainage systems exposed to corrosive conditions?

Yes-with reservations. The PERROT lever connector plug with PN 10 flange, carbon steel, KVF is widely used in road and tunnel building, groundwater drainage, wastewater treatment and similar applications, and its carbon steel construction is galvanized for corrosion protection. For general drainage duties in less aggressive environments it is suitable. However, in highly corrosive conditions (e.g., exposure to chloride-rich de-icing salts, aggressive chemical effluents, prolonged tidal/saline contact or acidic soils) galvanized carbon steel may corrode prematurely. For such aggressive environments consider stainless steel or additional protective coatings and confirm compatibility with site-specific chemical and service conditions and maintenance regimes before selection.

Does the PERROT lever connector plug with PN 10 flange, carbon steel, KVF require special maintenance in agricultural or horticultural environments?

Yes. The PERROT lever connector plug with PN 10 flange, carbon steel, KVF requires some specific maintenance when used in agricultural or horticultural environments to ensure long service life and reliable operation: - Corrosion protection: Although galvanized, carbon steel can still corrode in aggressive soils, fertilizers, manure, acidic irrigation water or saline conditions. Regular visual inspections for coating damage, rust or pitting are recommended. Touch up damaged galvanizing or apply suitable protective coatings where needed. - Cleaning: Remove dirt, plant debris, sediment and organic residues that can hold moisture and accelerate corrosion or obstruct the sealing surfaces. Periodic rinsing or washing, especially after exposure to slurry, fertilizers or muddy conditions, helps maintain function. - Fasteners and flange faces: Check bolts, nuts and flange faces for tightness, wear and corrosion. Re-torque flange bolts to the recommended values after thermal cycling or heavy service. Replace corroded fasteners with suitable galvanized or stainless alternatives if necessary. - Seals and seating surfaces: Inspect the plug sealing surface and gasket for wear, cuts or chemical degradation from fertilizers or agrochemicals. Replace gaskets/seals showing deterioration to maintain leak-tightness at working pressure up to 10 bar. - Lubrication and moving parts: If the lever mechanism or any mechanical parts are exposed to contaminants, clean and apply appropriate lubricants to prevent sticking and ensure smooth operation. - Frost and freeze protection: In climates with freezing temperatures, drain or protect the connector to avoid ice damage to the valve and flange joint. - Periodic pressure testing: Perform leak tests after installation and periodically during service, especially in critical drainage or wastewater applications. Following these routine inspections and preventive actions will minimize downtime and extend the life of the PERROT lever connector plug with PN 10 flange, carbon steel, KVF in agricultural and horticultural settings.

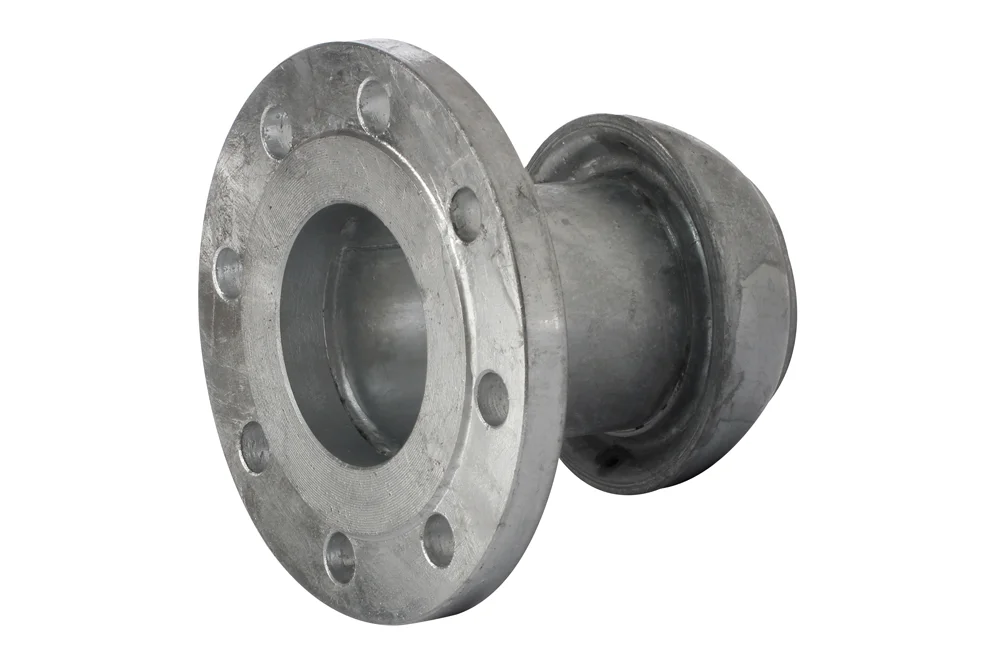

A PERROT lever coupling plug with a flange PN 10, steel carbon, KVF

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

A PERROT lever coupling plug with a flange PN 10 with wide application, among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel carbon, galvanized. Working pressure: up to 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HC-KVF-050-050	Plug KVF 50 mm with a flange DN 50, galvanized steel	-	10	In stock	Enquiry
HC-KVF-070-065	Plug KVF 70 mm with a flange DN 65, galvanized steel	-	10	In stock	Enquiry
HC-KVF-089-080	Plug KVF 89 mm with a flange DN 80, galvanized steel	-	10	In stock	Enquiry
HC-KVF-108-100	Plug KVF 108 mm with a flange DN 100, galvanized steel	-	10	In stock	Enquiry
HC-KVF-133-125	Plug KVF 133 mm with a flange DN 125, galvanized steel	-	10	In stock	Enquiry
HC-KVF-159-150	Plug KVF 159 mm with a flange DN 150, galvanized steel	-	10	In stock	Enquiry
HC-KVF-216-200	Plug KVF 216 mm with a flange DN 200, galvanized steel	-	8	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A PERROT lever coupling plug with a flange PN 10 with wide application, among others in agriculture, horticulture, industry, construction, road and tunnel building, groundwater drainage, sewage treatment plants, wastewater discharge, and environmental protection. Material: steel carbon, galvanized. Working pressure: up to 10 bar.
