Is the Plug cap for LAUX 42 lever connector, stainless steel, KXM suitable for liquids up to 12.5 bar and air up to 8 bar with EPDM sealing?

Yes. The Plug cap for LAUX 42 lever connector, stainless steel, KXM with EPDM sealing is specified for maximum working pressures of 12.5 bar for liquids and 8 bar for air, so it is suitable for those conditions. Ensure compatibility of EPDM with the specific liquid or gas in your application and verify installation and operating temperature limits to maintain seal performance.

Can Plug cap for LAUX 42 lever connector, stainless steel, KXM withstand chemical media at 12.5 bar (liquids) with EPDM sealing?

Yes - Plug cap for LAUX 42 lever connector, stainless steel, KXM with EPDM sealing can withstand chemical media at 12.5 bar (liquids) only if the specific chemical is compatible with EPDM and AISI 316 stainless steel. The productâs maximum working pressure for liquids is 12.5 bar, so mechanically it is rated for that pressure. However, EPDM is resistant to water, steam, many alcohols and glycols, diluted acids and alkalis, but it is not resistant to many hydrocarbons, oils, ketones, aromatic hydrocarbons, and certain strong acids/oxidizers. AISI 316 offers good corrosion resistance but may be attacked by chlorides and strong acids. Before use, verify chemical compatibility of both EPDM and AISI 316 with the specific media, temperature and exposure duration; if incompatible, choose a different sealing material or construction.

Does the Plug cap for LAUX 42 lever connector, stainless steel, KXM provide reliable EPDM sealing for pneumatic systems up to 8 bar?

Yes. The Plug cap for LAUX 42 lever connector, stainless steel, KXM Format uses EPDM sealing and is specified for a maximum working pressure of 8 bar for air, so it is designed to provide reliable EPDM sealing for pneumatic systems up to that pressure. EPDM is well suited to many pneumatic applications (good resistance to water, steam, dilute acids/alkalis and many polar solvents) and the productâs rating explicitly limits air service to 8 bar, which should be respected for safe, long-term performance. For higher pressures, aggressive media, or unusual temperature ranges, verify compatibility with EPDM and consider alternative seals or higher-rated components.

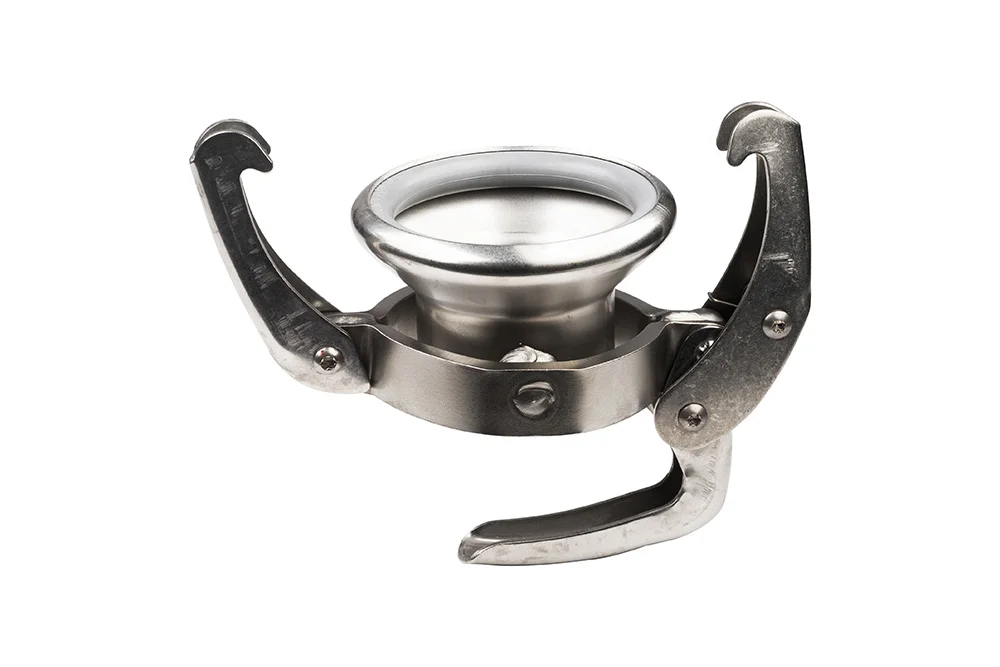

Plug cap for LAUX 42 lever connector, stainless steel, KXM

All products, Lever couplings/

Additional information

Material	SS – stainless steel

Plug cap for LAUX 42 lever connector. Material: AISI 316 steel. Sealing: EPDM. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TF-KXM-038-SS	KXM plug cap 38 mm, AISI 316	-	12.5	In stock	Enquiry
TF-KXM-048-SS	Plug cap KXM 48 mm, AISI 316	-	12.5	In stock	Enquiry
TF-KXM-076-SS	KXM plug cap 76 mm, AISI 316	-	12.5	In stock	Enquiry
TF-KXM-102-SS	KXM plug blind cap 102 mm, AISI 316	-	12.5	In stock	Enquiry
TF-KXM-133-SS	KXM plug blind cap 133 mm, AISI 316	-	12.5	In stock	Enquiry
TF-KXM-152-SS	KXM plug blind cap 152 mm, AISI 316	-	12.5	In stock	Enquiry
TF-KXM-204-SS	KXM plug blind cap 204 mm, AISI 316	-	12.5	In stock	Enquiry
