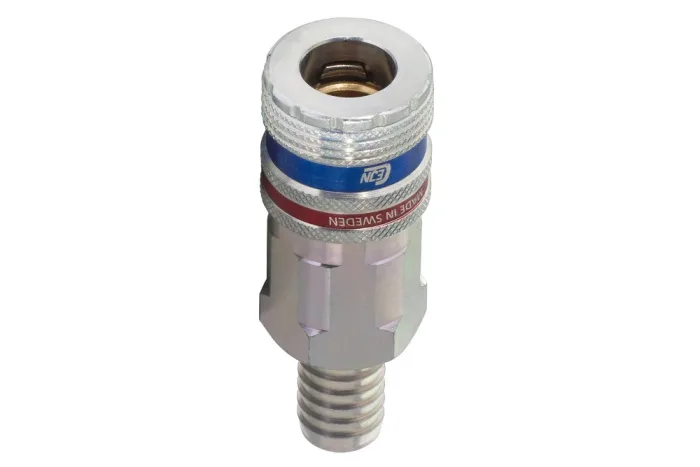

Socket for pneumatic quick-release coupling DN10.4 with valve, with hose socket, carbon steel, CEJN 410 ESAFE

Q: Does the Socket for pneumatic quick-release coupling DN10.4 with valve, with hose socket, carbon steel, CEJN 410 ESAFE allow disconnection under residual pressure without recoil risk?

Yes. The Socket for pneumatic quick-release coupling DN10.4 with valve, with hose socket, carbon steel, CEJN 410 ESAFE Format allows disconnection without residual-pressure recoil risk. The ESAFE version is explicitly designed for disconnection only when the line is depressurized (disconnection without pressure to avoid the risk of recoil) and is compliant with ISO 4414 and EN 983. It features an internal valve that prevents pressurized air from escaping during uncoupling, enabling one-handed operation with minimal force and safe separation even if upstream pressure exists. Operating parameters: DN10 Eurostandard, working pressure 16 bar, flow rate 4000 l/min (Pe=6 bar, Îp=0.5 bar), brass/zinc-coated steel construction, NBR sealing, temperature range -20Â°C to +100Â°C.

Q: Is the Socket for pneumatic quick-release coupling DN10.4 with valve, with hose socket, carbon steel, CEJN 410 ESAFE compatible with standard DN10 hoses?

Yes. The Socket for pneumatic quick-release coupling DN10.4 with valve, with hose socket, carbon steel, CEJN 410 ESAFE Format is compatible with standard DN10 hoses. It is manufactured according to Eurostandard DN10 (DN10.4), has a hose fitting designed for DN10 hose connection, and operates at typical pneumatic parameters (working pressure 16 bar, flow rate 4000 l/min at Pe=6 bar) using standard NBR sealing suitable for pneumatic hoses. Ensure the hose inner diameter and fitting type match DN10 (10 mm nominal) and verify thread/type of the hose end if your hose uses a specific coupling or metric/ BSP/other thread to guarantee a proper mechanical fit.

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2

CEJN DN10.4 quick coupling socket in ESAFE version (disconnection without pressure to avoid the risk of recoil, compliant with ISO 4414 and EN 983 standards) with hose fitting. Versatile use in the industry, mainly in pneumatic installations. Operated with one hand with minimal force required for connection. Manufactured according to Eurostandard DN10. Working pressure: 16 bar. Flow rate: 4000 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/zinc-coated steel. Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CJ-104102003	CEJN 410 ESAFE quick coupling socket, for 8 mm hose	8	16	In stock	Enquiry
CJ-104102004	CEJN 410 ESAFE quick coupling socket, for 10 mm hose	10	16	In stock	Enquiry
CJ-104102005	CEJN 410 ESAFE quick coupling socket, for 13 mm hose	12	16	In stock	Enquiry
CJ-104102006	CEJN 410 ESAFE quick coupling socket, for 16 mm hose	16	16	In stock	Enquiry
CJ-104102007	CEJN 410 ESAFE quick coupling socket, for 19 mm hose	20	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CEJN DN10.4 quick coupling socket in ESAFE version (disconnection without pressure to avoid the risk of recoil, compliant with ISO 4414 and EN 983 standards) with hose fitting. Versatile use in the industry, mainly in pneumatic installations. Operated with one hand with minimal force required for connection. Manufactured according to Eurostandard DN10. Working pressure: 16 bar. Flow rate: 4000 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/zinc-coated steel. Sealing: NBR. Operating temperature: from -20°C to +100°C.
