Is the Pneumatic shut-off valve V2V L (hose - thread) suitable for use with oiled and non-oiled compressed air at 10 bar and -20Â°C to +60Â°C?

Yes. The Pneumatic shut-off valve V2V L (hose - thread) is specified for a working pressure of 10 bar and an operating temperature range of -20Â°C to +60Â°C, and its medium compatibility lists filtered compressed air, oiled or non-oiled. Therefore it is suitable for use with both oiled and non-oiled compressed air at 10 bar within the stated temperature range.

Can the Pneumatic shut-off valve V2V L (hose - thread) handle 10 bar pressure with a plug connection on one side and a threaded O-ring on the other?

Yes. The Pneumatic shut-off valve V2V L (hose - thread) is specified with a working pressure of 10 bar and is designed as a two-position, two-way valve with a plug connection on one side and a threaded connection with an O-ring on the other (hose - thread). It is rated for operation from â20Â°C to +60Â°C and for filtered compressed air (oiled or non-oiled). Under those specified conditions and with proper installation and compatible fittings/sealing, it can handle 10 bar.

Does the Pneumatic shut-off valve V2V L (hose - thread) require filtration level limits for reliable operation at 10 bar?

Pneumatic shut-off valve V2V L (hose - thread) specifies its medium as "filtered compressed air, oiled or non-oiled" and a working pressure of 10 bar. For reliable operation at this pressure, proper air filtration is recommended to prevent particulate contamination and protect internal seals and moving parts. Typical industry practice for pneumatic valves of this type is to use filtration down to 40 Î¼mâ5 Î¼m depending on system cleanliness and whether lubricated air is used; a common and safe recommendation is a 5â25 Î¼m filter element for general-purpose compressed air systems. If the system supplies lubricated air, coarser filtration (e.g., 25 Î¼m) may be acceptable; for non-oiled, dry air or high-cycle applications, finer filtration (5â10 Î¼m) improves reliability and lifetime. Additionally, incorporate a water separator or coalescing filter to remove condensate and oil aerosols, and a particulate filter upstream of the Pneumatic shut-off valve V2V L (hose - thread). Regular maintenance and filter element replacement are important to maintain performance at 10 bar.

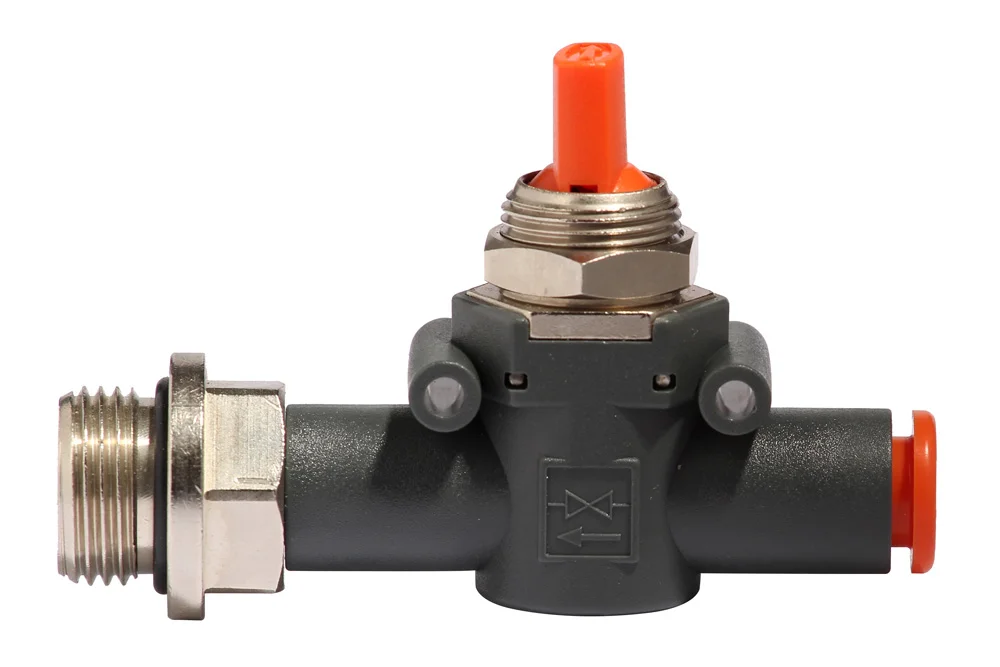

Pneumatic shut-off valve V2V L (hose – thread)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

Shut-off valve type V2V L, two-position, two-way, in a version with a push-in connection on one side and a threaded connection with an O-ring on the other (hose – thread). Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9065208	Shut-off valve V2V L, hose 6 mm - 1/8" BSP male (outlet)	-	10	In stock	Enquiry
MW-9065209	Shut-off valve V2V L, hose 6 mm - 1/4" BSP male (outlet)	-	10	In stock	Enquiry
MW-9065210	Shut-off valve V2V L, hose 8 mm - 1/8" BSP male (outlet)	-	10	In stock	Enquiry
MW-9065211	Shut-off valve V2V L, hose 8 mm - 1/4" BSP male (outlet)	-	10	In stock	Enquiry
MW-9065212	Shut-off valve V2V L, hose 8 mm - 3/8" BSP male (outlet)	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Shut-off valve type V2V L, two-position, two-way, in a version with a push-in connection on one side and a threaded connection with an O-ring on the other (hose – thread). Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or non-oiled.
