Is the Pneumatic quick drain valve with silencer VSR L (line - thread) suitable for continuous use at 10 bar and temperatures from -20Â°C to +60Â°C?

Yes. The Pneumatic quick drain valve with silencer VSR L (line - thread) is specified for a working pressure of 10 bar and an operating temperature range of -20Â°C to +60Â°C, and is intended for use with filtered compressed air (oiled or un-oiled). Based on those specifications, it is suitable for continuous use at 10 bar within the stated temperature range, provided installation and maintenance follow manufacturer recommendations and the supply air is properly filtered. Ensure the O-ring and silencer remain compatible with your specific operating environment and any contaminants present; if conditions deviate (pressure spikes above 10 bar, temperatures outside the stated range, corrosive media, or heavy particulate contamination), continuous use may require additional protection or a different valve.

Can the Pneumatic quick drain valve with silencer VSR L (line - thread) be used with both oiled and un-oiled filtered compressed air?

Yes. The Pneumatic quick drain valve with silencer VSR L (line - thread) is specified for use with filtered compressed air, both oiled and un-oiled. Operating parameters: up to 10 bar and -20Â°C to +60Â°C; it features a plug connection on one side and a threaded connection with an O-ring on the other (hose - thread) and an integrated silencer for discharge. Ensure the air is properly filtered and within the stated pressure/temperature limits for reliable operation.

Does the Pneumatic quick drain valve with silencer VSR L (line - thread) include an integrated silencer for noise reduction?

Yes. The Pneumatic quick drain valve with silencer VSR L (line - thread) features a silenced discharge using an integrated silencer, providing noise reduction during drain operation. It has a plug connection on one side and a threaded connection with an O-ring on the other (hose - thread), is rated to 10 bar, operates from -20Â°C to +60Â°C, and is suitable for filtered compressed air, oiled or un-oiled.

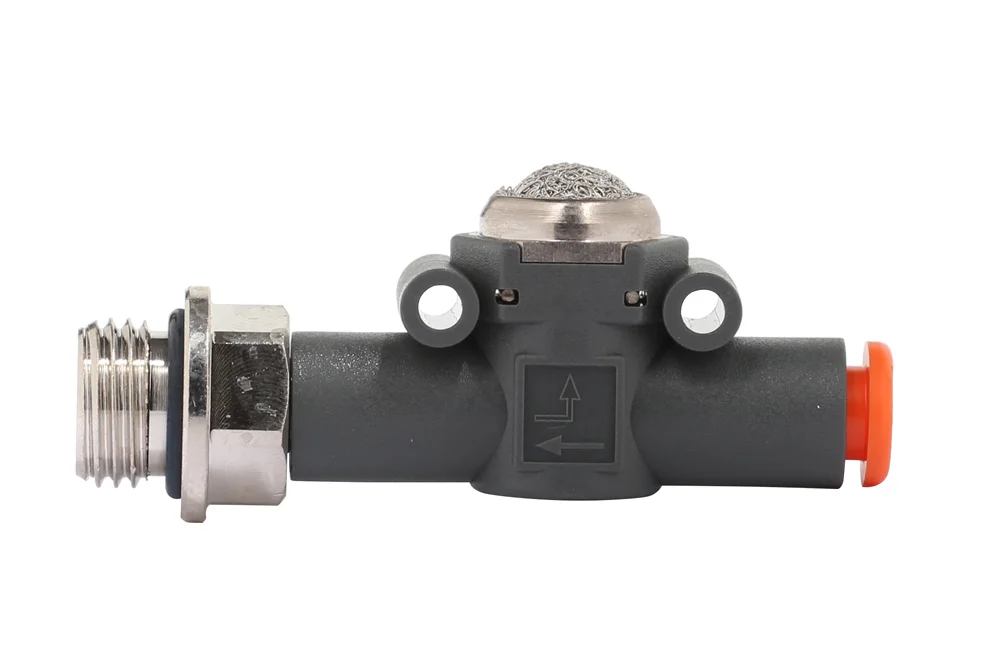

Pneumatic quick drain valve with silencer VSR L (line – thread)

All products, Functional fittings/

Additional information

Material	P – material (plastic)

VSR L type quick release valve with a plug connection on one side and a threaded connection with an O-ring on the other side (hose – thread), silenced discharge using an integrated silencer. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or un-oiled.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9063301	VSR L quick release valve, 4 mm hose - GZ M5 (outlet) - discharge with silencer	-	10	In stock	Enquiry
MW-9063302	VSR L quick release valve, 4 mm hose - GZ BSP 1/8" (outlet) - discharge with silencer	-	10	In stock	Enquiry
MW-9063308	VSR L quick release valve, 6 mm hose - GZ BSP 1/8" (outlet) - discharge with silencer	-	10	In stock	Enquiry
MW-9063309	VSR L quick release valve, 6 mm hose - GZ BSP 1/4" (outlet) - discharge with silencer	-	10	In stock	Enquiry
MW-9063310	VSR L quick release valve, 8 mm hose - GZ BSP 1/8" (outlet) - discharge with silencer	-	10	In stock	Enquiry
MW-9063311	VSR L quick release valve, 8 mm hose - GZ BSP 1/4" (outlet) - discharge with silencer	-	10	In stock	Enquiry
MW-9063312	VSR L quick release valve, 8 mm hose - GZ BSP 3/8" (outlet) - discharge with silencer	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

VSR L type quick release valve with a plug connection on one side and a threaded connection with an O-ring on the other side (hose – thread), silenced discharge using an integrated silencer. Working pressure: 10 bar. Operating temperature: from -20°C to +60°C. Medium: filtered compressed air, oiled or un-oiled.
