Does the Hydraulic system pressure measuring set with connectors, without pressure gauges, 630 bar, type 750 KP include pressure gauges or must they be ordered separately?

The Hydraulic system pressure measuring set with connectors, without pressure gauges, 630 bar, type 750 KP does NOT include pressure gauges. The description states the set contains a plastic case sized for two 63 mm pressure gauges, DN2 hose (630 bar) with two GW M16x2 measuring ends (2000 mm), and the listed couplings, adapters and fittings, but pressure gauges must be selected and ordered separately.

Can the Hydraulic system pressure measuring set with connectors, without pressure gauges, 630 bar, type 750 KP be used for both hydraulic and pneumatic diagnostics?

Yes. The Hydraulic system pressure measuring set with connectors, without pressure gauges, 630 bar, type 750 KP is designed for diagnostics of both hydraulic and pneumatic systems by measuring static, dynamic and vacuum pressure. It includes high-pressure DN2 hose (630 bar), a range of couplings and adapters (M16x2 measuring couplings with various thread interfaces, connections to pressure gauges, and reducing adapters) and a protective case. Pressure gauges are not included and must be selected separately. Materials (steel with zinc-nickel coating) and NBR sealing support operation up to 630 bar.

What materials and sealing are used in the Hydraulic system pressure measuring set with connectors, without pressure gauges, 630 bar, type 750 KP?

Hydraulic system pressure measuring set with connectors, without pressure gauges, 630 bar, type 750 KP Couplings material: steel with a zincânickel coating. Sealing: NBR (nitrile rubber). Working pressure: up to 630 bar.

Hydraulic system pressure measurement set with couplings, without pressure gauges, 630 bar, type 750 KP

All products, Measurement sets/

Additional information

Material	P – material (plastic)

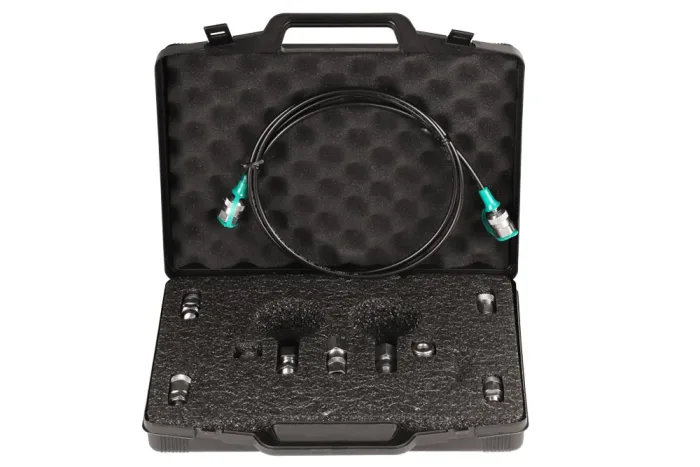

The measurement set is intended for diagnosing hydraulic and pneumatic systems by measuring static and dynamic pressure and vacuum. The set contains a plastic case with prepared spaces for two 63 mm pressure gauges, a DN2 (630 bar) hose with two measuring ends M16x2 female thread, 2000 mm long, as well as couplings and adapters: 1. Measurement coupling M16x2 with metal cap, with 1/4″ BSP male thread, type E – 2 pcs. 2. Measurement coupling M16x2 with metal cap, with M8x1 male thread, type F – 1 pc. 3. Measurement coupling M16x2 with metal cap, with M10x1 male thread, type F – 1 pc. 4. Connection with 1/4″ BSP female thread to the pressure gauge, bulkhead, with M16x2 male thread – 2 pcs. 5. Connection with 1/4″ BSP female thread to the pressure gauge, with M16x2 female thread – 1 pc. 6. Reducing adapter 3/8″ BSP male / M10x1 female thread, type E – 1 pc. 7. Reducing adapter 1/2″ BSP male / M10x1 female thread, type E – 1 pc. The set does not include pressure gauges, which must be selected and ordered separately. Coupling material: steel with zinc-nickel coating. Sealing: NBR. Working pressure: up to 630 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
PS-750-KP2	Measurement set 750 KP2 (large, without pressure gauges)	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The measurement set is intended for diagnosing hydraulic and pneumatic systems by measuring static and dynamic pressure and vacuum. The set contains a plastic case with prepared spaces for two 63 mm pressure gauges, a DN2 (630 bar) hose with two measuring ends M16x2 female thread, 2000 mm long, as well as couplings and adapters: 1. Measurement coupling M16x2 with metal cap, with 1/4″ BSP male thread, type E – 2 pcs. 2. Measurement coupling M16x2 with metal cap, with M8x1 male thread, type F – 1 pc. 3. Measurement coupling M16x2 with metal cap, with M10x1 male thread, type F – 1 pc. 4. Connection with 1/4″ BSP female thread to the pressure gauge, bulkhead, with M16x2 male thread – 2 pcs. 5. Connection with 1/4″ BSP female thread to the pressure gauge, with M16x2 female thread – 1 pc. 6. Reducing adapter 3/8″ BSP male / M10x1 female thread, type E – 1 pc. 7. Reducing adapter 1/2″ BSP male / M10x1 female thread, type E – 1 pc. The set does not include pressure gauges, which must be selected and ordered separately. Coupling material: steel with zinc-nickel coating. Sealing: NBR. Working pressure: up to 630 bar.
