Hydraulic system pressure measuring set without fittings and gauges, 630 bar, type 750 KP

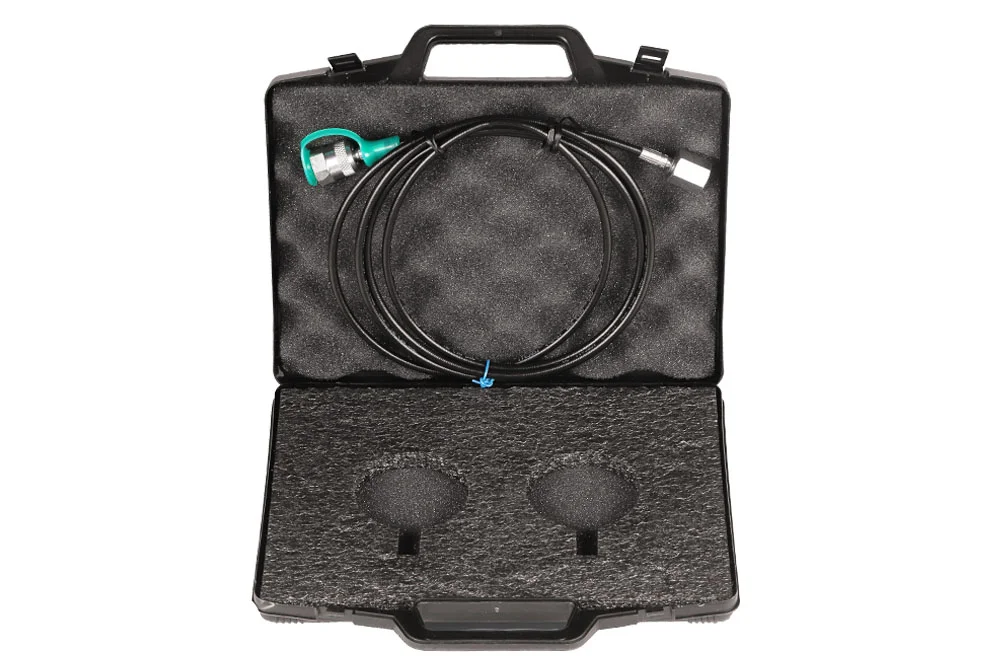

The basic measurement set is intended for the diagnostics of hydraulic and pneumatic systems through the measurement of static, dynamic, and vacuum pressure. The set includes a plastic case with designated spaces for two 63 mm pressure gauges and a DN2 (630 bar) hose with fittings: measuring GW M16x2 and for the gauge GW 1/4” BSP, with a length of 2000 mm. The set does not include pressure gauges, which must be selected and ordered separately. Material of the hose fittings: steel with a zinc-nickel coating. Working pressure: up to 630 bar.
Do you need a larger quantity of products or a bespoke quote?
The basic measurement set is intended for the diagnostics of hydraulic and pneumatic systems through the measurement of static, dynamic, and vacuum pressure. The set includes a plastic case with designated spaces for two 63 mm pressure gauges and a DN2 (630 bar) hose with fittings: measuring GW M16x2 and for the gauge GW 1/4” BSP, with a length of 2000 mm. The set does not include pressure gauges, which must be selected and ordered separately. Material of the hose fittings: steel with a zinc-nickel coating. Working pressure: up to 630 bar.
Additional information
| Material | P – material (plastic) |
|---|
