Is the Pressure washer gun with GZ outlet M22x1.5, SG35 suitable for both hot and cold water up to 160Â°C and rated to 310 bar working pressure?

Yes. Pressure washer gun with GZ outlet M22x1.5, SG35 is suitable for both hot and cold water up to 160Â°C and is rated for working pressures up to 310 bar. The product description specifies suitability for hot and cold water, an operating temperature up to +160Â°C, and a working pressure rating of up to 310 bar (maximum pressure 350 bar).

Does the Pressure washer gun with GZ outlet M22x1.5, SG35 include a swivel connection for easier installation?

Yes. The Pressure washer gun with GZ outlet M22x1.5, SG35 includes a swivel connection for easier installation.

How do I replace seals or perform basic maintenance on the Pressure washer gun with GZ outlet M22x1.5, SG35?

Pressure washer gun with GZ outlet M22x1.5, SG35. basic maintenance and seal replacement 1. Safety first - Depressurize system and disconnect hose from water and power sources. - Allow gun to cool if used with hot water (operating temp up to +160Â°C). - Wear gloves and eye protection. 2. Tools and materials - Replacement seals compatible with SG35 (O-rings for inlet/outlet and swivel). - Appropriate wrenches for M22x1.5 connections. - Lubricant approved for high-pressure seals and hot-water use. - Clean cloths, small pick or seal remover. 3. Disassembly - Unscrew the swivel connection from the outlet, holding the housing steady. - Remove any retaining nut or collar at the inlet/outlet thread M22x1.5. - Carefully extract the old O-rings/seals from the groove(s) using a pickâavoid scratching sealing surfaces. - If disassembling internal lever/valve parts, note orientation; the SG35 lever mechanism is designed for low operator effort so parts are straightforward but observe spring and valve positions. 4. Inspection and cleaning - Inspect threads (M22x1.5), swivel surfaces, valve seat and bore for wear, nicks or corrosion. - Clean all sealing surfaces, grooves and threads with a lint-free cloth. - Replace any parts that show damage; do not reuse deformed seals. 5. Seal replacement and lubrication - Lightly coat new O-rings/seals with the approved lubricant to ease installation and protect seals at high temperature. - Fit seals into correct grooves, ensuring they sit evenly and are not twisted. 6. Reassembly - Reassemble components in reverse order. Tighten the swivel and threaded connections securely but avoid over-torquing plastic housing areas. - Ensure correct engagement of the M22x1.5 thread and that the swivel rotates smoothly without binding. 7. Leak test and function check - Reconnect to water supply, slowly pressurize and check all joints and seals for leaks. - Operate the lever to confirm comfortable, normal action and full shutoff at rest. - If leaks persist, depressurize and re-check seal seating and part condition. 8. Routine maintenance tips - Periodically inspect seals and swivel for wear, especially when used near max working pressure (310 bar) or max temp. - Keep threads and swivel clean and lightly lubricated. - Replace seals at first sign of deterioration to avoid damage at high pressures. For complex internal repairs or if internal valve parts are damaged, consult manufacturer or a qualified service technician to preserve safety and performance.

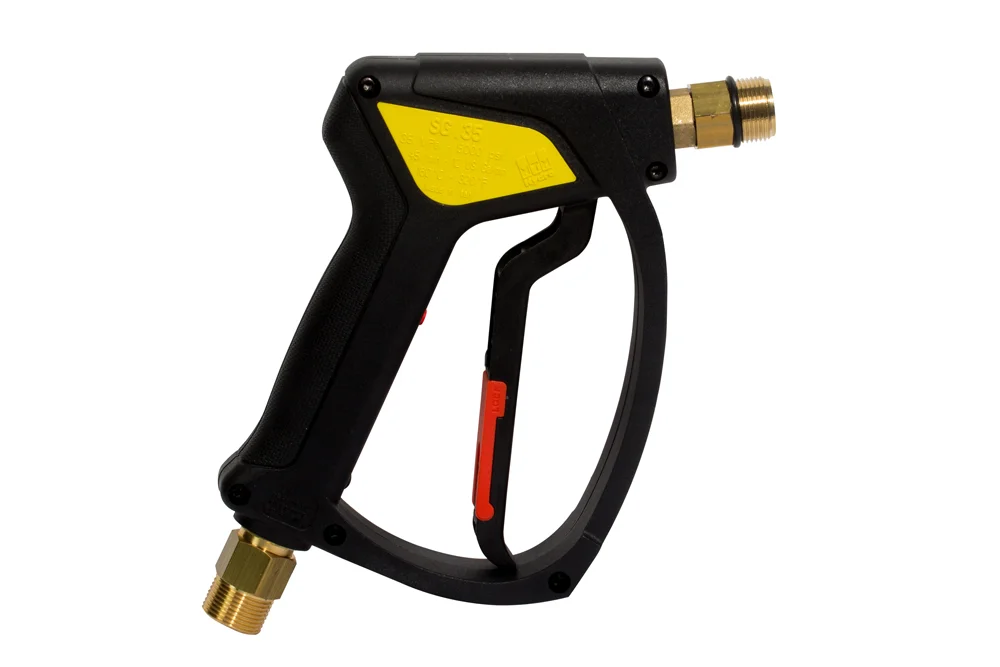

Gun for washer pressure with outlet M22x1.5 male, SG35

All products, Guns for high-pressure washers/

Additional information

Standard length [m]	10

The high-pressure SG35 water gun for industrial applications. Suitable for warm and cold water. The lever mechanism does not require the operator to use much force, which translates into comfortable and pleasant work. part outlet terminated a thread external metric M22x1.5. Gun equipped is in swivel Connection for installations. Housing material: high-strength plastic. Working pressure: up to 310 bar. pressure The permissible: 350 bar. Flow rate: 45 l/min. Operating temperature: up to +160°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MH-1010020162	Gun for water SG35 with an outlet M22x1.5 male, inlet M22x1.5 male swivel	-	310	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The high-pressure SG35 water gun for industrial applications. Suitable for warm and cold water. The lever mechanism does not require the operator to use much force, which translates into comfortable and pleasant work. part outlet terminated a thread external metric M22x1.5. Gun equipped is in swivel Connection for installations. Housing material: high-strength plastic. Working pressure: up to 310 bar. pressure The permissible: 350 bar. Flow rate: 45 l/min. Operating temperature: up to +160°C.
