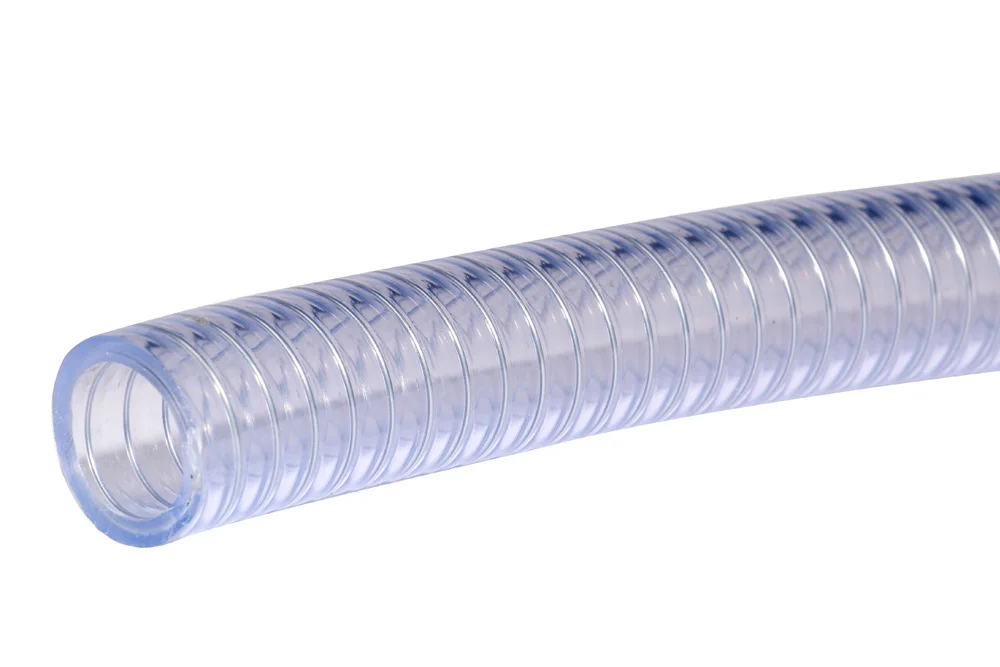

PVC hose for food substances reinforced with steel wire spiral SPIRE ACIER

Additional information

Material

PVC – polyvinyl chloride

Maximum operating temperature [°C]

60

Minimum operating temperature [°C]

-15

Vacuum resistance

yes

Standard length [m]

20, 30

Reinforcement

steel spiral

Lightweight, highly flexible suction and discharge hose designed for the transfer of water, juices, beverages, and other food products at temperatures up to +40°C. The absence of phthalates in the hose material makes it suitable for the transfer of milk and its derivatives, as well as alcohols with concentrations up to 50% and temperatures up to +40°C. Not recommended for oils and fatty food substances. Reinforcement with a steel wire spiral embedded in a soft PVC wall provides good resistance to vacuum and hose collapse. The smooth inner wall reduces flow losses and ensures ease of cleaning. The transparent wall resistant to UV radiation allows for easy visual monitoring of flow. In applications not involving direct contact with food (in industry, construction, agriculture), it can be used: 1) for light chemicals, water, sludges, and wastewater, other liquids (without fats, oils, and hydrocarbons); 2) for air, vacuum transfer of dust, powders, granules, and other lightly abrasive bulk materials (non-fatty). Abrasiveness and potential static electricity issues should be considered. As a hose reinforced only with a steel spiral (without a braid), it exhibits some elongation under pressure, which should be taken into account in applications, especially at temperatures above +40°C. Standards and requirements: Food industry, contact with food: compliant with European regulations 1935/2004/EC and 10/2011/EU (simulants A, B, C, and D1), 2023/2006/EC (GMP). Hose material: transparent PVC. Reinforcement: galvanized steel spiral. Working pressure: from 2 bar to 12 bar, depending on the hose diameter. Vacuum: 0.9 bar. Operating temperature: from -15°C to +60°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TR-SPIREACIER-010SPIRE STEEL hose 10x15.5 mm1012In stock
Enquiry
TR-SPIREACIER-012SPIRE STEEL Hose 12x17 mm1211.5In stock
Enquiry
TR-SPIREACIER-014SPIRE STEEL Hose 14x20 mm1411In stock
Enquiry
TR-SPIREACIER-016SPIRE STEEL Hose 16x22 mm1610.5In stock
Enquiry
TR-SPIREACIER-018SPIRE STEEL hose 18x25 mm1810In stock
Enquiry
TR-SPIREACIER-020SPIRE STEEL Hose 20x27 mm2010In stock
Enquiry
TR-SPIREACIER-025SPIRE STEEL Hose 25x33 mm259.5In stock
Enquiry
TR-SPIREACIER-030SPIRE STEEL hose 30x38 mm309In stock
Enquiry
TR-SPIREACIER-032SPIRE STEEL hose 32x40 mm329In stock
Enquiry
TR-SPIREACIER-035SPIRE ACIER hose 35x44 mm358In stock
Enquiry
TR-SPIREACIER-038SPIRE STEEL hose 38x46 mm387.5In stock
Enquiry
TR-SPIREACIER-040SPIRE STEEL hose 40x50 mm407.5In stock
Enquiry
TR-SPIREACIER-045SPIRE STEEL hose 45x55 mm456.5In stock
Enquiry
TR-SPIREACIER-050SPIRE ACIER hose 50x60.8 mm506In stock
Enquiry
TR-SPIREACIER-060SPIRE STEEL hose 60x72 mm605.5In stock
Enquiry
TR-SPIREACIER-070SPIRE STEEL Hose 70x83 mm705In stock
Enquiry
TR-SPIREACIER-076SPIRE ACIER hose 76x89.2 mm754In stock
Enquiry
TR-SPIREACIER-080SPIRE ACIER hose 80x93.2 mm803.5In stock
Enquiry
TR-SPIREACIER-090SPIRE STEEL hose 90x103.8 mm903In stock
Enquiry
TR-SPIREACIER-102SPIRE STEEL hose 102x117.6 mm1003In stock
Enquiry
TR-SPIREACIER-110SPIRE STEEL hose 110x125.2 mm1102.5In stock
Enquiry
TR-SPIREACIER-120SPIRE STEEL hose 120x135.2 mm1202.2In stock
Enquiry
TR-SPIREACIER-150SPIRE STEEL Hose 150x168 mm1502In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Lightweight, highly flexible suction and discharge hose designed for the transfer of water, juices, beverages, and other food products at temperatures up to +40°C. The absence of phthalates in the hose material makes it suitable for the transfer of milk and its derivatives, as well as alcohols with concentrations up to 50% and temperatures up to +40°C. Not recommended for oils and fatty food substances. Reinforcement with a steel wire spiral embedded in a soft PVC wall provides good resistance to vacuum and hose collapse. The smooth inner wall reduces flow losses and ensures ease of cleaning. The transparent wall resistant to UV radiation allows for easy visual monitoring of flow. In applications not involving direct contact with food (in industry, construction, agriculture), it can be used: 1) for light chemicals, water, sludges, and wastewater, other liquids (without fats, oils, and hydrocarbons); 2) for air, vacuum transfer of dust, powders, granules, and other lightly abrasive bulk materials (non-fatty). Abrasiveness and potential static electricity issues should be considered. As a hose reinforced only with a steel spiral (without a braid), it exhibits some elongation under pressure, which should be taken into account in applications, especially at temperatures above +40°C. Standards and requirements: Food industry, contact with food: compliant with European regulations 1935/2004/EC and 10/2011/EU (simulants A, B, C, and D1), 2023/2006/EC (GMP). Hose material: transparent PVC. Reinforcement: galvanized steel spiral. Working pressure: from 2 bar to 12 bar, depending on the hose diameter. Vacuum: 0.9 bar. Operating temperature: from -15°C to +60°C.
