Is the Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2 compatible with medical gas systems and safe for use up to 8.3 bar?

Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2 . based on the provided description . is intended for applications such as gas detection, medical devices, chemical analyzers and similar equipment, and its materials and ratings are: polypropylene body, EPDM sealing, working pressure up to 8.3 bar, and operating temperature 0Â°C to +71Â°C. However, compatibility with medical gas systems and safety for medical use depend on more than intended applications and basic material/pressure specs: medical gas systems typically require specific certifications (e.g., ISO 7396, ISO 9170-1, HTM/other national standards), biocompatibility, traceability, cleaning/sterilization compatibility, and resistance to medical gas chemicals. The description does not state any medical gas system certifications, biocompatibility testing, or regulatory approvals. Therefore, you cannot assume it is approved or safe for regulated medical gas systems solely from this description. For use in medical gas systems up to 8.3 bar, obtain manufacturer confirmation of relevant medical certifications and test reports (materials, leachables, microbial/sterilization compatibility), and ensure compliance with your applicable national standards before approving installation.

Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2

Q: Can the Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2 be autoclaved or sterilized for medical device use?

Based on the provided description, the Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2 is not suitable for standard autoclaving or high-temperature sterilization for medical device use. Materials specified-polypropylene body and EPDM sealing-with an operating temperature range of 0Â°C to +71Â°C and working pressure up to 8.3 bar-indicate limited heat resistance; typical steam autoclaving requires ~121â134Â°C and would exceed these limits, risking deformation, seal failure, loss of sealing integrity and audible-click function. For medical sterilization, consider components rated for autoclave temperatures or validated low-temperature sterilization methods (e.g., ethylene oxide) only after manufacturer confirmation of chemical compatibility and biocompatibility.

Q: Does the Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2 meet ISO medical gas fitting standards?

Based on the provided description, the Bulkhead socket for quick-connect hose coupling with nut and valve, polypropylene, PMC series DN 3.2 does not appear to meet ISO medical gas fitting standards. ISO standards for medical gas fittings (such as ISO 7396â1, ISO 9170â1 and specific connector standards) typically require precise materials, dimensions, identification, leakage and flow performance, and often metallic construction or biocompatible, sterilizable materials with specific sealing and safety features. The given product description emphasizes polypropylene construction, EPDM sealing, general-purpose applications (gas detection, medical devices, chemical analyzers, inkjet printing, optical equipment), a non-ball/non-sleeve quickâconnect design and working pressure/temperature ranges, but it does not state compliance with any ISO medical gas standards, certification, or medical-grade materials and markings. Without explicit certification or a manufacturer statement of conformity to the relevant ISO medical gas connector standards, you should assume it is not compliant for use in medical gas systems. For medical applications, request manufacturer documentation certifying conformance to the specific ISO standard(s) required for your jurisdiction before use.

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

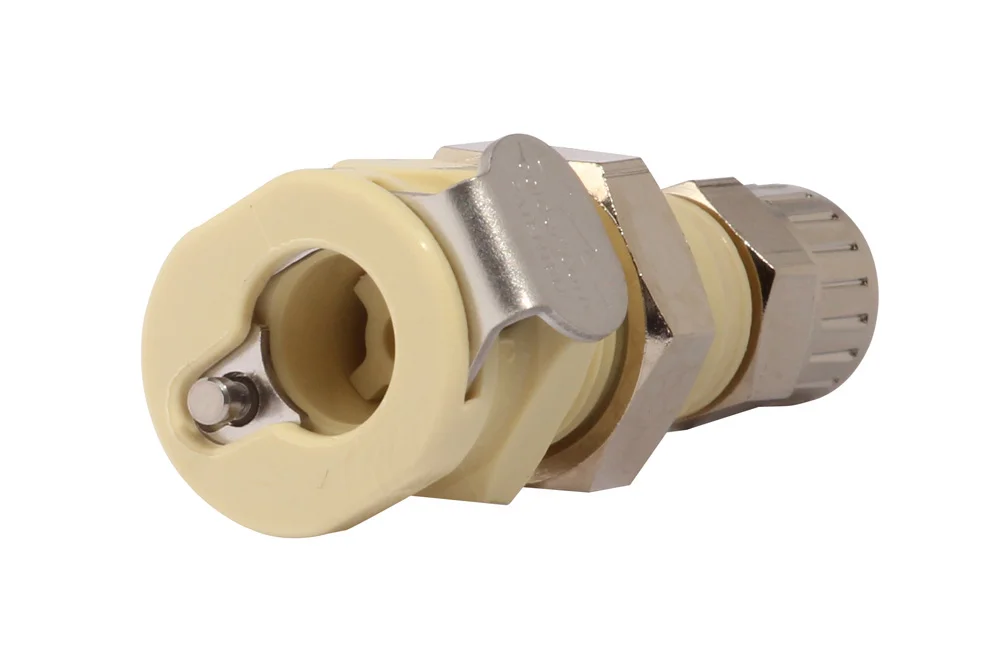

Quick-connect socket for hose with nut and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (does not contain balls and protective sleeves) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: polypropylene. Sealing: EPDM. Working pressure: up to 8.3 bar. Operating temperature: from 0°C to +71°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
CC-PMV-05-PP	PMC DN3.2 socket for hose 6.4x4.3 with nut, with valve, grooved, polypropylene	4	8.3

Quick-connect socket for hose with nut and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (does not contain balls and protective sleeves) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: polypropylene. Sealing: EPDM. Working pressure: up to 8.3 bar. Operating temperature: from 0°C to +71°C.
